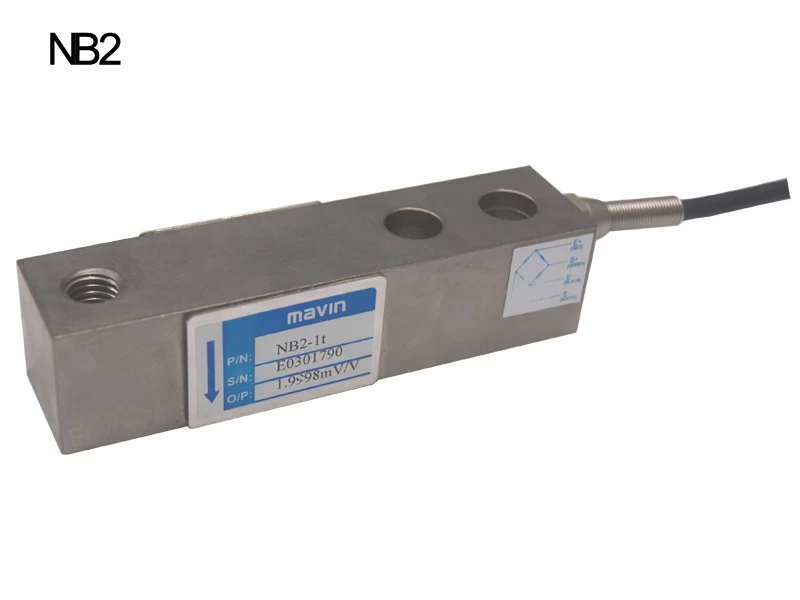

Shear beam load cell for floor scale NB2

NB2 shear beam load cells are designed specifically for high accuracy applications in tank and vessel weighing, filling systems, platform scales, bagging machinery, belt scales and conveyor systems. Our mavin single end beam load cell could completely be matched toToledo load cell, Zemic load cell or Keli load cell.



  • Protection ClassIP67 / IP68
  • Rated Output2.0 or 3.0mV/V
  • Dimension130*35.5*31.3mm
  • MaterialSteel Alloy
  • Capacities100-3000kg

Shear beam load cell for floor scale NB2 (100-3000 KG)

NB2 shear beam load cells are designed specifically for high accuracy applications in tank and vessel weighing, filling systems, platform scales, bagging machinery, belt scales and conveyor systems. Our mavin single end beam load cell could completely be matched toToledo load cell, Zemic load cell or Keli load cell.


Key Features

available in stainless steel, nickle plated steel alloy and anodised aluminum alloy

Capacity: 100-3000 kg

Rated output: 2.0 or 3.0mV/V


Usage & Applications

Hopper scales
Truck scales
Industrial weighing system

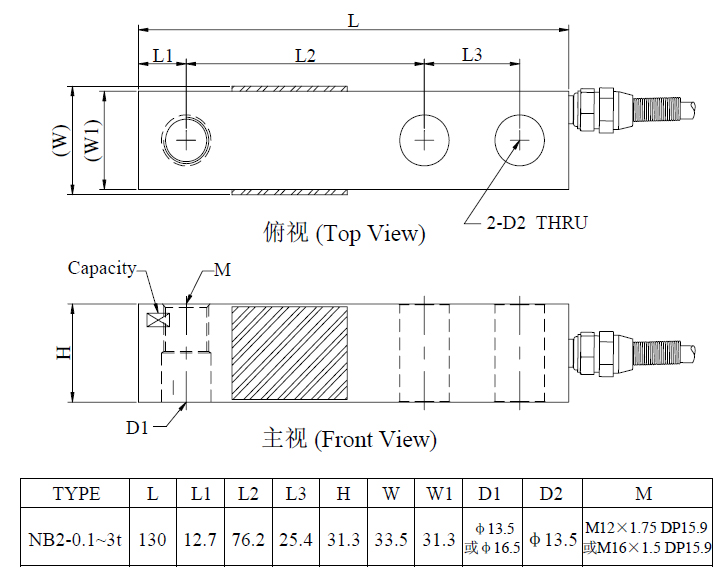

Dimensionshear beam load cell NB2

NB2 Specification

Rated Capacities

0.10.20.30.511.522.53(t)

Rated Output

2.0 mV/V±0.15%3.0 mV/V±0.15%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×3m(NB2)

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
