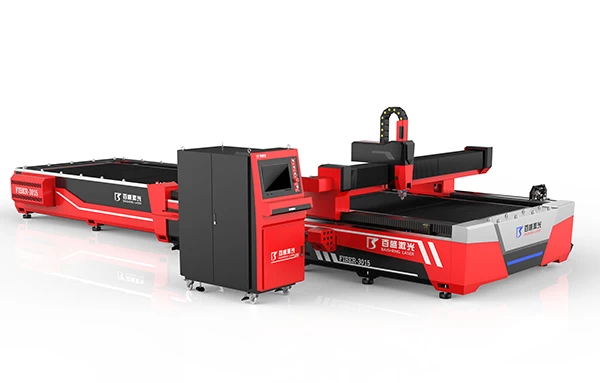

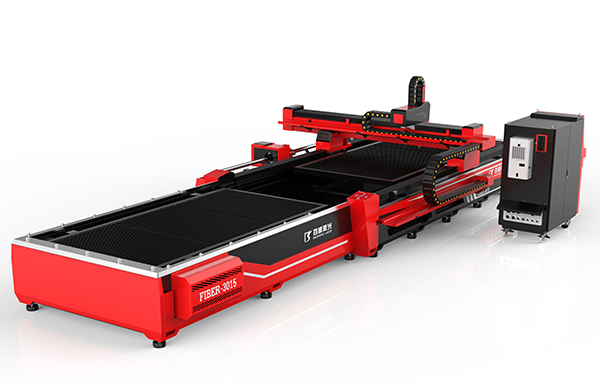

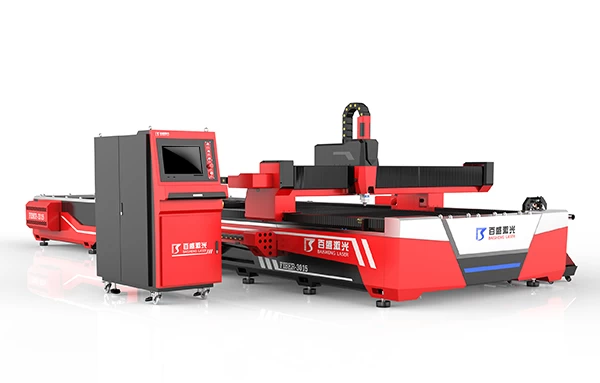

Sheet and Pipe Fiber Laser Machine With Shuttle Table For Sale

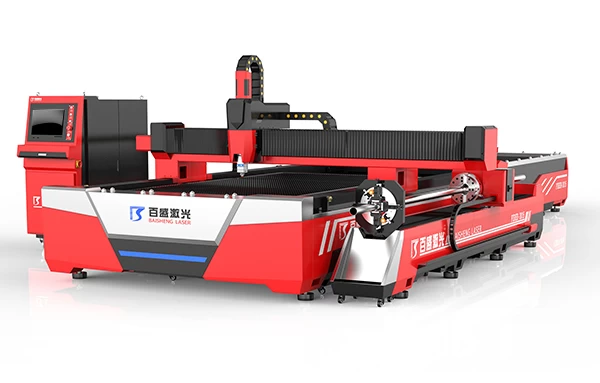

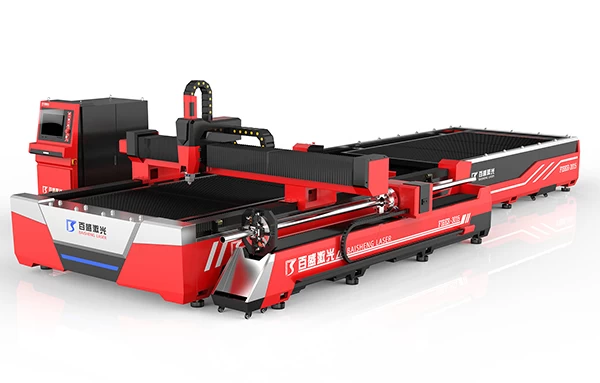

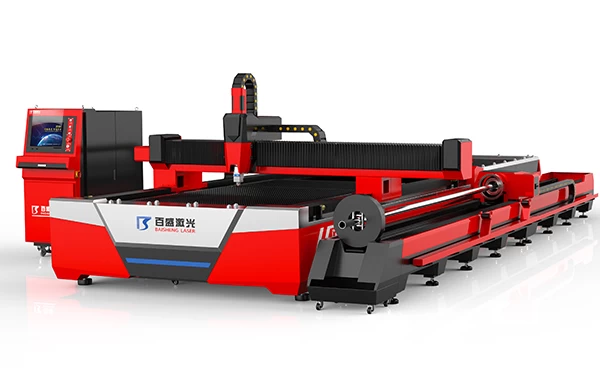

F3015HBE shuttle table Laser with pipe cutter is a flexible metal processing tool,fabricator is able to cut both sheet metal and pipe or tube on one machine.
The laser can save job shop floor space,furthermore fabricator can process both materials with less investment .
The 3M or 6M pipe cutter is equipped with advanced pneumatic control chuck ,effectively clamp round pipe ,square tube ,rectangle tube or a few profiles .
The whole machine can be packed and loaded in a 40 flat rack container.
Applicable: cutting pipes tubes and metal plates
warranty: 2 years for laser source.One year for machine .
Packaging & Delivery: Plastic film inside, export wooden case with iron tube outside.
Port: Shenzhen
Lead Time: 45 days after payment
Sheet and Pipe Fiber Laser Cutting Machine Product Description
Parameters of Baisheng Fiber Laser cutting Machine:
|
Brand and manufacturer
|
Baisheng, Guangzhou Baisheng Electron co.,ltd
|
|
Machine Model
|
F3015HBE
|
|
Dimension
|
8640*3680*1900mm
|
|
Laser power
|
Laser source powers:700W 750W 1000w 1500w 2KW
|
|
Machine net weight
|
9500KG
|
|
Fiber laser Generator
|
Raycus,IPG Brand,options
|
|
Laser wavelength
|
1080nm
|
|
Laser Beam quality
|
<0.373mrad
|
|
Worktable
|
Sawtooth with pneumatic easy moving attachment
|
|
Fiber Laser cutting head
|
WSX Worthing or Raytools. Precitec cutting head
|
|
Focus lens
|
Worthing (WSX) Raytools...Precitec
|
|
Working life of fiber module
|
More than 100000 hours
|
|
Motors & Drivers
|
YASKAWA/Schneider..... servo motor world famous
|
|
Reducer
|
Imported high precision and output torque, low noise
|
|
Guide Rails
|
High accuracy linear from Taiwan
|
|
Transmit system
|
DUAL drive rack and pinion 4 servo motors .
|
|
Chain system
|
Enclosed high quality
|
|
Water Chiller
|
TEYU( S&A) brand
|
|
Control system
|
Professional laser control system--Cypcut
|
|
Position type
|
Red Dot pointer
|
|
Cutting thickness
|
≤7mm(stainless steel)
≤16mm(carbon steel)
|
|
Max. Idle Running Speed
|
100M/min
|
|
Max Cutting Speed
|
32m/Min
|
|
Geometric Position Accuracy
|
within ±0.08mm/M
|
|
Reorientation accuracy
|
within ±0.05mm/M
|
|
Lubrication system
|
Auto Electrical motored,wholly and sound
|
|
Min. Line Width
|
±0.02mm
|
|
Power Consumption
|
12-14KW total
|
|
Auxiliary gas system
|
Japan SMC series components, dual air inlets, low pressure piercing , automatic pressure adjustment and switching
|
|
Power supply Voltage
|
380V/50Hz/60Hz
|
|
Auxiliary Gas for cutting
|
Oxygen, Nitrogen, Air
|
|
Compatible software
|
Autocad, Coreldraw, etc
|
|
Graphic format
|
AI, BMP, DST, DWG, DXF, DXP, PLT
|
|
Working method
|
Industrial PC control with console desk and romote
|
|
Total power protection rating
|
IP54
|

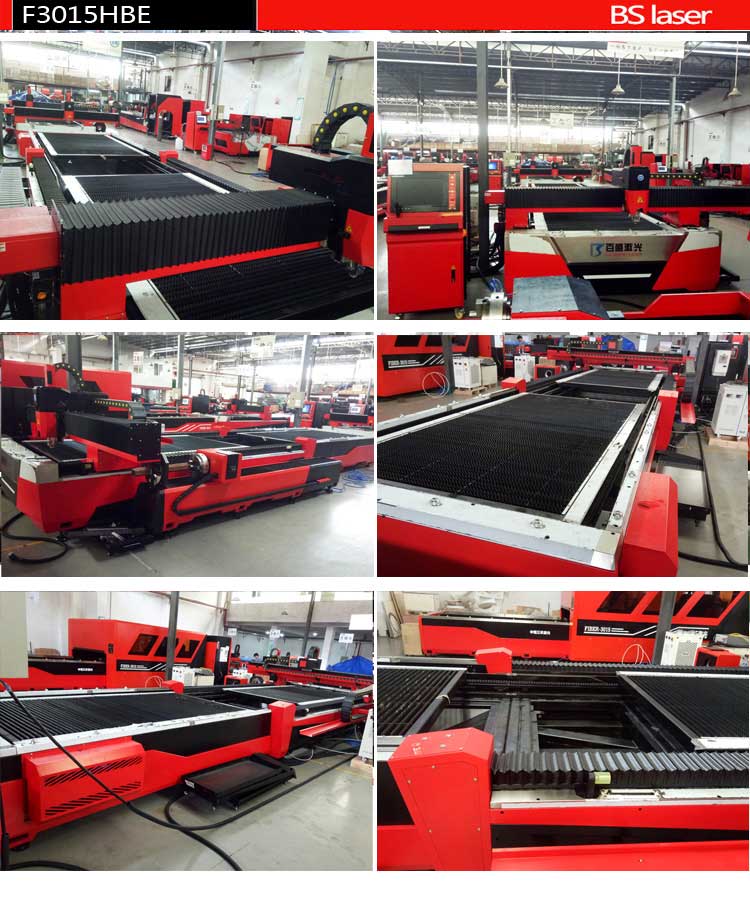

Machine closeup reviews in factory :
Fiber laser machine is a time saver and enegy saver for metal fabrication and the main stream for now and the future.
Baisheng laser features:
Our fiber laser cutting machine offers an unbeatable high production level and excellent cutting quality for thin and medium thickness sheets. The maximum sheet thickness depends on the chosen output power.
The high energy efficiency of the fiber laser ensures a significant reduction in energy consumption. The machines are available with output power ranging from 700 watts to 2000 watts.
