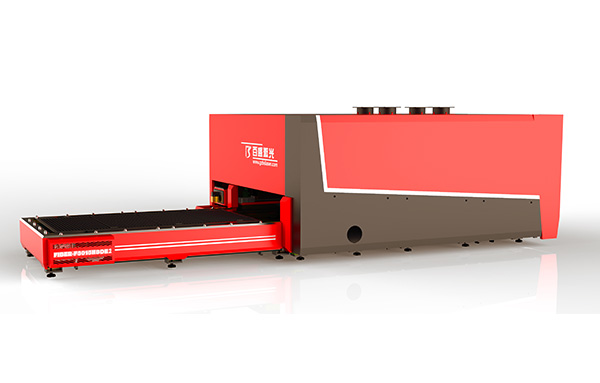

Sheet and Pipe Laser Cutting Machine with Pallet Changer and Cover

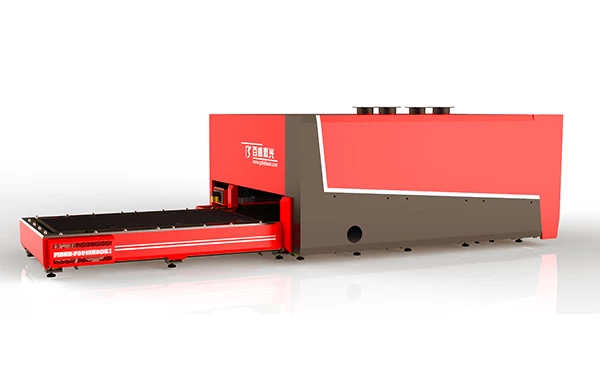

F3015HBDE laser with shuttle table and fully enclosed cover,3000*1500mm cutting table and pipe cutter.
the whole machine can be packed and loaded in a 40 flat rack container.A factory direct sale laser,no middleman.
Applicable : sheet metal and pipe/tubes cutting .
Warranty : 2/3 years for laser source
Packaging & Delivery : Plastic packing film inside, export wooden case with iron tubes outside.
Port : Shenzhen
Lead Time : Shipped in 40 days after payment
Cutting size :3000*1500 or 4000*2000mm options.
Model name: F3015HBDE or F4020HBDE
At present ,such dual-use laser machines are widely used in fabricating shops for its high economic feature and less floor needed.
Sheet and Pipe Laser Cutting Machine Exclusive Features:

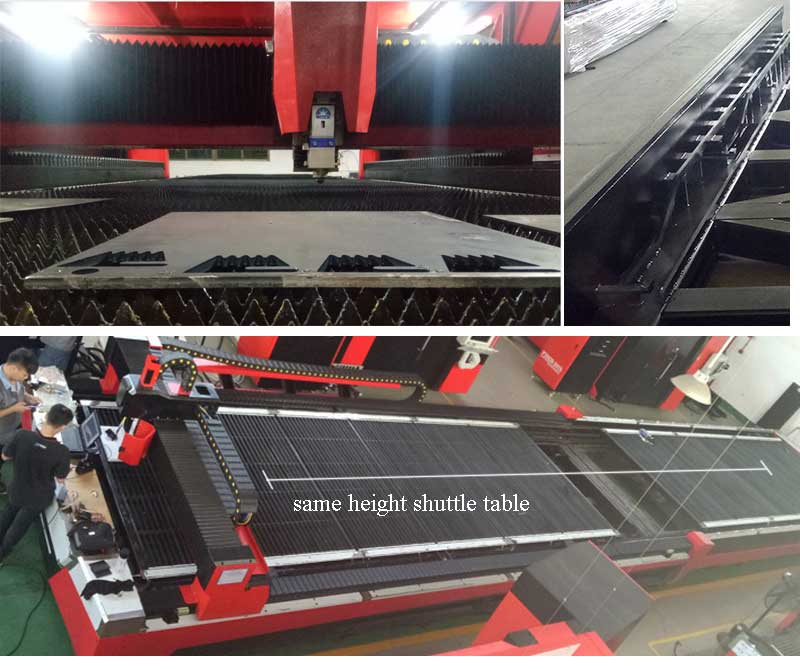

1.Unique leading climbing pallets ,synchronous exchanging tables and at same height. faster and better for cutting accuracy.

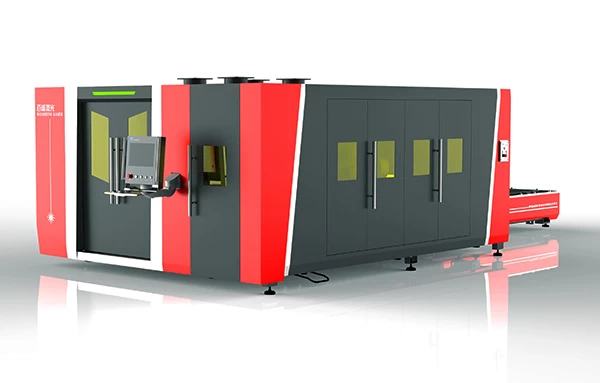

2.Fully enclosed cutting table with powerful blowser and Smart control exhaust system that create cleaner jobshop.
3.Thick sheet metal welded industrial grade machine tool bed ,true heat-treatment ,annealing machine bed,time aging,vibration residule stress relief ,unique"W"beams strengthened.

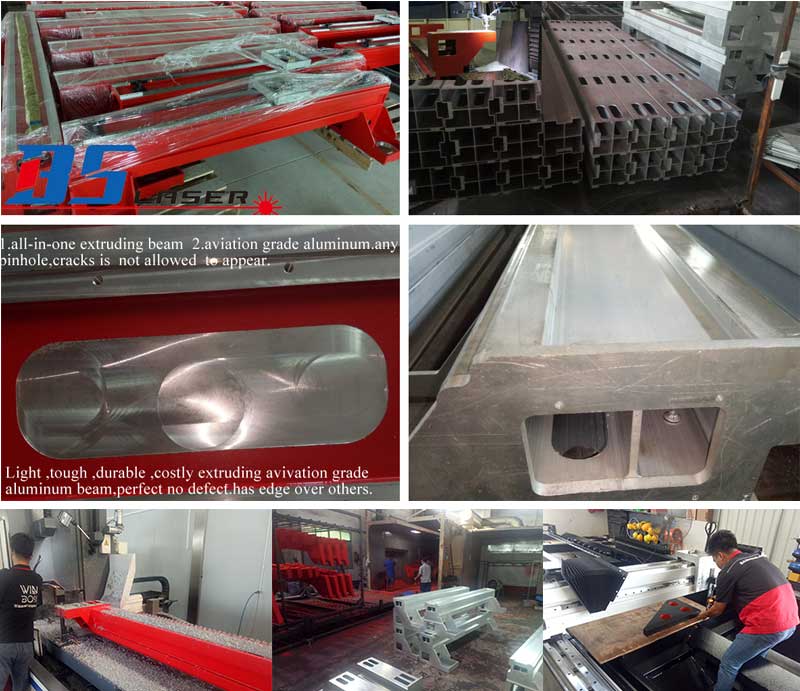

4.Aviation grade extruding aluminium beam ,no any pinhole allowed.lighter in weight but more tough.
5.for high-power laser machine ,exclusively using graphite sheet as dunnage to protect machine bed in case of heat damage.
Note: Automatic shuttle table for faster loading materials and offload finished parts, dramatically save overall cycle time without a laser sitting idle for prolonged periods,no need to wait for operators to load sheets and unload parts.

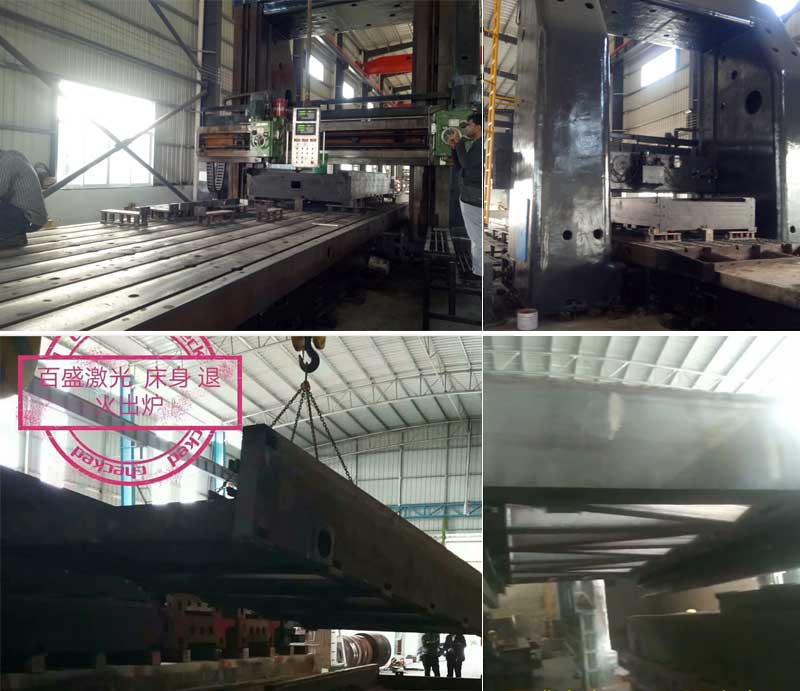

Unique industrial Machine bed allows your machine more durable and faster
Unique aviation grade aluminum extrusion laser crossbeam,fabricated by cnc machine.
Applied with Europe standard climbing pallet type shuttle table ,running more stable,cutting more accurate and efficient .

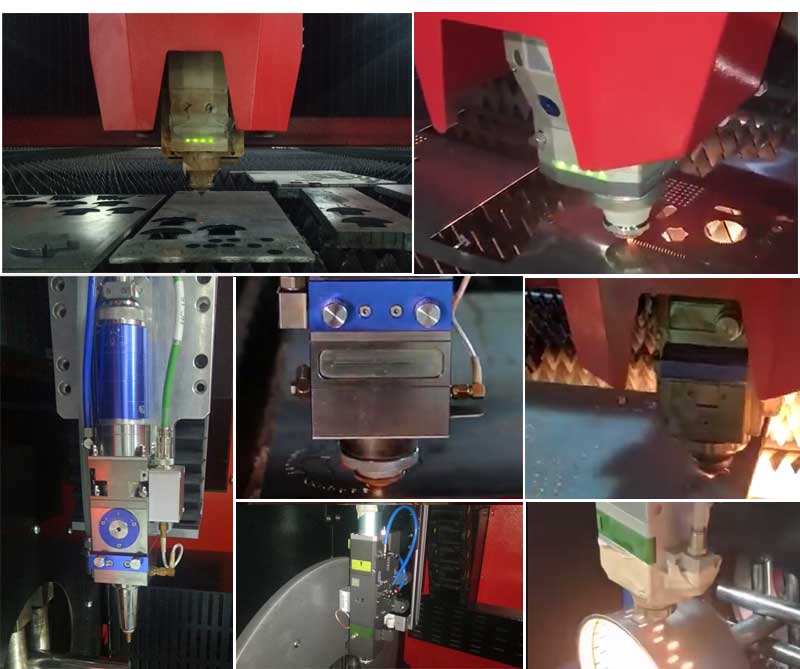

A few auto focusing Cutting heads options:

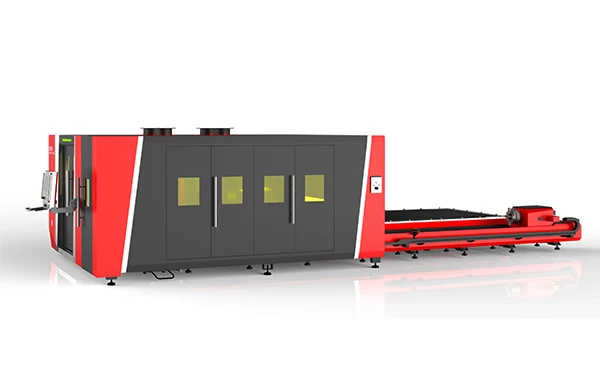

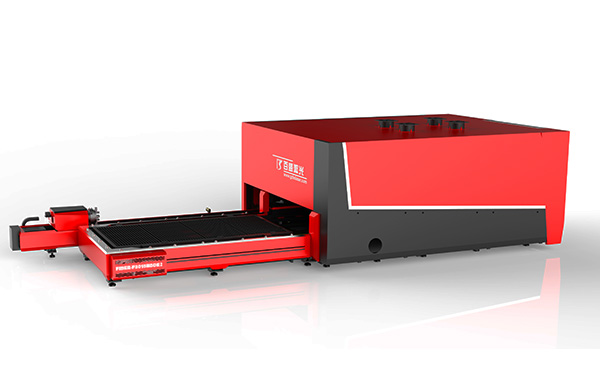

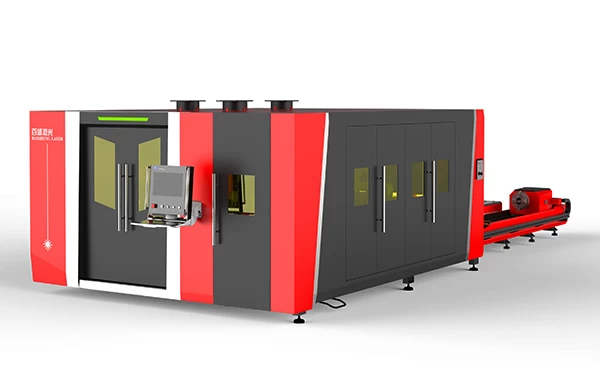

Baisheng unique designed model,tube and plate cutting combination, smaller footprint,saving cost and shop space.
• The laser Available for various diameters of tubes and sizes of sheets.
• pneumatic control chuck . Easy operation, low noisy, high rotate speed, better parts centrial positioning. high accuracy, efficiency .
•Lower Gantry,double drive,rack and pinion system with imported servo motors
• Cutting tube length 3m,4m,6m, diameter from 20-200mm; cutting sheet size 1500×3000mm(standard)
For more machine details,pls send inquiry !
Fiber laser advantages:
Fiber laser is a time saver and energy saver for metal fabrication and the main stream for now and the future .fiber lasers have become the true workhorse of metal fabrication,
and they have never been more productive. They cut nests at unprecedented speeds and produce finished parts with fine edge while power draw not so high .
fiber laser cutting machines offers an unbeatable high production level and excellent cutting quality for thin and medium thickness sheets. The maximum sheet thickness depends on the chosen output power.
The high energy efficiency of the fiber laser ensures a significant reduction in energy consumption. The machines are available with output power ranging from 1000 watts to 12000 watts.
