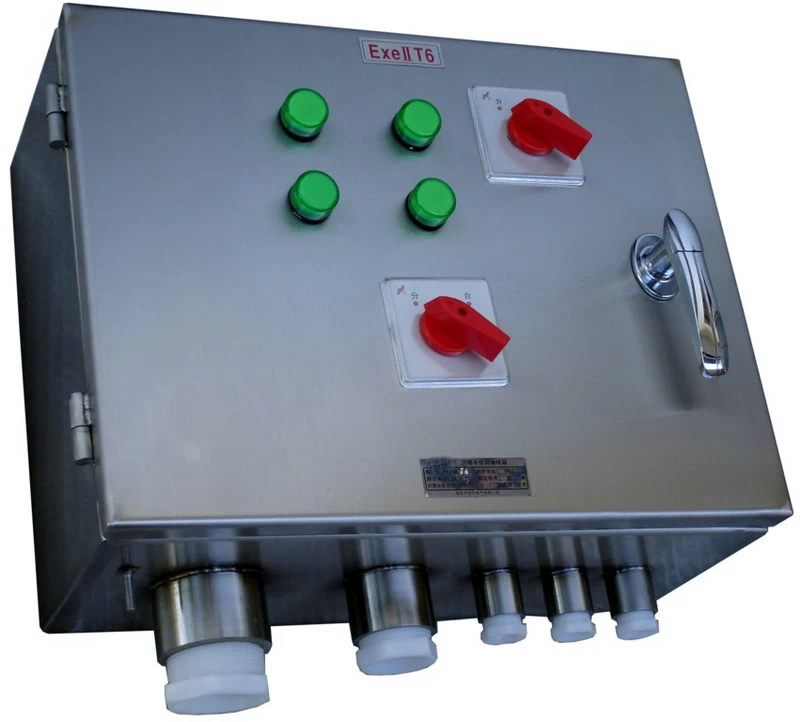

Sheet Metal Exell T6 Explosion Proof Electric Control Boxes
Explosion proof mark: ExdeIBT4/T5/T6, ExdeIICT4/T5/T6, DIP A20 TA, T4/T5/T6;
Rated voltage: AC220/380V, non standard voltage: 12V/24V/36V/127V/660V;
Current of main switch: 10A - 800A; switch current: 1A - 630A;
Protection grade: IP54/IP55/IP65;
Thread specification: DN15-DN100/G1/2-G4 "
The introduction of line specifications: diameter 6mm-80mm; pinout specifications: diameter 6mm-80mm;
Introduce derivative direction: on the mobility, lower in and out (not restricted according to customer requirements)
Custom sheet metal enclosure
Specifications:
|
Part Number
|
Enclosure Dimensions
|
Mounting plate dimensions
|
|
0008-ECPB-TCH
|
300 ×400 ×200
|
250 × 350
|
|
0009-ECPB-TCH
|
400 ×400 ×200
|
350 × 350
|
|
0010-ECPB-TCH
|
400 ×500 ×200
|
350 × 450
|
|
0011-ECPB-TCH
|
400 ×600 ×200
|
350 × 550
|
