Company profile

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.

All products

Rogers RT/Duroid 5870 10mil 0.254mm High Frequency PCB

Rogers RT/duroid 5870 high frequency material is glass microfiber reinforced PTFE composites which is designed for exacting stripline and microstrip circuit applications.

Rogers RO4730G3 High Frequency PCB 2 Layer 20mil 0.508mm DK3.0 PCB

Rogers RO4730G3 antenna grade laminates are reliable, low-cost alternative to the conventional PTFE-based laminates. It has the mechanical and electrical properties that antenna designers need.

Arlon AD450 High Frequency PCB with 70mil Coating Immersion Gold

AD450 is compatible with processing used for standard PTFE based printed circuit board substrates. In addition, it's low Z-axis thermal expansion will improve plated through holes reliability, compare to typical PTFE based laminates.

Rogers AD450 High Frequency PCB 10mil Substrate With ENIG

The electrical properties of AD450 suggest it can readily replace FR-4 in applications where higher frequencies and expectations for increased fidelity with broadband signal are beyond the performance offered by FR-4.

TRF-45 RF 1.0mm Double Sided High Thermal Conductivity Low Loss PCB

This type of double sided high frequency PCB is built on 40mil TRF-45 low-loss ceramic-filled material with 1oz copper on both top and bottom side.

RF-45 Low Loss RF PCB Stable DK High Frequency High Performance Circuit Board

It’s a kind of low loss laminate alternative to FR-4, dielectric constant (DK) flat over temperature and DF is stable over frequency.

Rogers HF PCB Built on RT/Duroid 6002 30mil DK2.94 Immersion Goldequency PCB

Rogers RO3006 was designed to offer exceptional electrical and mechanical stability at competitive prices.

Fast PCB Quick Turn Prototype 4-layer Circuit Board FR-4 With 2oz and Immersion Gold

This is a type of fast lead time required multilayer PCB built on FR-4 substrate with Tg 150°C for the application of Power Supply Switch.

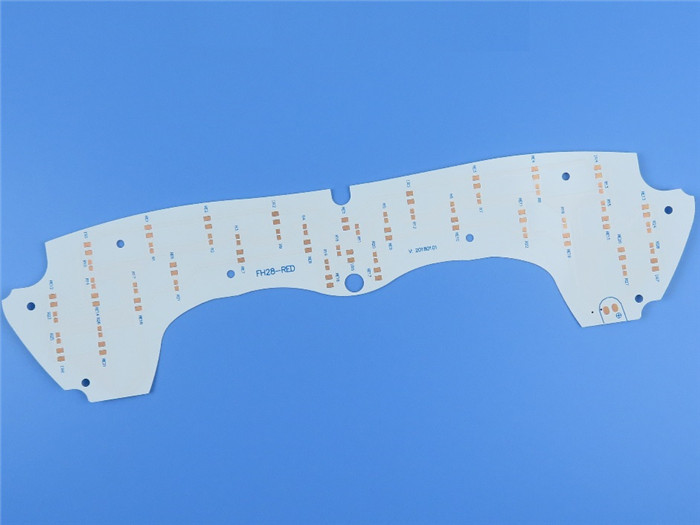

Double Sided Aluminum PCB Dual Layer Circuit Board 2-Layer MCPCB

This is a type of double sided aluminum based PCB for the application of switch regulator.

90 Ohm Impedance Controlled | Single End Differential Impedance Printed PCB Board

This is a type of 10-layer PCB circuit board built on FR-4 substrate with Tg 180°C for the application of signal generator.

High Tg PCB Made on S1000-2M and 90 Ohm Impedance Control

This is a type of high Tg PCB with differential impedance on layer 3 at 6mil/7mil, 6mil/10mil.

TU-883 Multi-layer HDI Low Loss High Temperature PCB With 90 Ohm Impedance Controlled

This is a type of low loss high performance multi-layer PCB built on TUC’s TU-883 core with 20 copper layers (20-layer PCB).

RF Hybrid High Frequency 4 Layer 8mil RO4003C FR-4 PCB

RO4003C exhibit a stable dielectric constant over a broad frequency range. This makes it an ideal substrate for broadband applications. And signal integrity performance improvement over the stack-ups with all FR4 board.

Hybrid Microwave Circuit Boards PCB RO4350B and RT/Duroid 5880

The hybrid PCB can be a mixture of FR-4 and high frequency material, and a mixture of high frequency material with different dielectric constant (DK)

Hybrid High Frequency Multilayer PCB 6-Layer 12mil RO4003C and FR-4

The 12mil core is on the top layer and it mainly plays the roles of signal layer. The core has fixed thickness which is very important to the electrical length of RF lines on the circuit board.

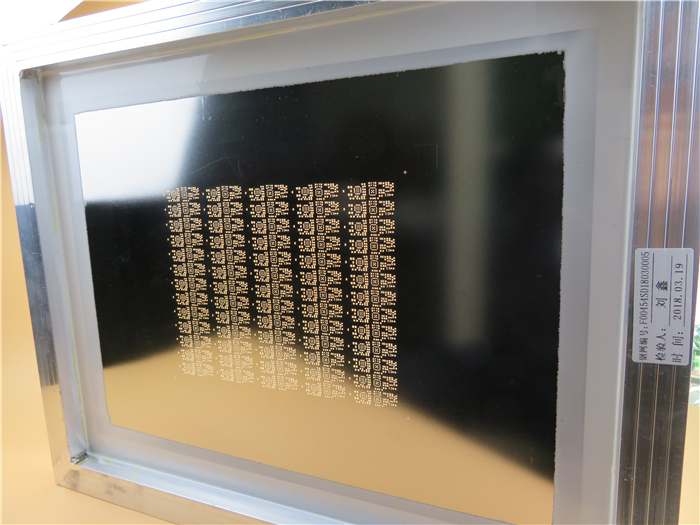

Aluminum Screen Printing Framed SMT Laser Cut PCB Stencil

SMT stencil in our house, framed or frameless are 100% laser cut. The thickness of stainless steel foil ranges from 0.05mm to 0.4mm, with size 300mm x 300mm to 600mm x 600mm.

High CTI 600V PCB 2.0mm FR-4 With HASL and Countersunk Holes

This is a type of single sided circuit board built on FR-4 substrate with CTI 600V.

Thin PCB 0.2mm FR-4 Printed Circuit Board with White Solder Mask OSP

It’s a very simple board with white solder mask and OSP on pads.

Blind Via PCB Built on Tg150℃ FR-4 With Immersion Gold 4-Layer

This is a type of multilayer PCB built on FR-4 substrate with Tg 150°C for the application of mobile phone with blind via technology.

Impedance Controlled 12 Layers High Tg HDI Multilayer FR-4 PCB Board

This is a type of impedance controlled PCB built on FR-4 material with Tg 175°C for the application of Signal transmission.

Low Dk / Df FR-4 High Thermal Reliability Printed Circuit Board TU-872 Multilayer PCB

TU-872 SLK Sp is based on a high performance modified epoxy FR-4 resin. This material is reinforced with novel woven glass and designed with extra low dielectric constant and low dissipation factor for high speed low loss and high frequency circuit board application.

High Tg Printed Circuit Board Made on IT-180ATC with Immersion Gold Double Sided PCB

This is a type of standard double sided high temperature PCB which is built on ITEQ’s IT-180ATC laminate.

Edge Castellated PCB Half Holes Circuit Boards 1.6mm FR-4 With Blue Solder Mask

This is a type of multi-layer PCB built on FR-4 substrate with Tg 135°C for the application of digital receivers.

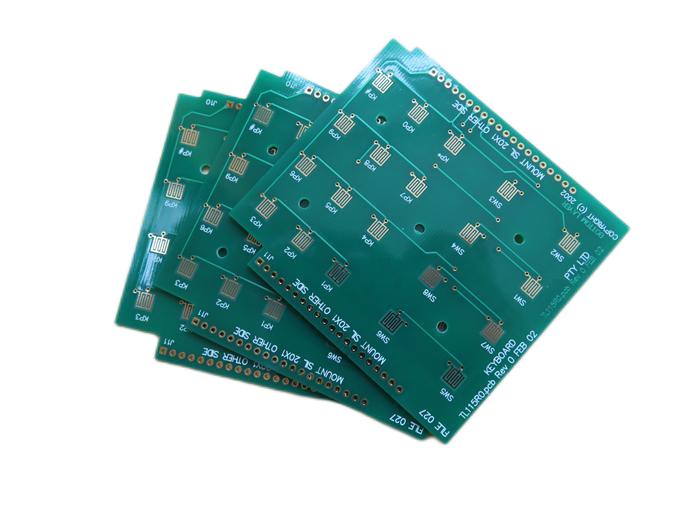

Keypad PCB Hard Gold Circuit Board Tg170 FR-4 With Green Solder Mask

This is a type of double sided circuit board built on FR-4 substrate with Tg 170°C for the application of keypad.

Heavy Copper PCB High Power Circuit Board Built On FR-4 With 3 Oz Copper

This is a type of heavy copper PCB built on FR-4 substrate with Tg 135°C for the application of UPS systems.

Thick Printed Circuit Board 3.0mm Double Sided PCB FR-4 With Immersion Gold

This is a type of 3.0mm thick PCB built on double sided FR-4 substrate with Tg 150°C for the application of data acquisition.

Thick 2.4mm Circuit Board Dual Layer PCB Built on FR-4 With 2oz Copper

This is a type of 2 oz double sided PCB built on FR-4 substrate with Tg 150°C for the application of micro SATA carrier board.

Thin Printed Circuit Board 0.6mm Double Sided PCB on FR-4 with HASL Lead Free

This is a type of 2 layers printed circuit board built on FR-4 substrate with Tg 135°C for the application of switch sensor.

Multi-layer 0.5mm 4-Layer Thin PCB Board With Immersion Gold

This is a type of 4-layer thin PCB board built on FR-4 substrate with Tg 135°C for the application of GPS Tracker.
