RVVP
Flexible PVC Insulated and Sheathed
Shielded Electrical Wire and Cables
MAIN KEYWORDS
RVVP, flexible shielded electrical wire, H05VVC4V5-F, screened PVC
insulated flexible wire and cable.
APPLICATION CHARACTERISTICS

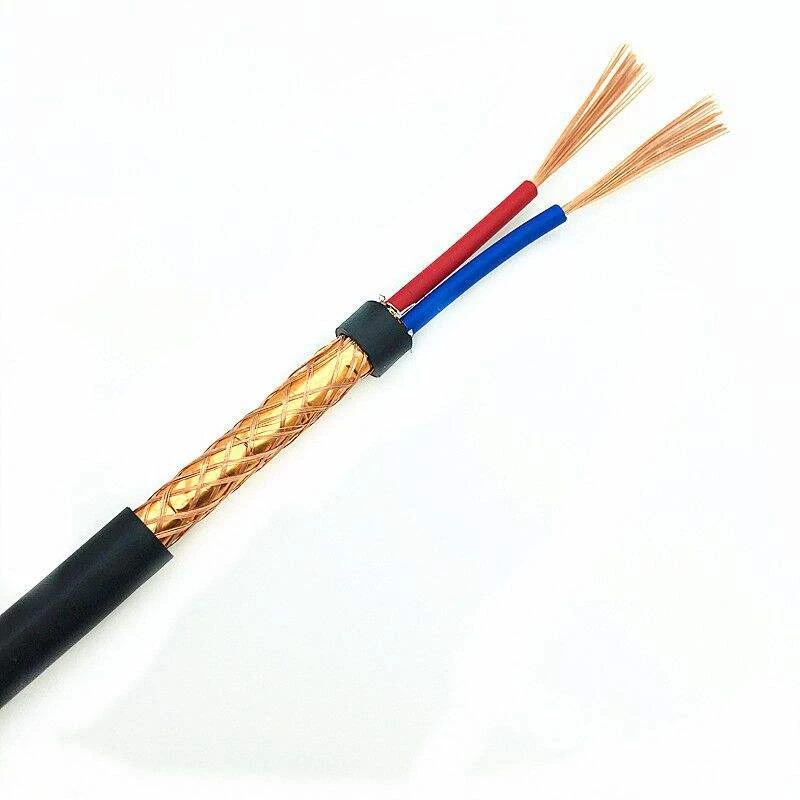

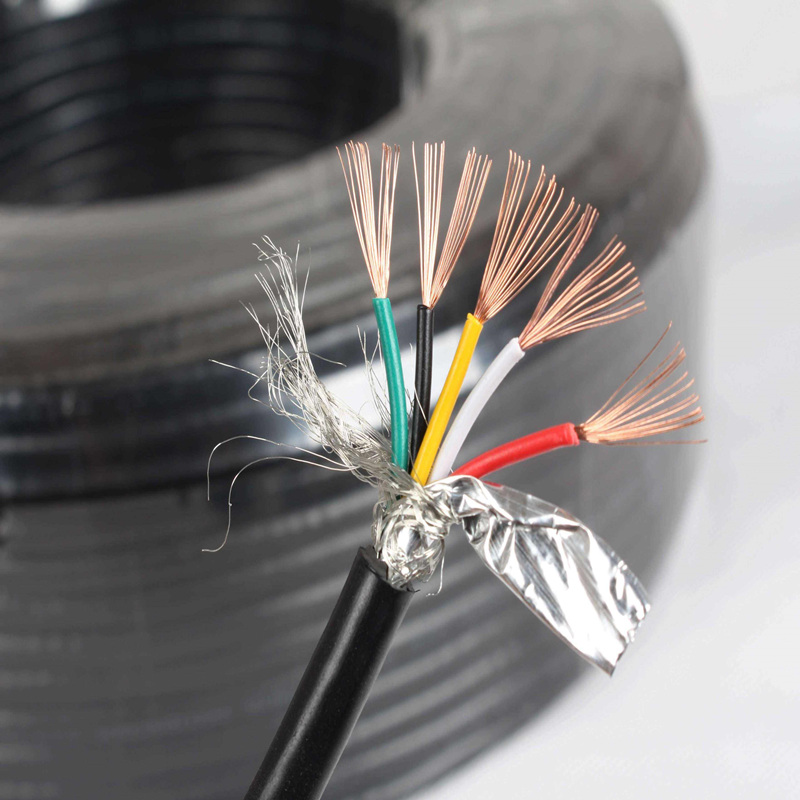

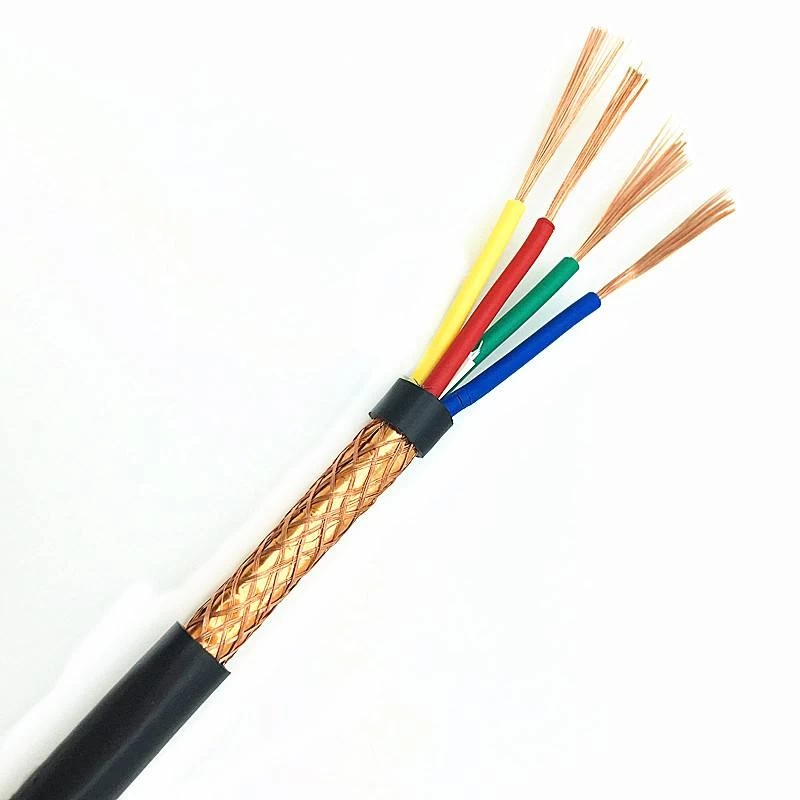

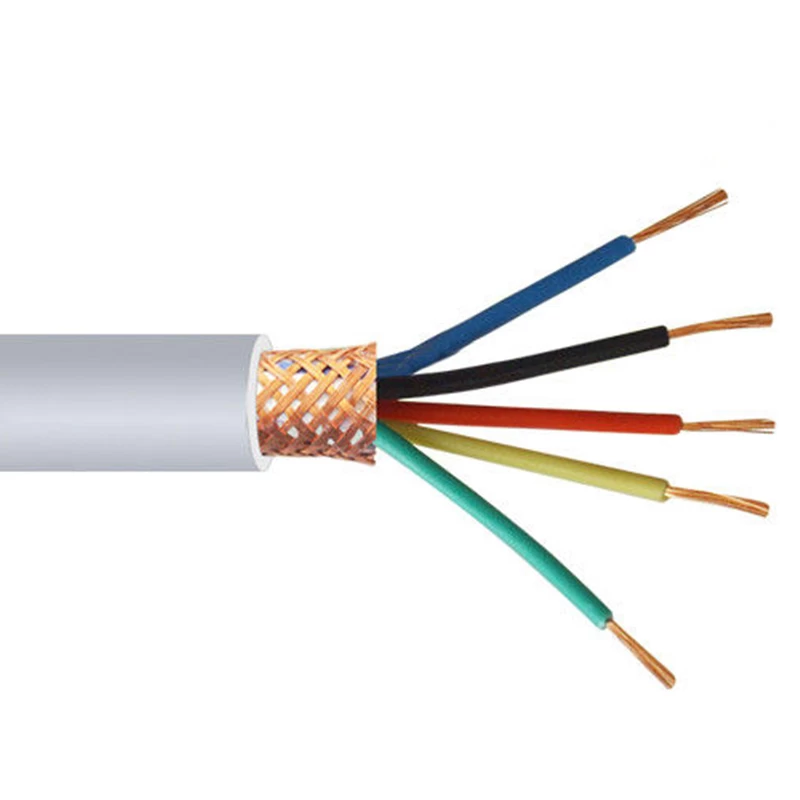

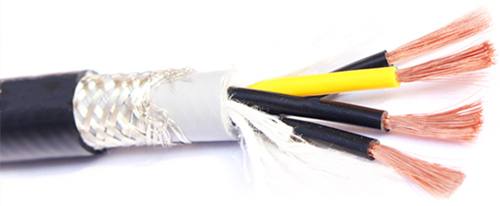

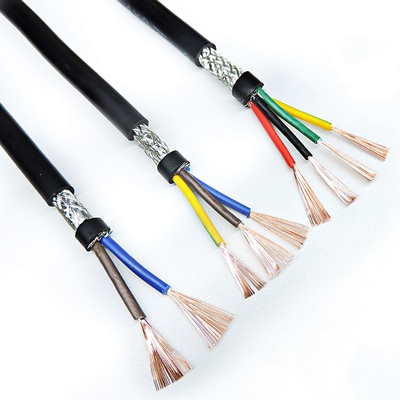

RVVP
electrical wire and cable, the cable structurer includes flexible copper wire conductor,
PVC insulation, copper or tinned copper wire braid shielded, aluminum foil
screened, PVC Sheath. RVVP electrical wire and cable, suitable for
communication, audio, broadcast, sound system, anti-theft alarm system,
intelligent automation system, automatic meter reading system, fire system,
etc.
PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, strand class 5, flexible.
---Insulation Material (inner insulation)
Soft PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
7C or above: black insulation and marks white number, maybe has a earth wire of yellow/green.
Remark: we will choose other colors according to the customer request.
---Shielded Material (inner braided)
Pure copper wire, or tinned copper wire
---Screened Material (out cover)
Aluminum foil
---Inner Sheath (optional)
PVC (polyvinyl chloride)
---Sheath Material (out insulation)
Soft PVC (polyvinyl chloride)
---Sheath Colour
Black, white, or others.
---Core Number
2 cores, 2C; 3 cores, 3C, 4 cores, 4C; 5 cores, 5C；7 cores, 7C, 10 cores, 10C.
---Voltage Rate (U0/U)
300/300V, 300/500V.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed:
8 x Out Diameter.
---Production Standard
JB/T 8734, GB/T 5023, IEC 60227, BS 6500.
---Products Delivery
Within 7-10 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the RVVP shielded flexible cable, according
to the practice, the common specification is 0.75～2.5 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
