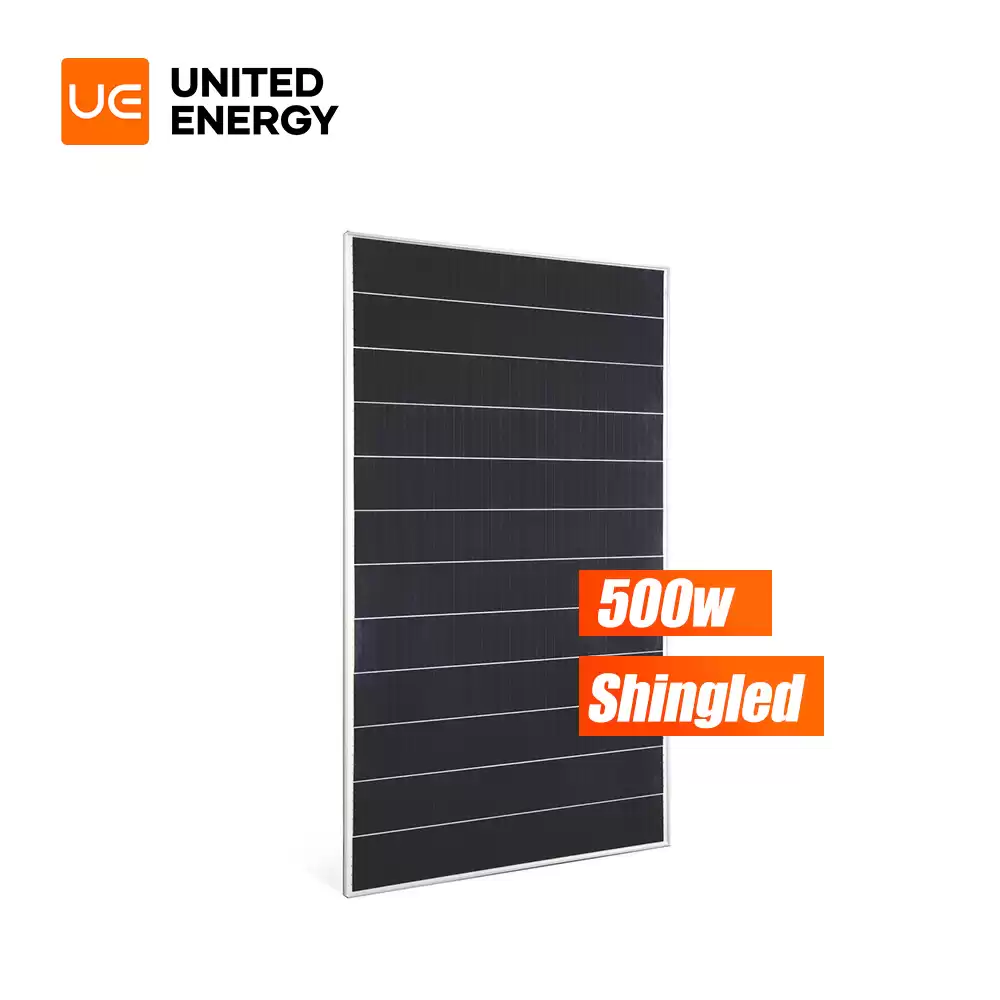

Shingled Solar Power Panel 500Watt 500W Mono Overlap Solar Module

Shingled modules cut solar cells into strips and overlap them inside the framed module.

Intercell gaps are removed, and more silicon cells can be crammed into one module, increasing power output and module efficiency.



United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

1. The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module

assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.

2. Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;

3. Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

4. Reduce the first year and the average photoinduced attenuation;

5. 100% PID Free.



Electrical Specification


Model Number UEPMB5-500 UEPMB5-490 UEPMB5-485
Maximum Power (Pmax/W) 500 490 485
Open Circuit Voltage (Voc/V) 46.8 46.7 46.6
Short Circuit Current (Isc/A) 13.4 13.28 13.22
Voltage at Maximum Power (Vmp/V) 39.0 38.9 38.8
Current at Maximum Power (Imp/A) 12.82 12.6 12.5
Efficiency (%) 21.3 20.9 20.7
Advantage of United Energy Solar Panel

1. Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.

2.Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.


FAQ:

What watts of this panel?

 Mono 485w 490W 500W



What dimension of this panel?

 2056*1140*35mm



How Many pcs quantity of one container?  How much is the loading quantity and shipping method?

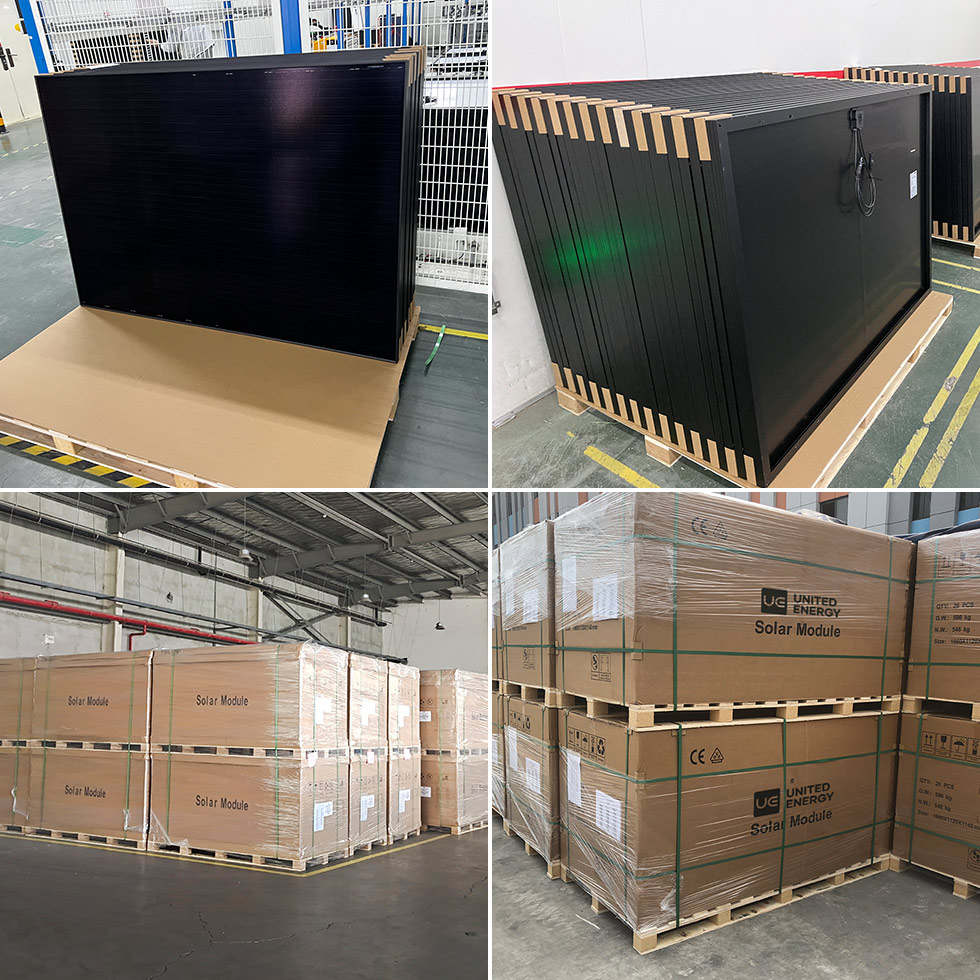

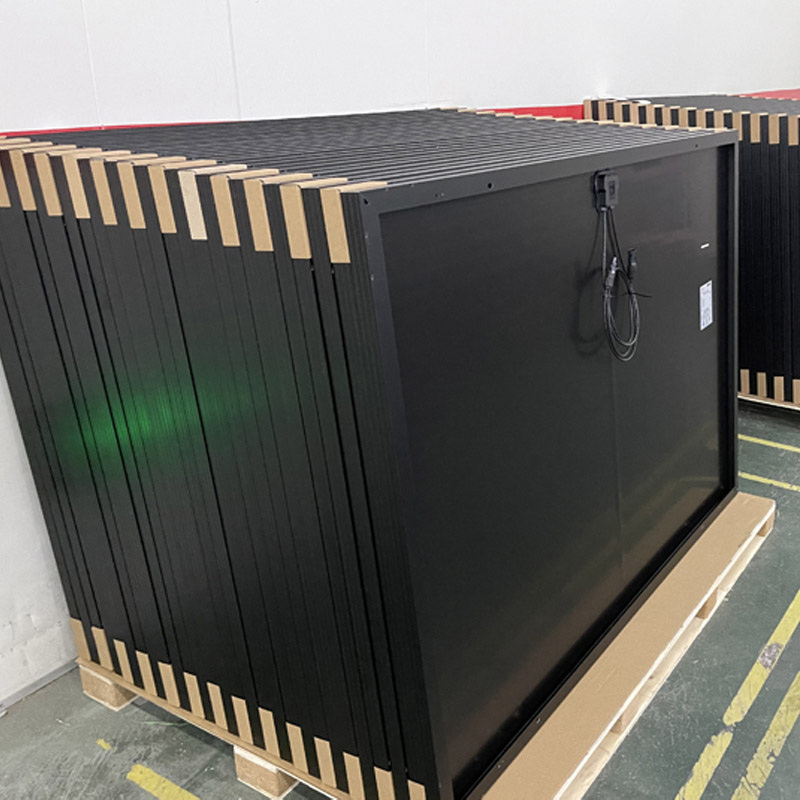

31pcs/pallet  682pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
