Feature:
1. Material β Stainless steel
2. Multi-stage impeller, high head
3. Bidirectional mechanical seal, easy
maintenance
4. Compact block design
5. All hydraulic parts
which come into contact with the fluid, such as stage chambers, impellers and
diffusors and the
Application:
1. Water supply and booster
2. Hot water circulation, heating system
3. Industrial circulating system
4. For various machinery
5. Integrated pump for heat pump system
Design notes
1. Motor protection for three-phase AC motor is optional or
to be provided on-site
2. Single-phase AC motor equipped with built-in thermal
motor protection and capacitor

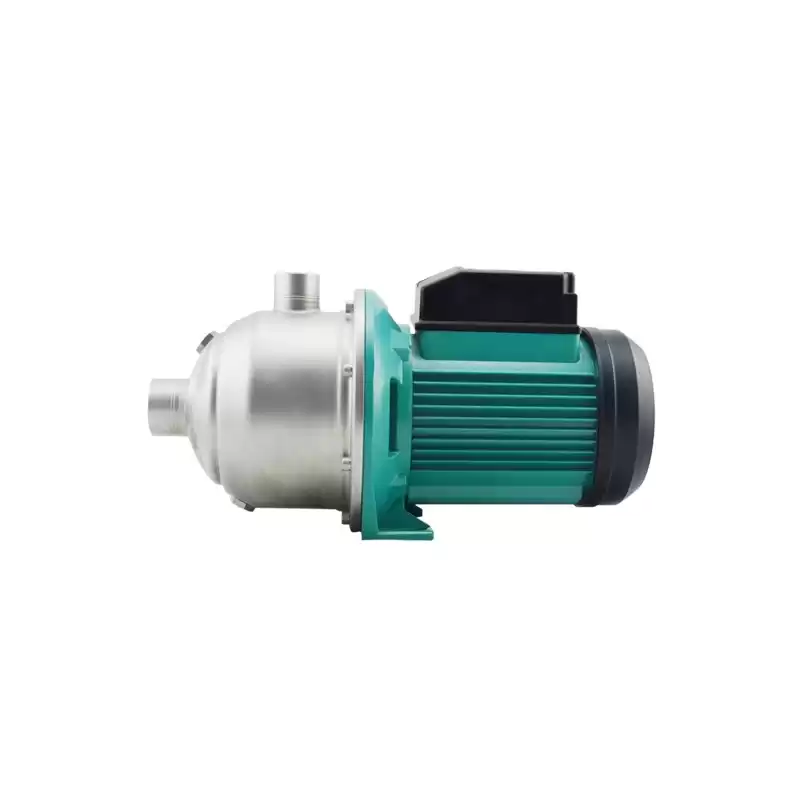

Model: MHI400
Power: 680/400w
Voltage: 1-220/3-380w
Frequency: 50hz
Max Flow: 133l/min
Rated Flow: 50l/min
Max Head: 65m
Rated Head: 40m
Diameter: 32mm
IP Grade: IP54
Temperature:-15- 110β
