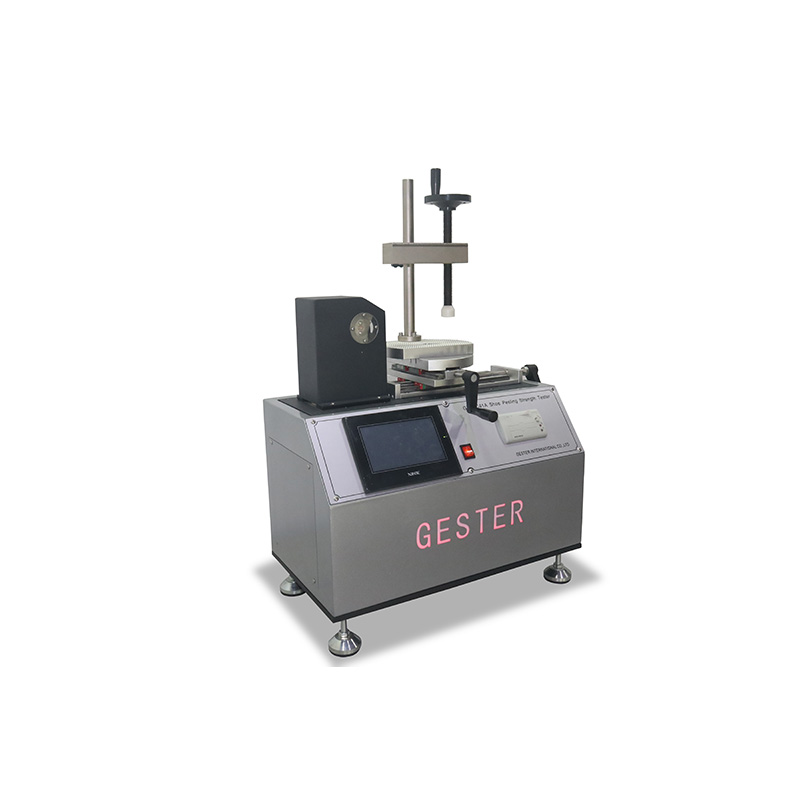

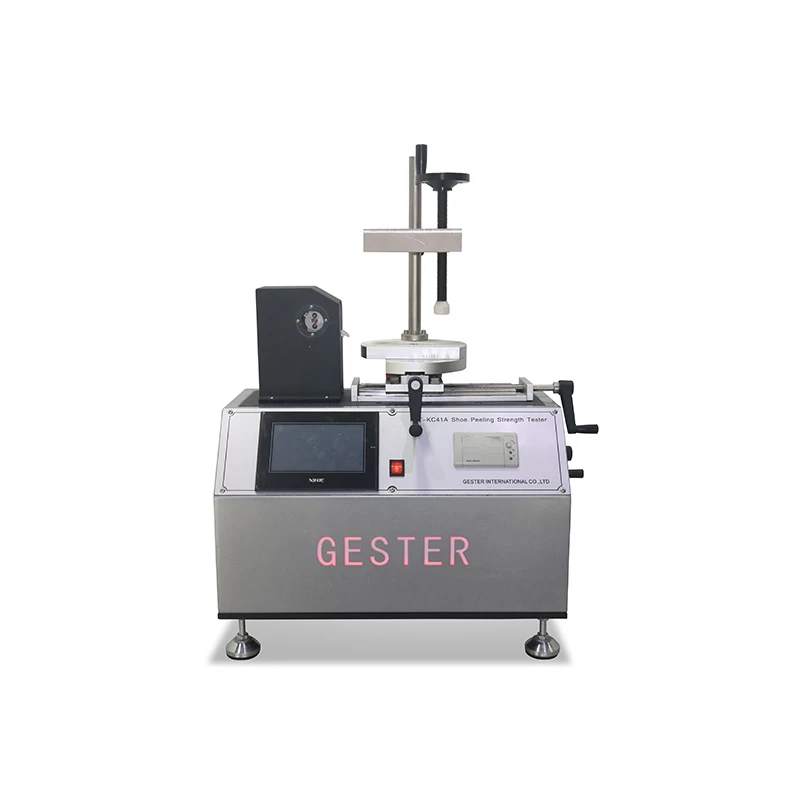

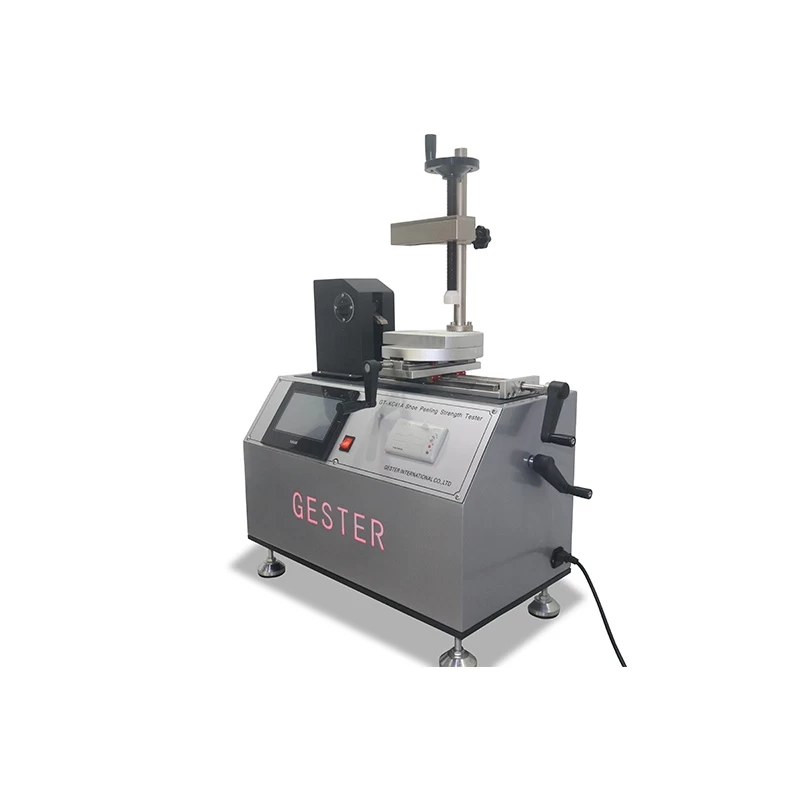

Shoe Peeling Strength Tester GT-KC41A
Product Introduction
|
Application:
This peeling strength tester is determined for testing the peeling strength between sole and upper of a whole shoe or between outsole and medium bottom.
Standards:
GB/T 3903.3
|

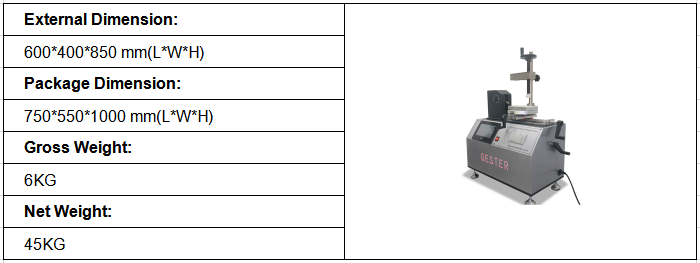

Dimensions
Principle
Fitting the shoe last to a whole shoe and clamping it on the peeling strength tester, strip off the joint between the sole and upper by peeling knife. The peel force is the measured value when peeling. The peeling strength can be counted as the peeling force and width of cutter point.
Key Specifications
Model
|
GT-KC41A
|
Load range
|
100kg
|
Peeling cutter`s width
|
20±0.2 mm and 10±0.2 mm
|
Peeling cutter`s moving down speed
|
20±2 mm/min
|
Elevating range
|
40 mm
|
Display method
|
LCD
|
Power supply
|
1∮AC 220V 50/60HZ
|
Dimensions (W×D×H)
|
60 x 40 x 85 cm
|
Weight
|
45 kg
|
Standards
|
GB/T 3903.3
|
Standard accessories
|
20±0.2 mm Peeling cutter 1pc
|
10±0.2 mm Peeling cutter 1pc
|
Shoe last (Size 44) 1Pair
|
Power line 1pc
|
Optional accessories
|
Shoe last (Size 35, 36, 37, 38, 39, 40, 41, 42, 43, 44)
|
Angle block gauge
|
