Shoes Heat Insulation Tester GT-KB47
Product Introduction
|
Application:

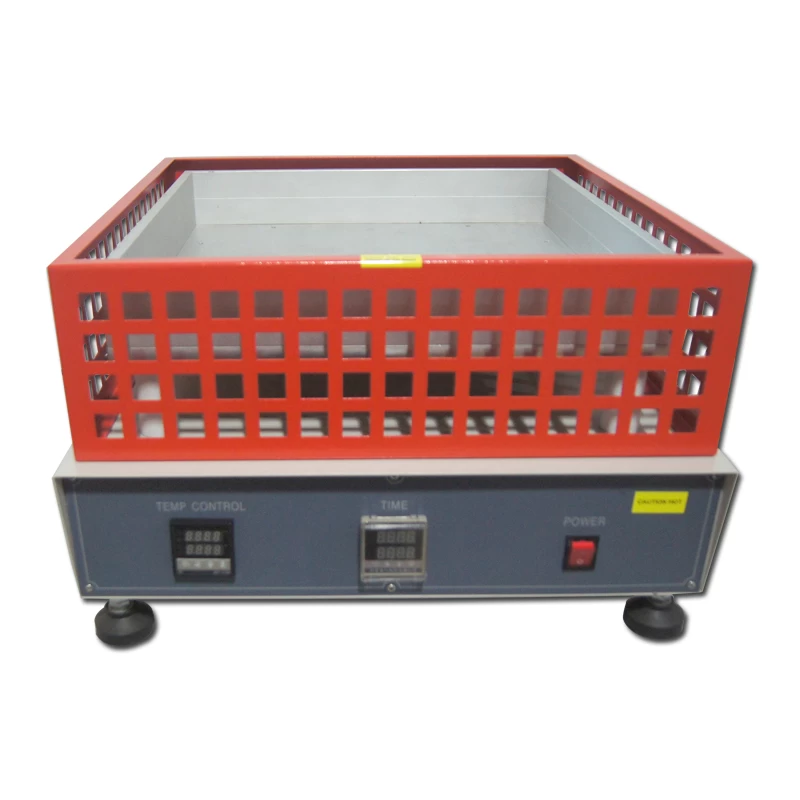

This shoe heat insulation tester is used to determine the heat insulation performance for the whole shoe. Place the specimen (a whole shoe) on the hotplate with a specified temperature for a certain period to examine the increase of temperature inside of the shoe.
Standards:
ISO 20344 section 5.12, GB/T 20991 section 5.12, AS/NZS 2210.2 section 5.12
|
Dimensions
Key Specifications
Model
|
GT-KB47
|
Sand Bath Size
|
(40±2) ×(40±2)cm ,and the height at least 5cm
|
Sand Granular Size
|
0.3~1.0mm
|
Hotplate Temperature Range
|
RT~ 250° ± 5°
|
Temperature Probe
|
Soldered to a copper disc 2mm thick and 15mm dia., accuracy ±0.5°C
|
Heat transfer Medium
|
￠5 mm Steel balls, total mass(4 000±40) g
|
Heating Power
|
2500 ± 250W and over
|
Power Supply
|
1∮AC 220V 50/60HZ
|

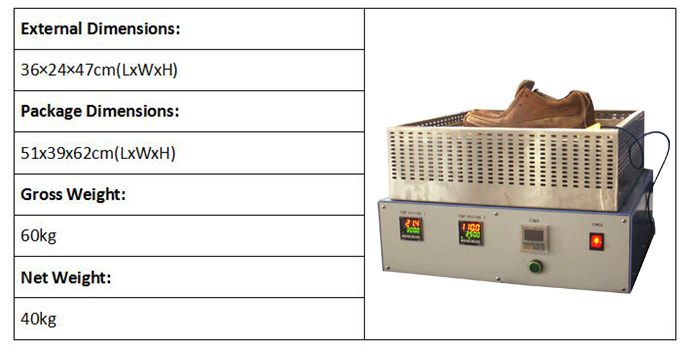

Dimensions (W×D×H)
|
36×24×47cm
|
Weight
|
40kg
|
Standards
|
ISO 20344 section 5.12
GB/T 20991 section 5.12
AS/NZS 2210.2 section 5.12
|
Standard Accessories
|
Temperature probe 1set
|
￠5 mm Steel balls 4kg
|
Power line 1pc
|
