Shopping mall P2 P2.5 indoor LED Digital Poster screen
Indoor P2.5 poster led display is extreme light and extrem thin, install solution.
once plug, using without any setting.
front maintain, fast and simple.
Unit install, wireless connection.
intelligent managerment, easy master.
Avant-garde Digital Poster Frame
Ultra light and thin
Xposter has been engineered with latest technologies to give it a smoother, slimmer profile. It’s crafted in beautiful anodized lightweight yet durable aluminum, to make the entire poster frame weigh less than 35kg, making it more portable and easier to install.
Plug and Play
Enjoy the privilege of watching or screening your own video, audio or pictures playlists anytime, anywhere with Xposter. Update your digital content in our powerful built-in media player via WiFi or USB. Easy-to-follow on-screen menu makes it absolutely simple to schedule your content and no complicated configuration is needed whatsoever!
Pre-maintenance

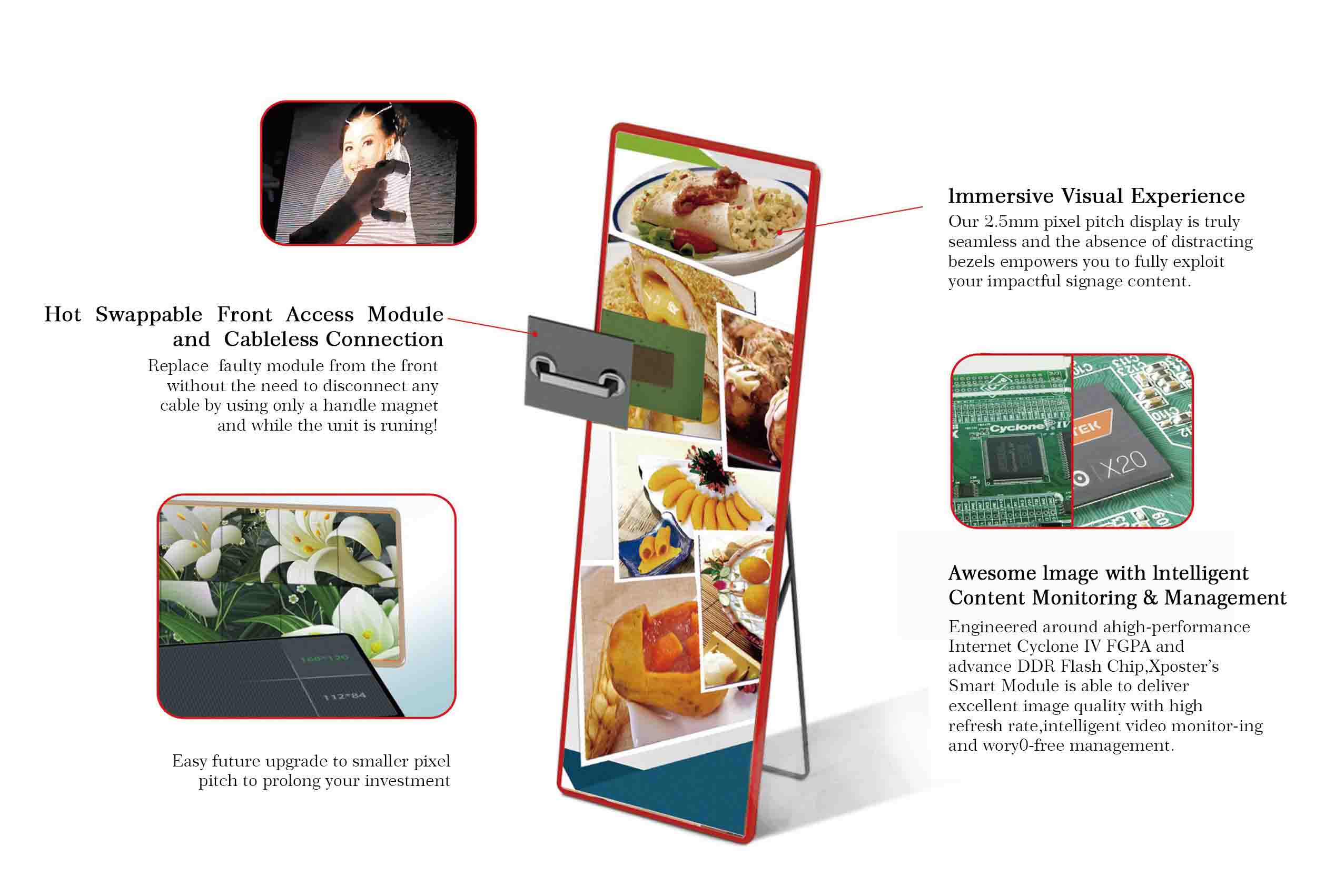

You'll love the speedy convenience of doing servicing and panel module replacements from the front with just a handle magnet. Thanks to the patented cableless technology in connecting the modules. Yet another advantage, exclusive to your Xposter.
Intelligent management

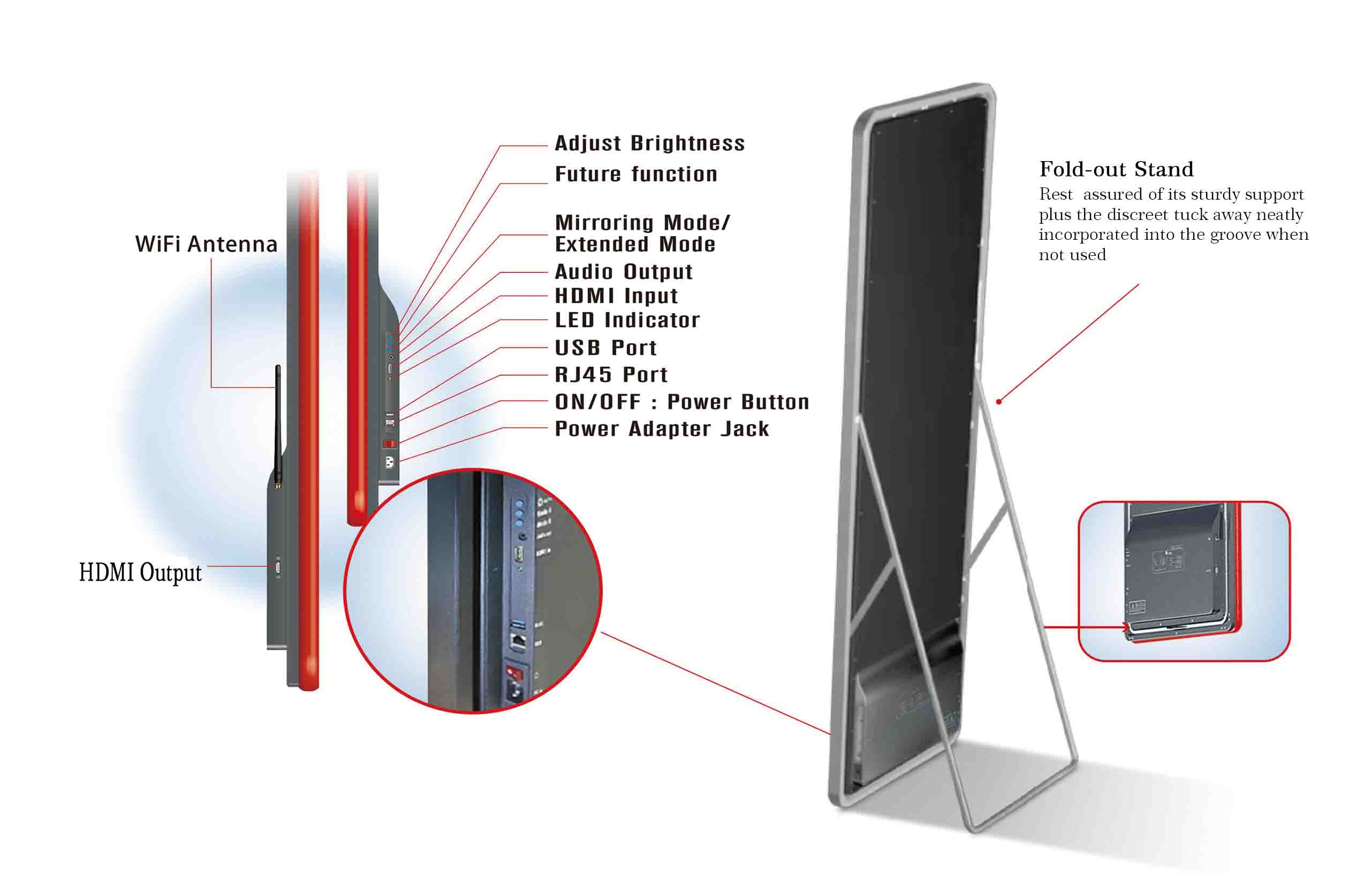

Xposter pre-integrated software enables you to connect to it with a PC or Android devices from a single location via RJ45, WiFi, 3G, USB and HDMI. That makes it extremely easy to identify your display and manage settings like brightness and contrast. Play your content directly from your device be it a laptop, tablet or smart phone. Perform centralized video control and management via internet.
Specification datasheet:
|
Parameter name
|
P2.5
|
|
Pixel Pitch
|
2.5mm
|
|
Module Dimensions
|
288X216
|
|
Display Resolution
|
1112x84
|
|
LED Configuration
|
SMD 3 in 1
|
|
Pixel Density
|
169344 pixsls/Panel
|
|

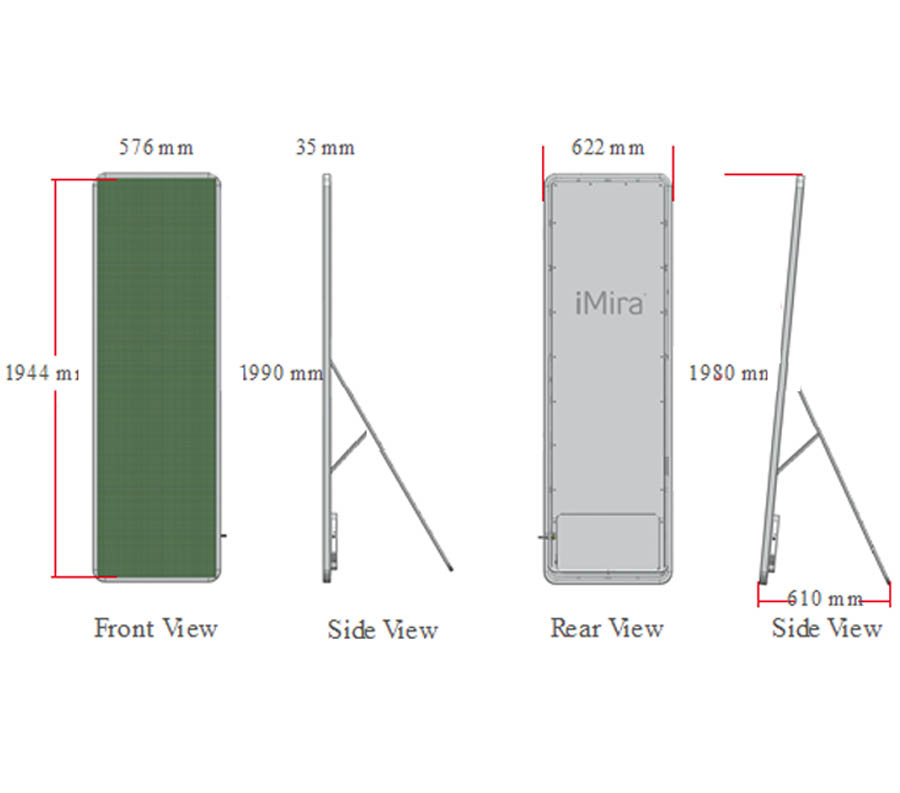

Display Dimension(HxWxD)
|
1944x576x35mm
|
|
Panel Material
|
Aluminum
|
|
Outer Frame Colour
|
Black
|
|
Weight
|
35kg
|
|
Brightness
|
1500cd/㎡
|
|
Drive Mode
|
1/32 Constant scan
|
|
Viewing Angle
|
160°（V)/160°（H)
|
|
Display Colour
|
4.4Trillion
|
|
Processing Depth
|
12bits
|
|
Refresh Rate
|
3840 Hertz
|
|
Contrast Ratio
|
3000:1
|
|
Operation Power
|
AC110/240V,50-60Hz
|
|
Maximum Power Consumption
|
600W/panel
|
|
Average Power Consumption
|
240W/panel
|
|
Display Mode
|
Asynchronous /Synchronous System
|
|
Signal Output
|
HDMI
|
|
Connection Type
|
Ethernet /WIFI
|
|
Supported VGA Mode
|
224X756
|
|
Supported Video Files
|
MPEG/H.264
|
|
Operating Temperature
|
-10° to +50° Celsius
|
|
Operating Lifetime(50%Brightness)
|
100,000 Hours
|
|
Compliance
|
CE UL ROHS
|
