Shore A /C/D Durometer AF65

Shore A Durometer, test pressure needle dimension is 0.79mm, used to test the hardness of Medium and low hardness material, such as plastic, fur, rubber, polyester, wax and etc..

Shore C Durometer, test pressure needle dimension is 2.5mm, used t test the hardness of low hardness materials such as foamed foam, sponge and etc..

Shore D Durometer, test pressure needle dimension is 0.1mm, sed to test the hardness of high hardness material, such as hard rubber, resin, acrylic, glass, and etc..





AF65-Shore A /C/D Durometer


Application Of Shore A /C/D Durometer

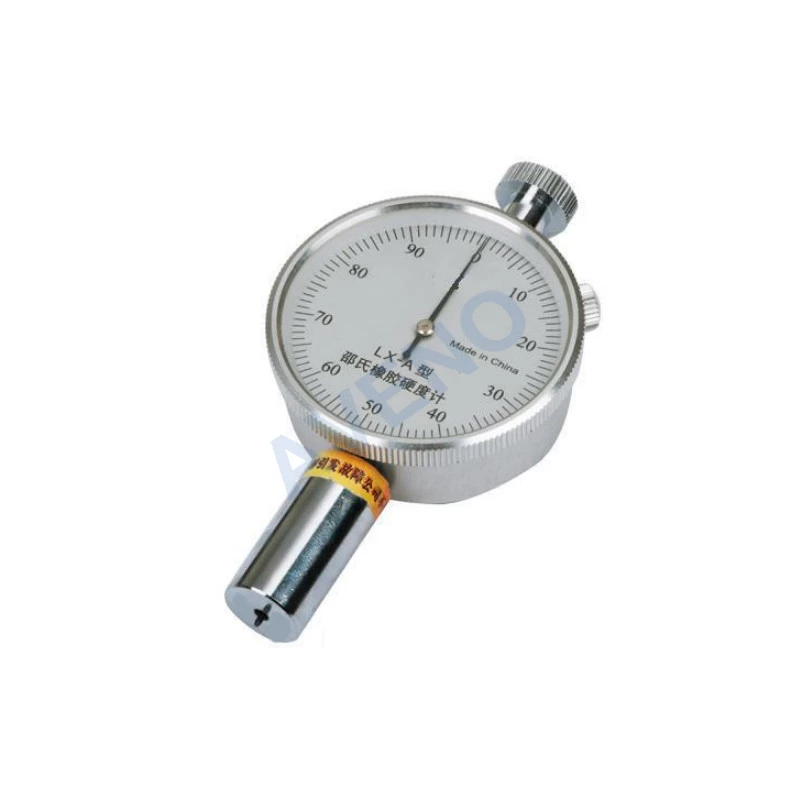

Shore A Durometer, test pressure needle dimension is 0.79mm, used to test the hardness of Medium and low hardness material, such as plastic, fur, rubber, polyester, wax and etc..

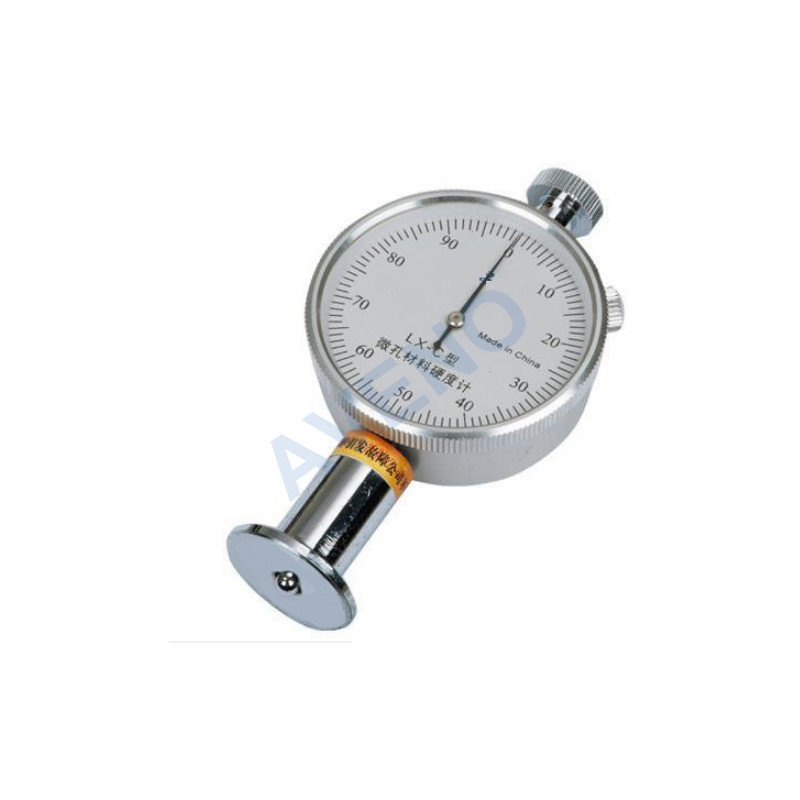

Shore C Durometer, test pressure needle dimension is 2.5mm, used t test the hardness of low hardness materials such as foamed foam, sponge and etc..

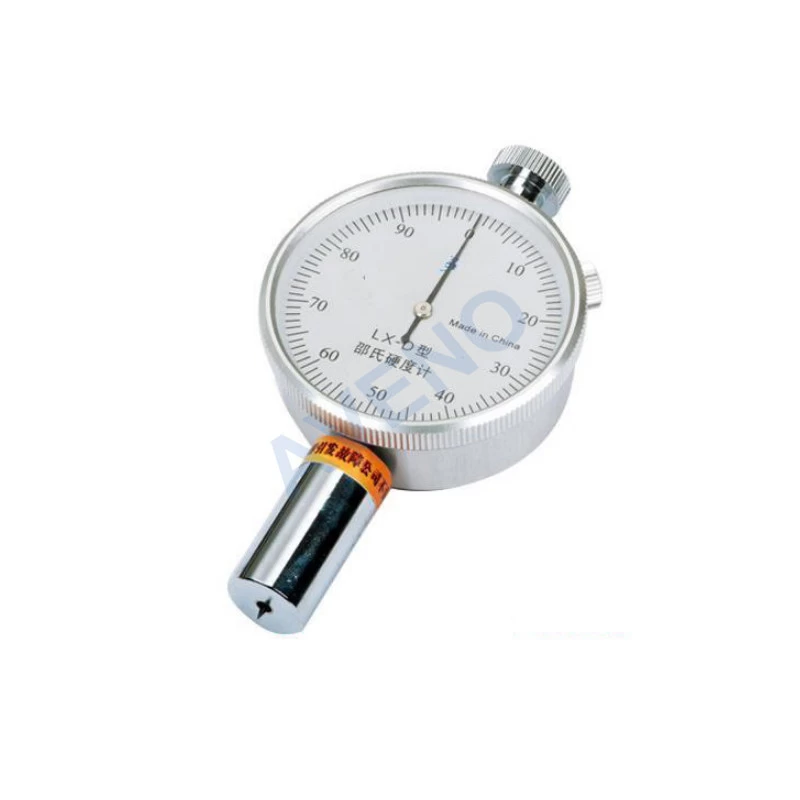

Shore D Durometer, test pressure needle dimension is 0.1mm, sed to test the hardness of high hardness material, such as hard rubber, resin, acrylic, glass, and etc..


Key Specification Of Shore A /C/D Durometer

Model

AF65-A

AF65-C

AF65-D

Type

Shore A

Shore C

Shore D

Display mode

Pointer display

Pointer display

Pointer display

Dial value

0-100HA

0-100HA

0-100HA

Test range

10-90HA

10-90HA

20-90HA

Pressure needle stroke

2.5mm

2.5mm

2.5mm

Pressure needle dimension

φ 0.79mm

SR 2.5mm

SR 0.1mm

Dimension

115*80*25mm

110.60*29mm

115*80*25mm

Weight

0.3kg

2.5mm

2.5mm
