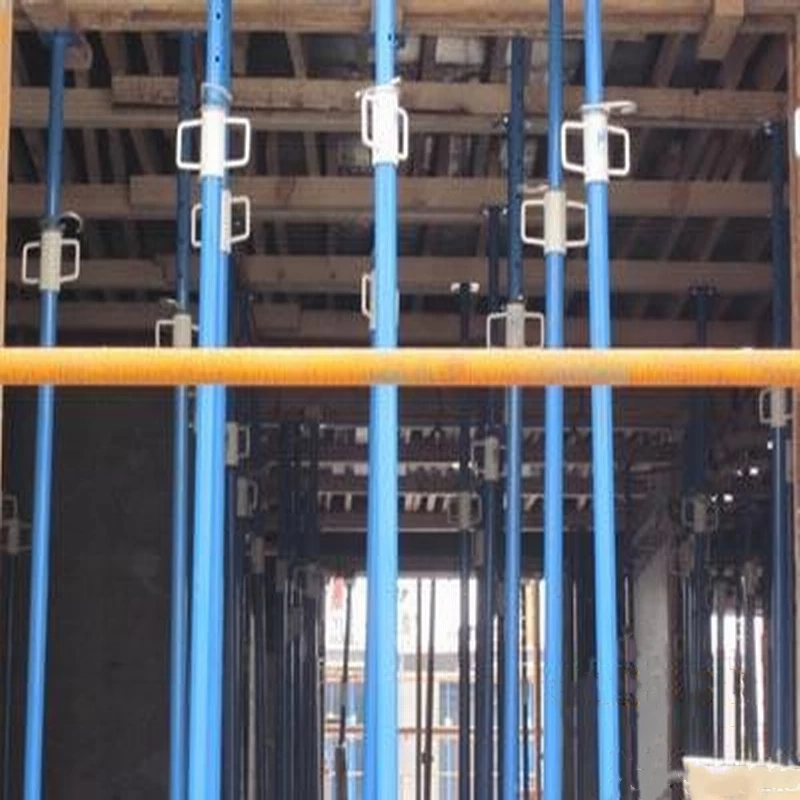

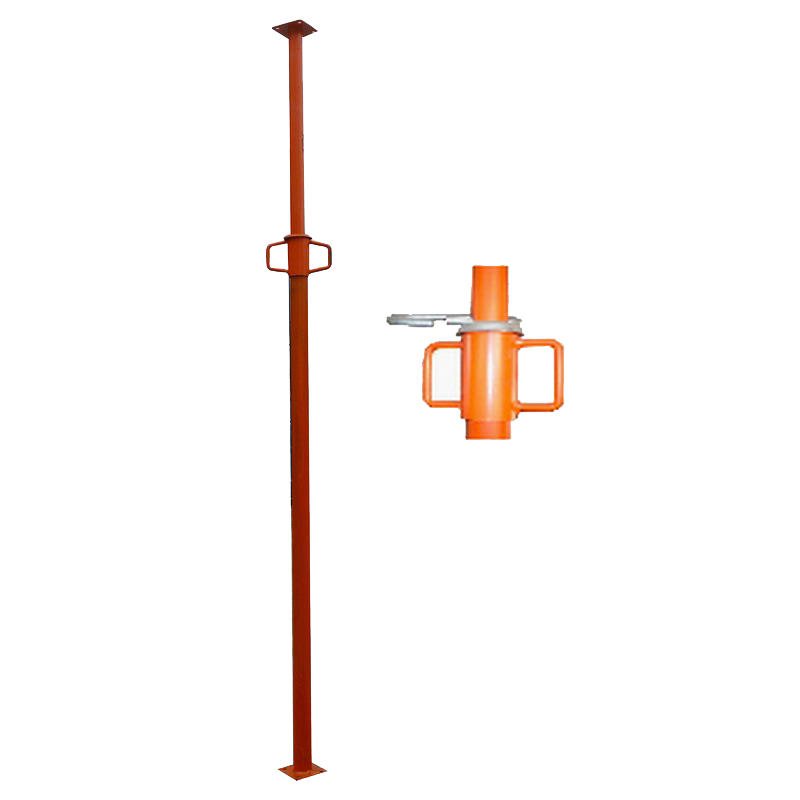

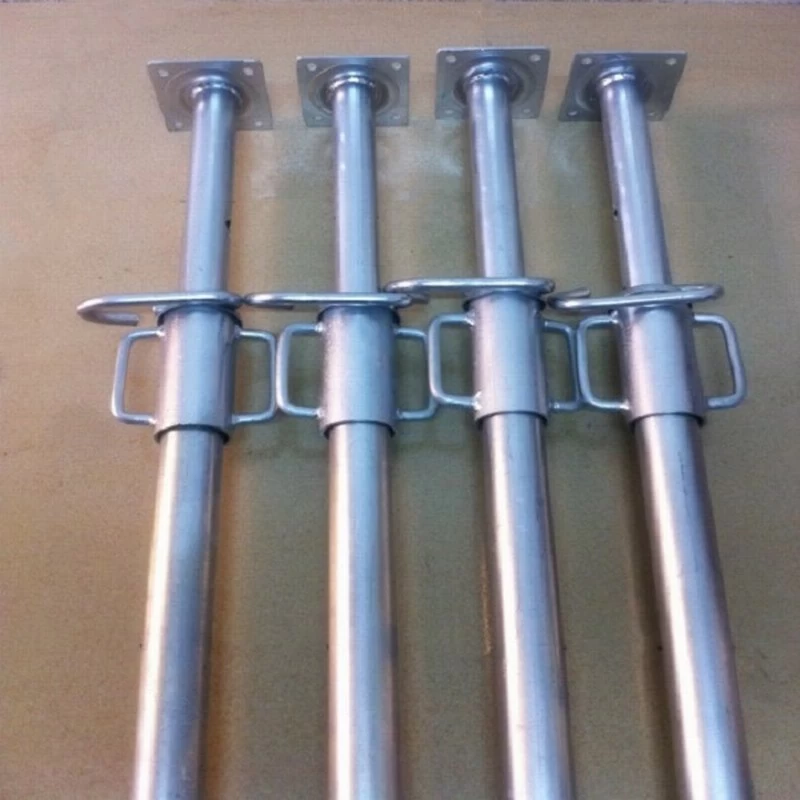

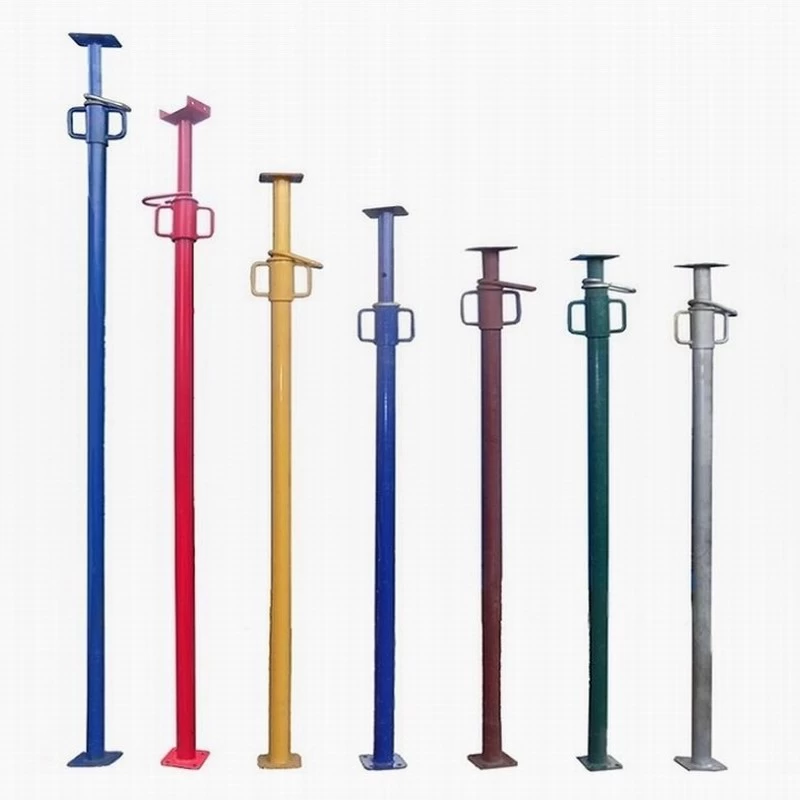

European Type of Shoring Prop is a kind of cover thread vertical shoring scaffolding for construction. Made by OD48mm Inner Tube / OD56mm Outer Tube or OD41mm Inner Tube / OD48mm Outer Tube, with Prop Sleeve Cup, Prop G Pins, Prop Base Plate and Top Plate (Top U Head / Fork Head) use as vertical support for concrete formwork system of slab formwork, roof formwork, table formwork, wall formwork , beam formwork and construction scaffolding buildings.
Product Details:
Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=2.5mm
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Specification
|
Weight(kg)
|
Weight(lbs)
|
|
MDPR.18.DC2.5
|
1100-1800mm
|
3'7"--5'11"
|
Outer pipe OD56x2.5mm, Inner pipe OD48x2.5mm, End plate120x120x5mm, Cover thread. Grade Q235
|
9.19
|
20.25
|
|
MDPR.29.DC2.5
|
1600-2900mm
|
5'3"--9'6"
|
12.57
|
27.71
|
|
MDPR.32.DC2.5
|
1800-3200mm
|
5'11"--10'6"
|
13.46
|
29.67
|
|
MDPR.36.DC2.5
|
2000-3600mm
|
6'7"--11'10"
|
14.68
|
32.37
|
|
MDPR.40.DC2.5
|
2200-4000mm
|
7'3"--13'2"
|
15.90
|
35.06
|
|
MDPR.45.DC2.5
|
2500-4500mm
|
8'2--14'9"
|
17.40
|
38.37
|
|
MDPR.50.DC2.5
|
2900-5000mm
|
9'6"--16'5"
|
18.85
|
41.57
|
Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=2.2mm
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Specification
|
Weight(kg)
|
Weight(lbs)
|
|
MDPR.18.DC2.2
|
1100-1800mm
|
3'7"--5'11"
|
Outer pipe OD56x2.2mm, Inner pipe OD48x2.2mm, End plate120x120x5mm, Cover thread.
|
8.48
|
18.70
|
|
MDPR.29.DC2.2
|
1600-2900mm
|
5'3"--9'6"
|
11.25
|
24.81
|
|
MDPR.32.DC2.2
|
1800-3200mm
|
5'11"--10'6"
|
12.26
|
27.04
|
|
MDPR.36.DC2.2
|
2000-3600mm
|
6'7"--11'10"
|
13.34
|
29.42
|
|
MDPR.40.DC2.2
|
2200-4000mm
|
7'3"--13'2"
|
14.42
|
31.80
|
|
MDPR.45.DC2.2
|
2500-4500mm
|
8'2--14'9"
|
15.75
|
34.73
|
|
MDPR.50.DC2.2
|
2900-5000mm
|
9'6"--16'5"
|
17.04
|
37.57
|
Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=2.0mm
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Specification
|
Weight(kg)
|
Weight(lbs)
|
|
MDPR.18.DC2.0
|
1100-1800mm
|
3'7"--5'11"
|
Outer pipe OD56x2.0mm, Inner pipe OD48x2.0mm, End plate120x120x5mm, Cover thread.
|
8.00
|
17.65
|
|
MDPR.29.DC2.0
|
1600-2900mm
|
5'3"--9'6"
|
10.51
|
23.18
|
|
MDPR.32.DC2.0
|
1800-3200mm
|
5'11"--10'6"
|
11.46
|
25.26
|
|
MDPR.36.DC2.0
|
2000-3600mm
|
6'7"--11'10"
|
12.44
|
27.44
|
|
MDPR.40.DC2.0
|
2200-4000mm
|
7'3"--13'2"
|
13.43
|
29.61
|
|
MDPR.45.DC2.0
|
2500-4500mm
|
8'2--14'9"
|
14.64
|
32.29
|
|
MDPR.50.DC2.0
|
2900-5000mm
|
9'6"--16'5"
|
15.82
|
34.88
|
Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=1.8mm
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Specification
|
Weight(kg)
|
Weight(lbs)
|
|
MDPR.18.DC1.8
|
1100-1800mm
|
3'7"--5'11"
|
Outer pipe OD56x1.8mm, Inner pipe OD48x1.8mm, End plate120x120x5mm, Cover thread.
|
7.52
|
16.59
|
|
MDPR.29.DC1.8
|
1600-2900mm
|
5'3"--9'6"
|
9.77
|
21.55
|
|
MDPR.32.DC1.8
|
1800-3200mm
|
5'11"--10'6"
|
10.64
|
23.47
|
|
MDPR.36.DC1.8
|
2000-3600mm
|
6'7"--11'10"
|
11.54
|
25.44
|
|
MDPR.40.DC1.8
|
2200-4000mm
|
7'3"--13'2"
|
12.43
|
27.40
|
|
MDPR.45.DC1.8
|
2500-4500mm
|
8'2--14'9"
|
13.52
|
29.82
|
|
MDPR.50.DC1.8
|
2900-5000mm
|
9'6"--16'5"
|
14.58
|
32.16
|
