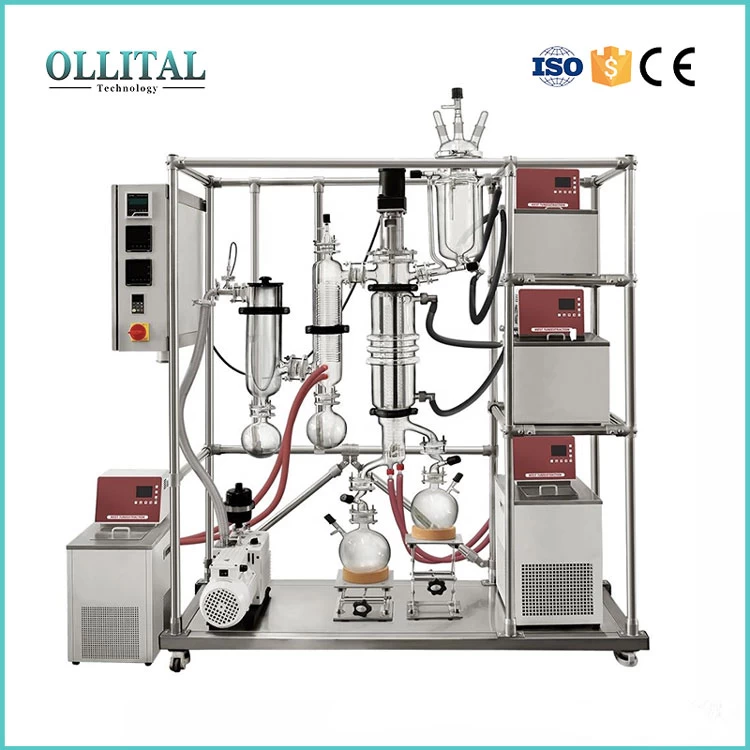

Molecular Distillation is a special liquid-liquid separation technology, which is difference boiling point.This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive material or high boiling point material, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
|
Model
|
MD-80
|
MD-100
|
MD-150
|
MD-200
|
|
Feed Rate(kg/hr)
|
1.0-20
|
1.5-30
|
2.5-40
|
3.5-70
|
|
Estimate Throughput at End of 8-10 hr/day for CBD (kg)
|
8
|
12
|
20
|
28
|
|
Effective Evaporationn Area(m2)
|
0.1
|
0.15
|
0.25
|
0.35
|
|
Motor Power (W)
|
120
|
120
|
120
|
120
|
|
Maximum Speed(rpm)
|
350
|
350
|
350
|
350
|
|
Barrel Diameter (mm)
|
80
|
100
|
150
|
200
|
|
Feeding Funel Volume( L)
|
1
|
2
|
3
|
5
|
|
Dimension(DXWXH mm)
|
2120X1740X628
|
2120X1740X628
|
2270X1940X628
|
2420x2040x628
|
|

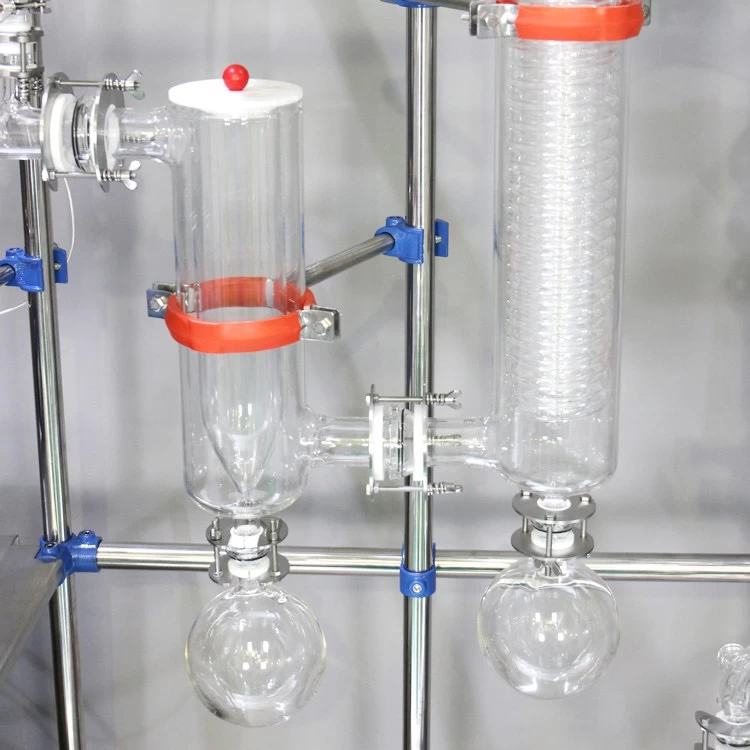

Internal Condenser Area(m)
|
0.2
|
0.3
|
0.4
|
0.5
|
|

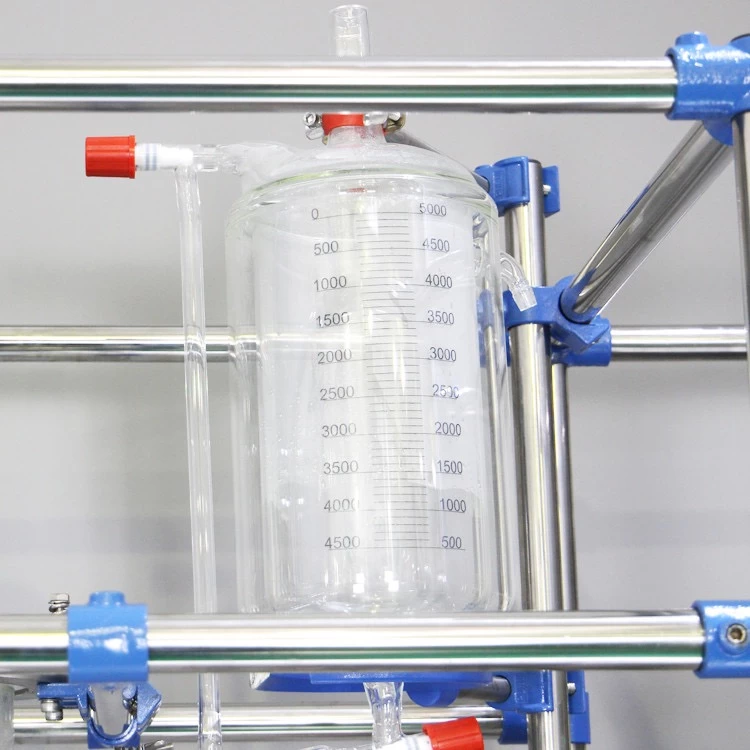

Jacketed Feeding Vessel Volume ( L)
|
1
|
2
|
3
|
5
|
|

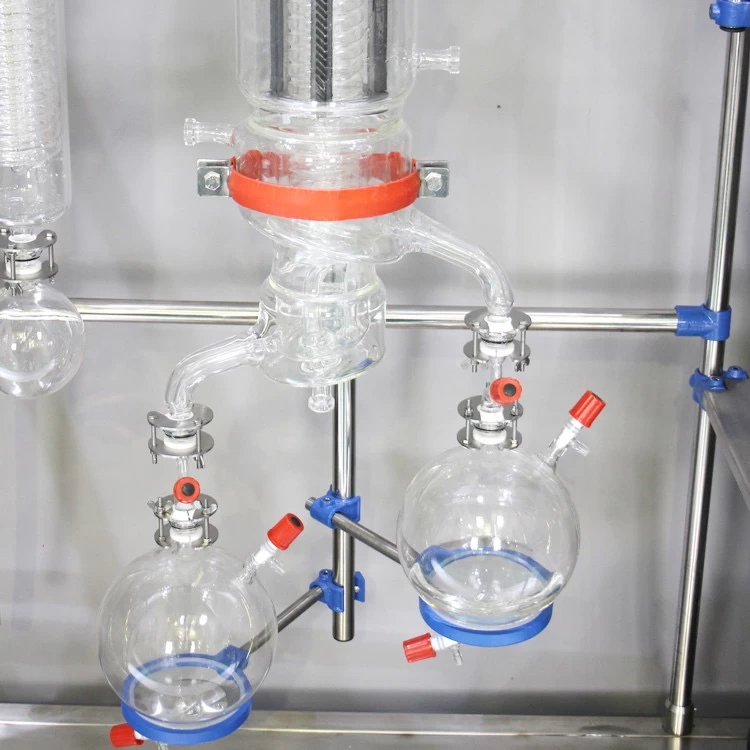

Distillate Receiving Vessel Volume(L)
|
1
|
2
|
5
|
5
|
|
Residue Receiving Vessel Volume(L)
|
1
|
1
|
3
|
5
|
|
Wiper
|
PTFE scraper
|
PTFE scraper
|
PTFE scraper
|
PTFE scraper
|
1) High evaporation efficiency can reduce retention time with minimal time delay.
2) Short path distillation is made of 3.3 high borosilicate glass and PTFE, which has excellent corrosion resistance.
3) Main body of short path distillation is made of 3.3 high borosilicate glass, allowing the whole process to be observed very clearly.
4) High-precision distillation barrel allows the liquid to form a complete and unified thinfilm on the heated surface.The smooth inner surface can aviod stick and scaling.
5) Magnetic foece transmission can make film forming system separated from mator, the top sealing of distillation barrel have no drive rod pass through. The whole system performs a completed sealing.The minimum vacuum pressure is up to 0.1Pa.
6) Highest temperature of the system can reach 230β/300β,accurate temperature cantrol can be realized.
