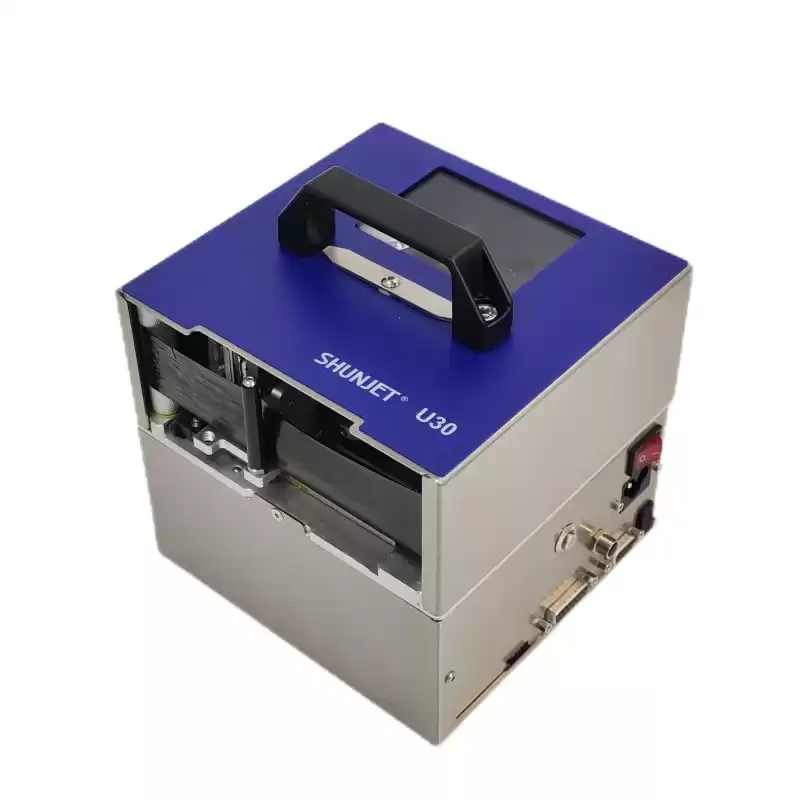

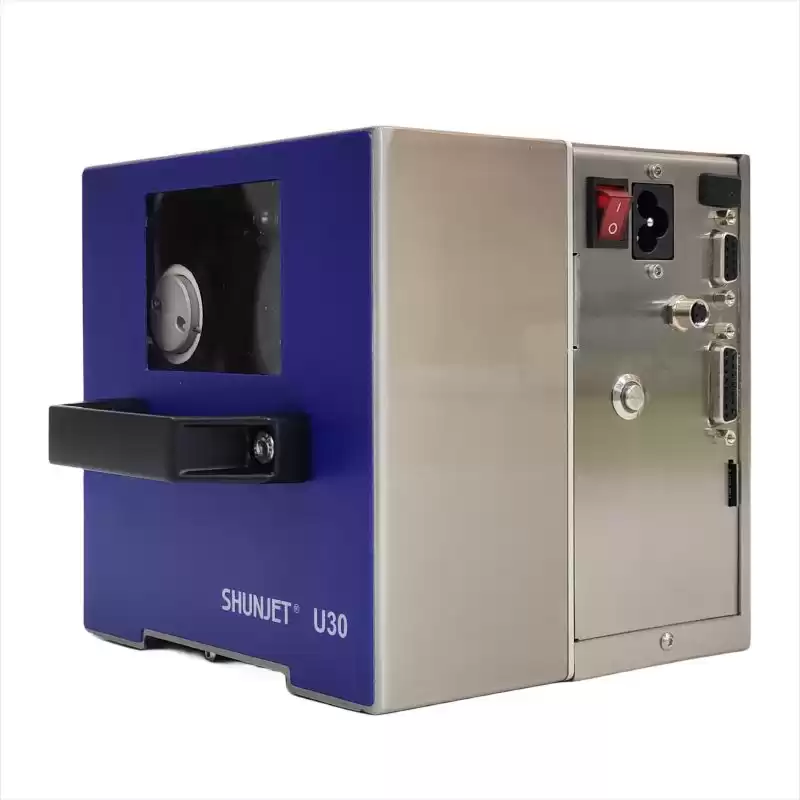

Shunjet U30 TTO Printer Thermal Transfer Overprinter 32mm
 |

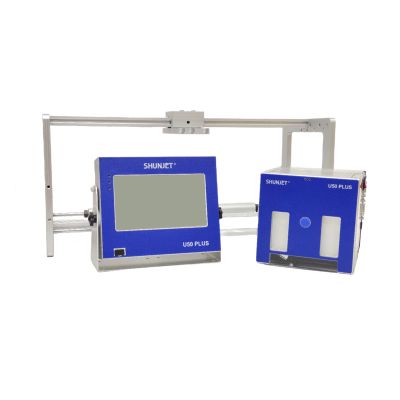

Application and Mounting Bracket Optional
For Bag Making Feeding Packaging System
For Horizontal Flow Packing Machine
For Vertical Intermittent Packing Machine
|
|

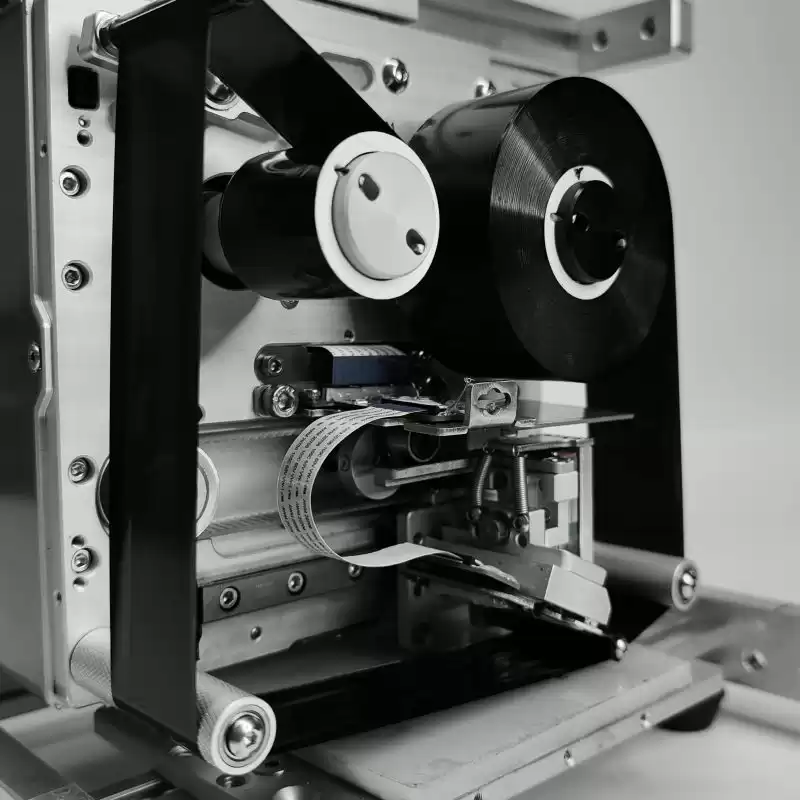

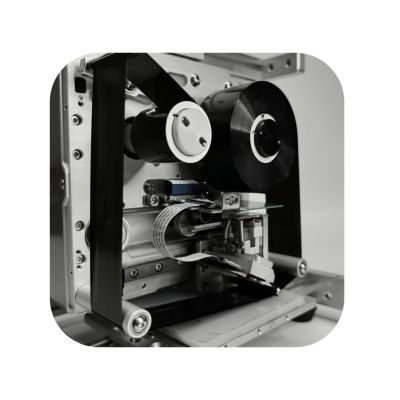

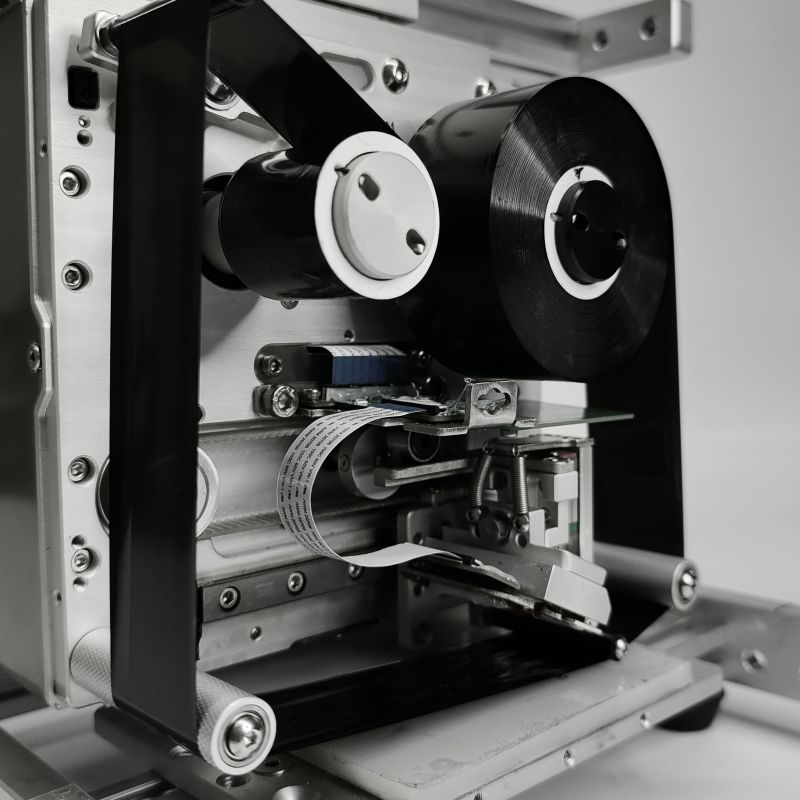

High Quality Print Head 24/32mm
Thermal transfer printing uses a high resolution (300 dpi) thermal printhead and thermal transfer ribbon. 300DPI printing quality with super strong adhesion to
prevent scratches.
|
 |
 |

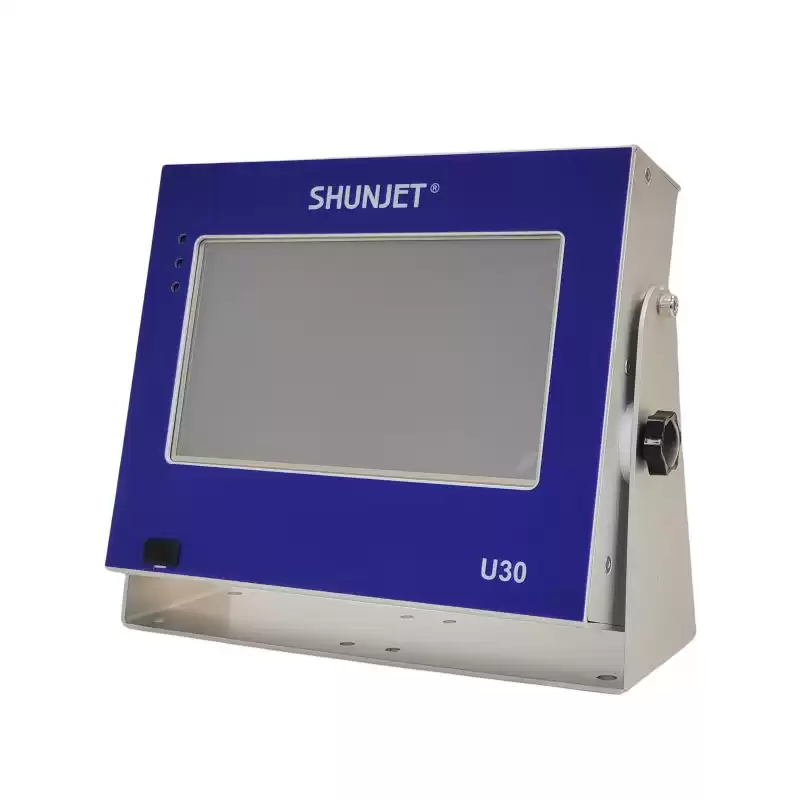

Touch Screen Controller
Touch screen controller and user-friendly interface simplifies all the operation.
Easy-to-use Design Software-all the contents can be edit and perfectly printed.
|
Various Input & Output Connections
Support interlaced, radial, multipleprint signals.you can edit it freely in PC,Mobile phone.
|
 |
□ Product Specification
|
Technical Parameters
|
|
Product No.
|
U20
|
U30
|
|
Print mode
|
Intermittent and continuous integration
|
|
Left and right direction
|
optional
|
|
Print resolution
|
200DPI
|
300DPI
|
|
Intermittent maximum printing range
|
24mm x 50mm
|
32mm x 50mm
|
|
Maximum continuous printing range
|
24mm x 120mm
|
32mm x 120mm
|
|
Intermittent printing speed
|
50~300mm/s
|
|
Continuous printing speed
|
30~600mm/s
|
|
Maximum print frequency
|
220 times/min
|
|
Maximum ribbon lengthcontent
|
400m
|
600m
|
|
Standard ribbon widthprint
|
25mm
|
33mm
|
|
Print content
|
Date, future date, time, counter, shiftbarcode,QR code, image, text
|
|
Enter
|
Print signal, encoder signal
|
|
Output
|
Fault status output (relay signal output)
|
|
Dimension
length, width and height (mm)
|
164*158*150
|
|
Weight
|
5kg
|
5.5kg
|
|
Power requirements
|
90~240 VAC, 50/60 Hz, 80 VA
|
|
Provide Android APP operating software
|
□ Print Effect
Our Advantages
Fujian Quanzhou Shunjet Precision Machinery Co.,Ltd is focusing the design,R&D and manufacture for CIJ and TTO printers, spares and consumables. It is committed to offer various marking solutions for customers around the world.The group was established in 2003,and their main team members all have more than 15 years’experiences in the CIJ/TTO industry who can provide very professional and high-quality services.
Why choose us?
1.We have more than 15 years in this line!
2.Free 3 months warranty for our long-term customers!
3.We can supply large quantity!
4.Competitive price with high quality !
5.We can accept OEM!
FAQ
Q.What's your mininum order quantity?
A:1 piece.
Q.Do you have after sales service?
A:Yes, good after sales service will be provided when you need.
Q.Do you have technical support?
A:Yes, we have very professional engineers who will help you solve your problems.
Q.How long can I get reply after enquiry?
A:Within 12 hours.
