Overview

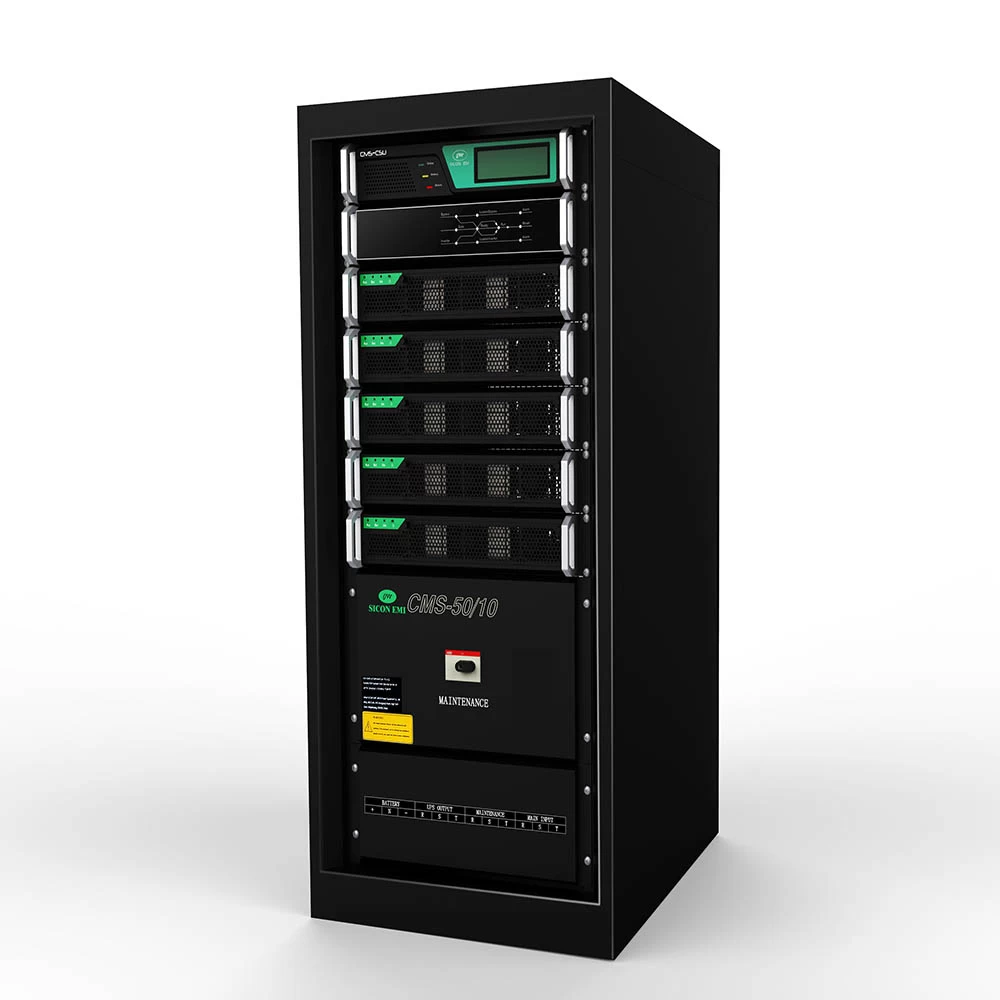

CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
1.Rational redundant structure
2.UPS module: 10 kVA; System: 50kVA
3.Great performance index：overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99 N+X module-level redundancy UPS System
4.Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
5.Each module automatically even shares the input and output current, all UPS modules share batteries
6.Battery management: Battery discharge management, auto-transfer between floating and even charging, temperature compensation
7.Space-saving high density design, Rack-based for agility and aesthetics
8.Monitor Function：C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;B/S-Oriented Architecture which is available to check via IE
9.Standard configuration：Manual maintenance bypass, SPD(Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
10.Optional configuration：EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
IDC date center, government,telecom,bank,security,transportation,broadcast&TV network, HealthCare, Communication, E-business,Finance etc.
