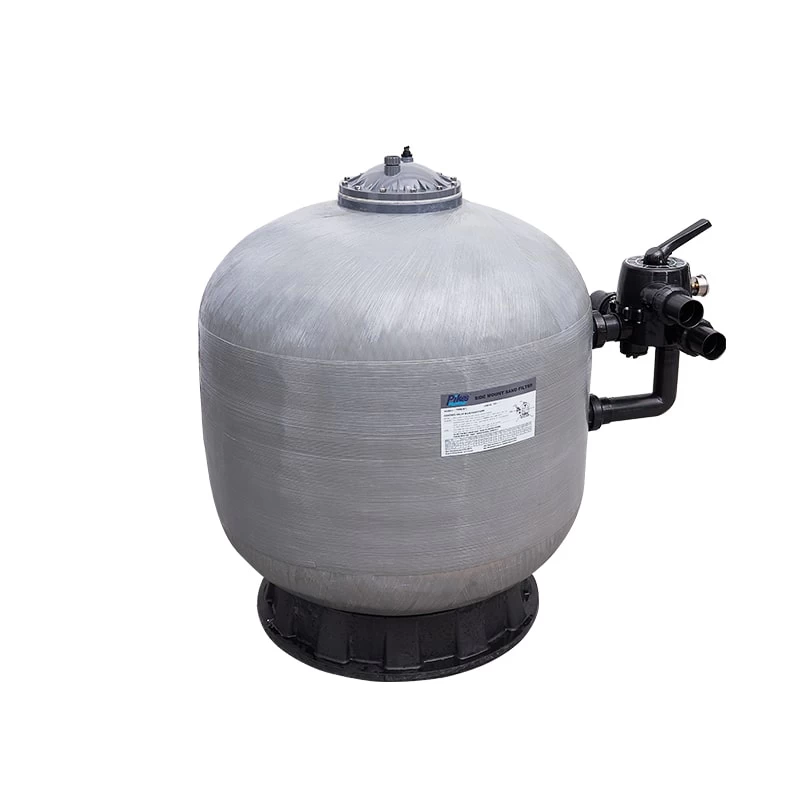

Swimming pool Side mounted Sand Filter
Swimming pool Side mounted Sand Filter is still the most popular standard in the industry after all.With UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.
The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder. All the procedures have multi-directional valve operation and regular recoil and blow-down.
"PS"series (700B-1400)filters are equipped with a six-position, clamp style muliport vale and ABS laterals.
|
Technical Characteristics |
|||||||
| Mode | Filter Area (㎡) |
Vatve Connections |
Max Flow Rate | Gravel (kg) | A mm | B mm | |
|
PS400 |
0.13 |
1.5inch 50mm |
8m³/h |
35 | 700 | 400 | |
| PS450 | 0.16 |
1.5inch 50mm |
10m³/h |
45 | 730 | 450 | |
| PS525 | 0.22 |
1.5inch 50mm |
12m³/h |
85 | 780 | 525 | |
| PS625 | 0.30 |
1.5inch 50mm |
16m³/h |
150 | 880 | 625 | |
| PS700 | 0.40 |
1.5inch 50mm |
20m³/h |
210 | 945 | 700 | |
| PS700B | 0.40 | 2.0inch 63mm | 21m³/h | 215 | 945 | 700 | |
| PS750 | 0.45 |
2.0inch 63mm |
23m³/h |
300 | 960 | 750 | |
| PS800 |
0.50 |
2.0inch 63mm |
25m³/h |
355 | 1080 | 800 | |
| PS900 | 0.64 |
2.0inch 63mm |
31m³/h |
470 | 1100 | 900 | |
| PS1000 | 0.79 |
2.0inch 63mm |
36m³/h |
620 | 1285 | 1000 | |
| PS1100 | 0.96 |
2.0inch 63mm |
42m³/h |
800 | 1380 | 1100 | |
| PS1200 | 1.13 |
2.0inch 63mm |
45m³/h |
900 | 1500 | 1200 | |
| PS1400 | 1.54 |
2.0inch 63mm |
56m³/h |
1350 | 1580 | 1400 | |
Swimming pool side mount sand filter details:
Our goal is " Quality is our culture and we will try best to provide the unsurpassed customer service"
