Sidewalk Protection Scaffolding, Sidewalk Bridge Shed Scaffolding

Sidewalk Shed is a structure constructed to protect pedestrians from objects falling from a building or construction site.

Sidewalk Bridge is required when construction work is over 40 feet high or 25 feet high for demolition work and whenever there is a dangerous condition irrespective of the height.

A sidewalk shed must be erected whenever materials will be hoisted over the sidewalk, regardless of building height or horizontal distance between building and sidewalk.




  • MaterialSteel

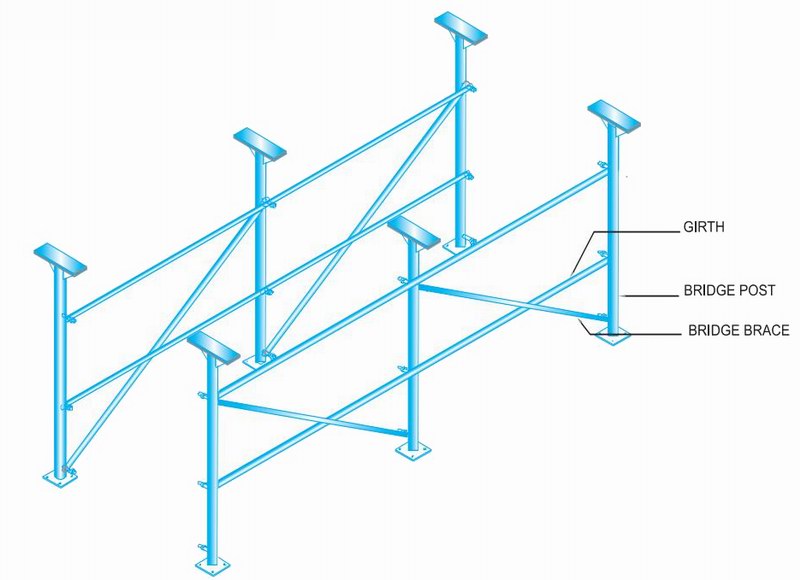

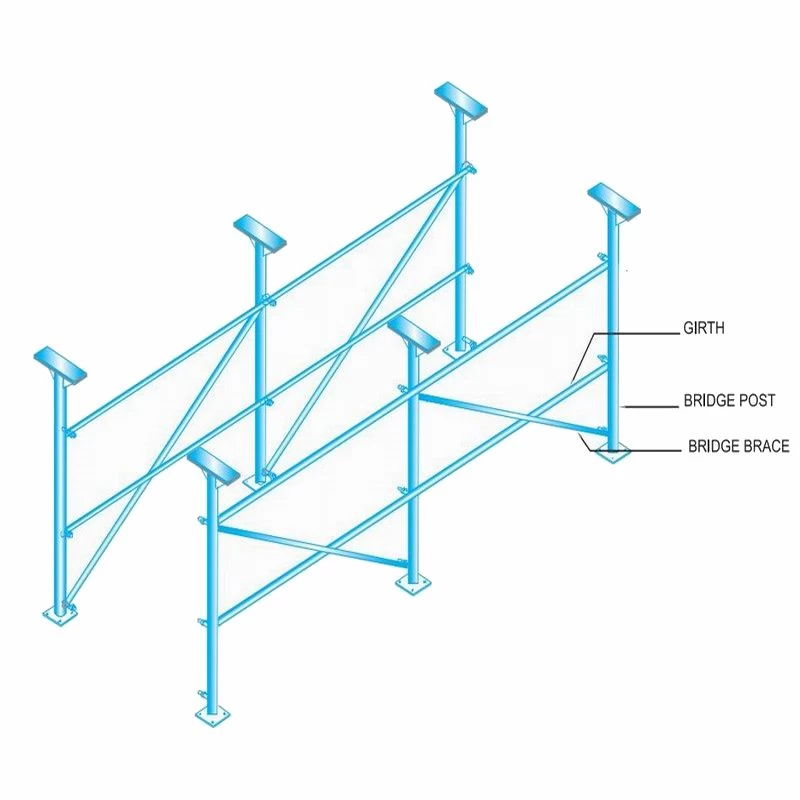

Sidewalk Bridge Shed Scaffolding

Code Description Material Weight(kg) Weight(lbs)
SBP.8 Sidewalk Bridge Post 8' Ø89x5.0mm (3.5"ODx0.196"t) 29.61  65.29
SBP.10 Sidewalk Bridge Post 10' 35.93  79.23
SBP.12 Sidewalk Bridge Post 12' 42.33  93.34
SBP.14 Sidewalk Bridge Post 14' 48.71  107.41
SBP.16 Sidewalk Bridge Post 16' 55.03  121.34
SBP.DB.124 Bridge Brace 124" Ø32x2.0mm (1.25"ODx0.078"t) 4.77  10.52
SBP.GIRT.96 Bridge Girth 96" Ø38x2.0mm (1.5"ODx0.078"t) 4.47  9.86
SBP.HC Head Clip 1.40  3.09
* Surface Treatment: Powder Coated, Painted

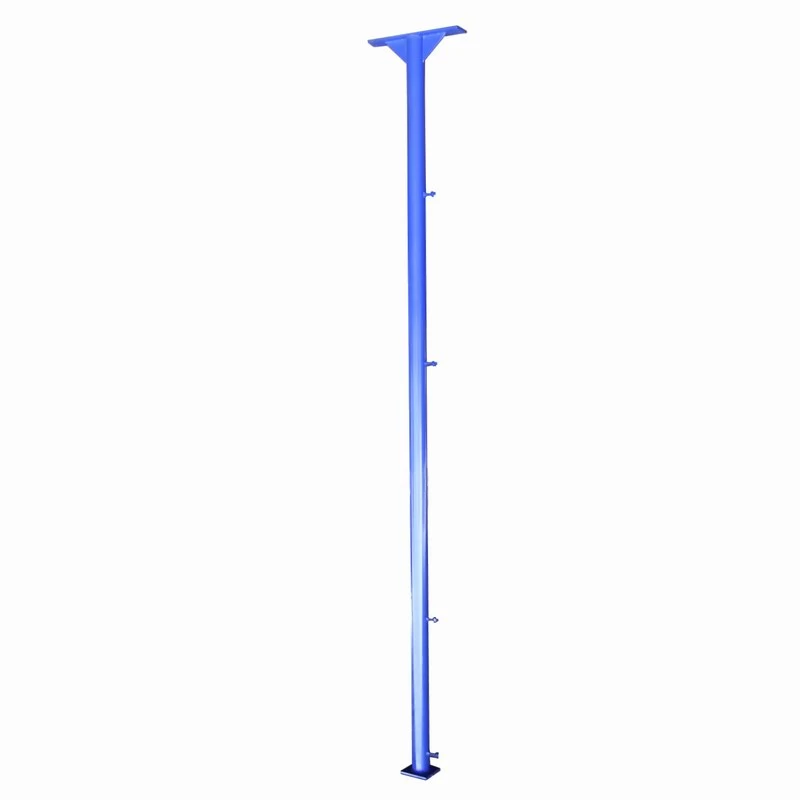

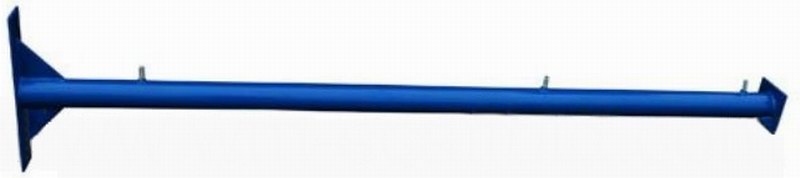

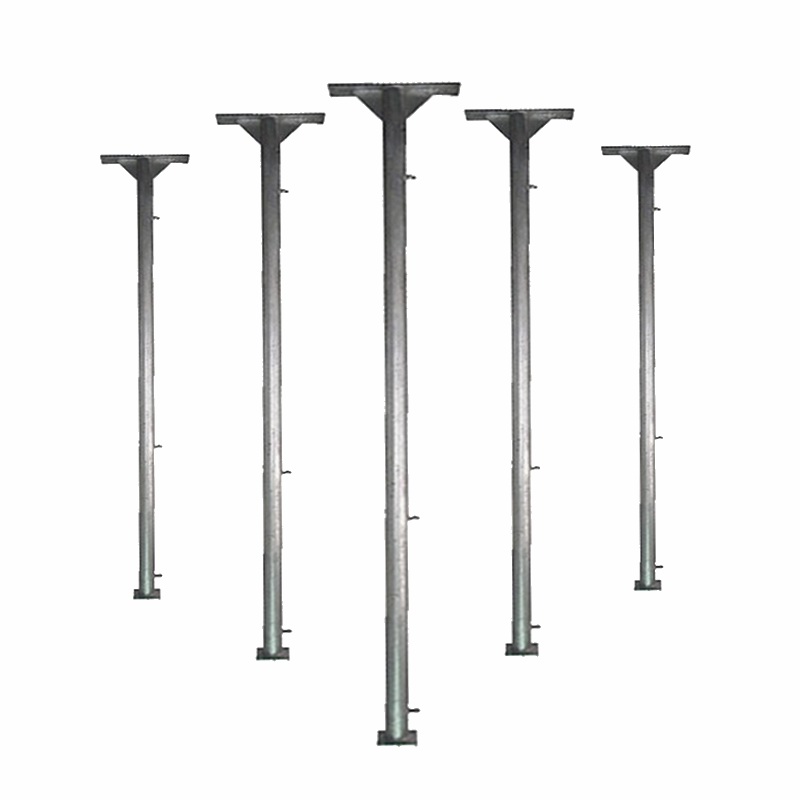

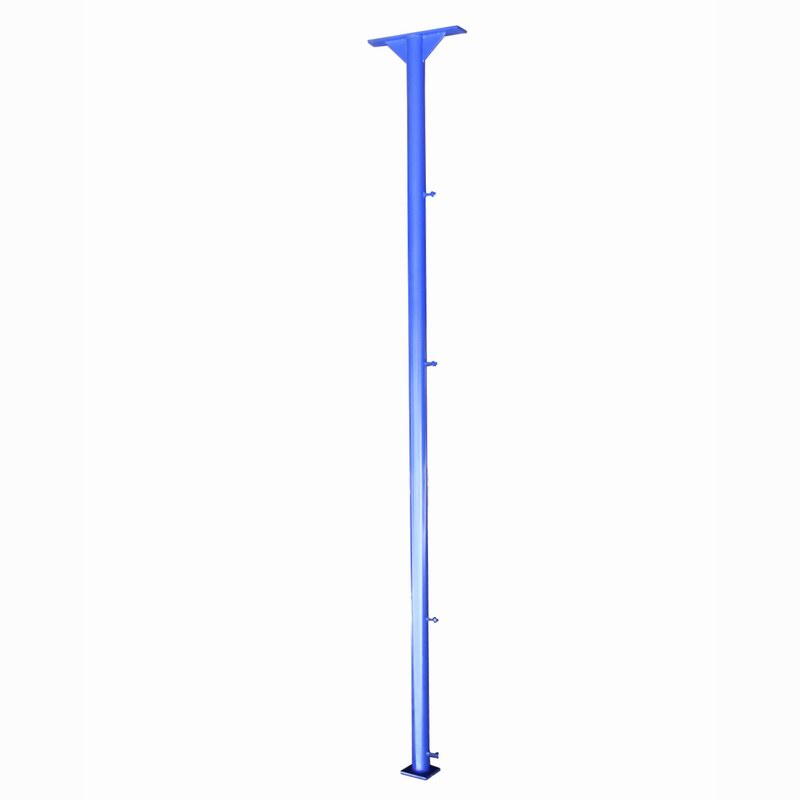

Bridge Post


Bride Girth and Brace

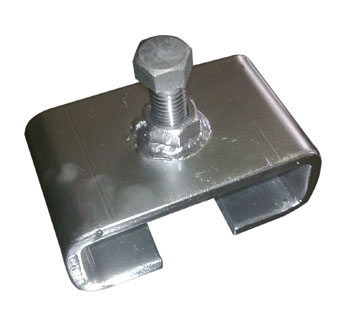

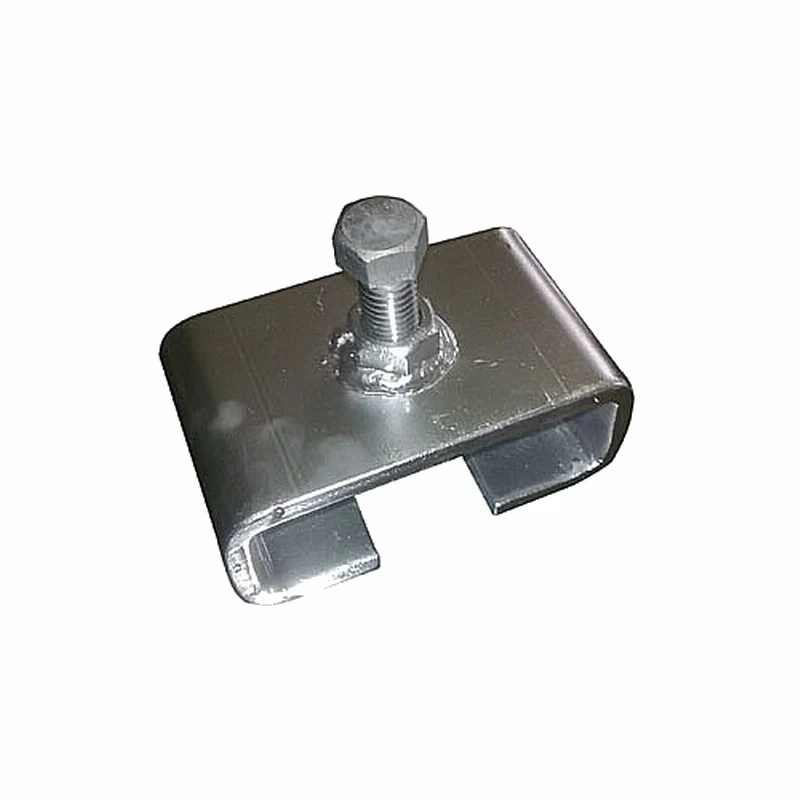

Head Clip

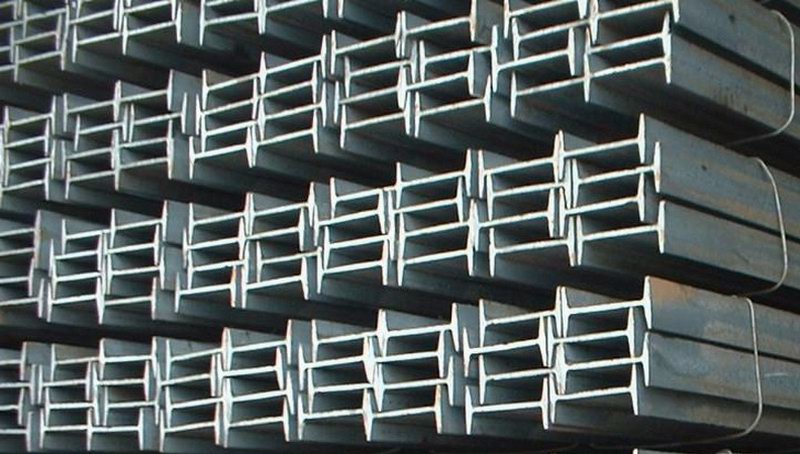

Junior Beam

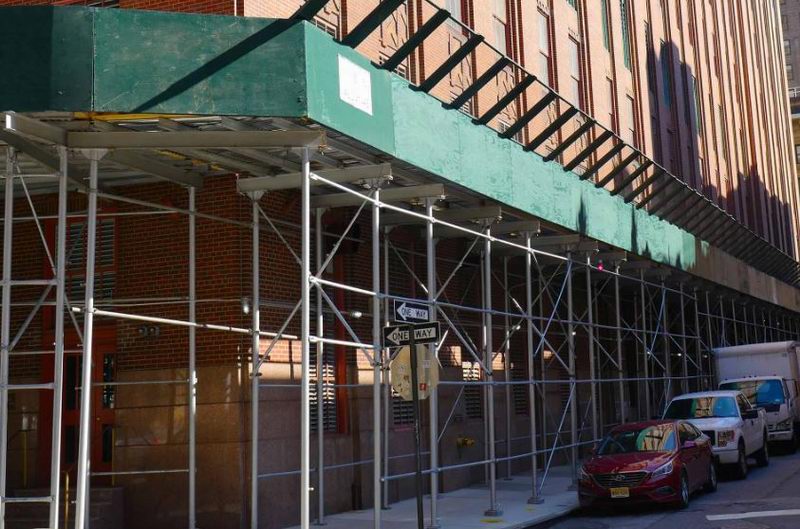

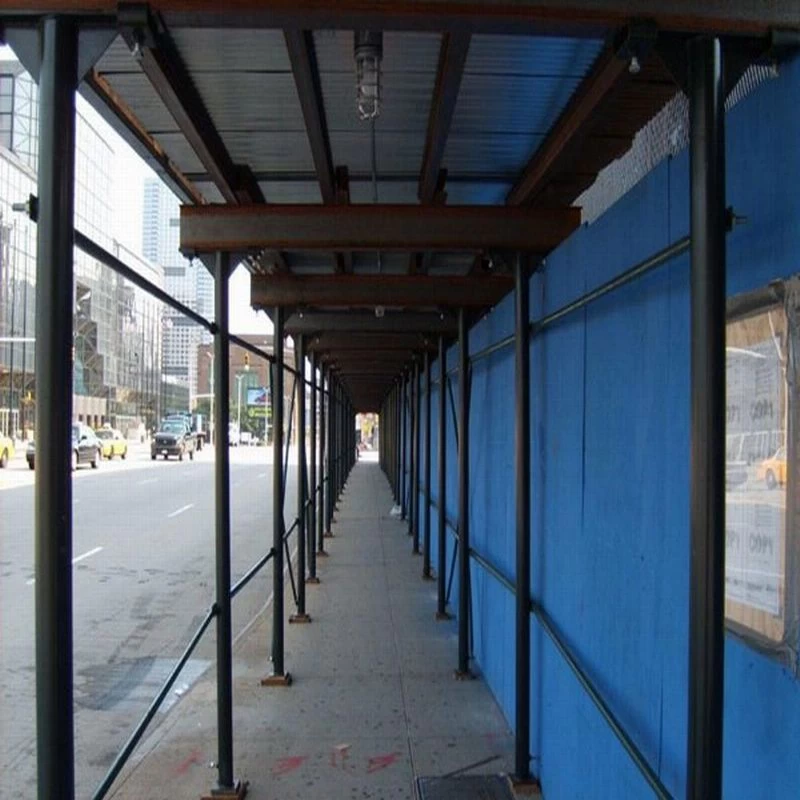

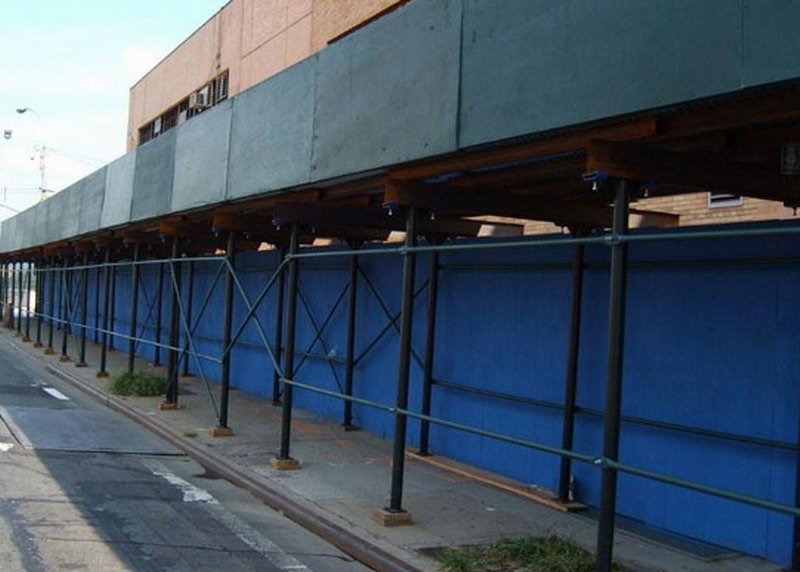

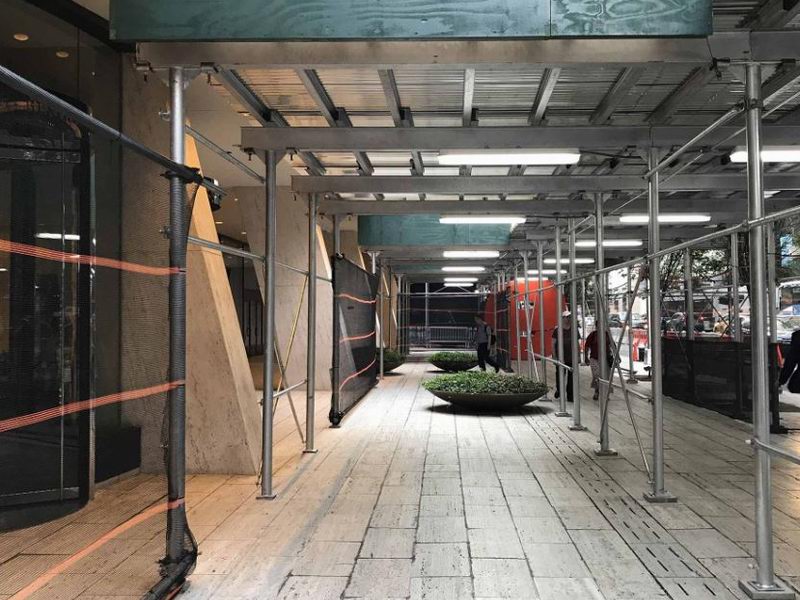

Sidewalk Bridge Post Appication
