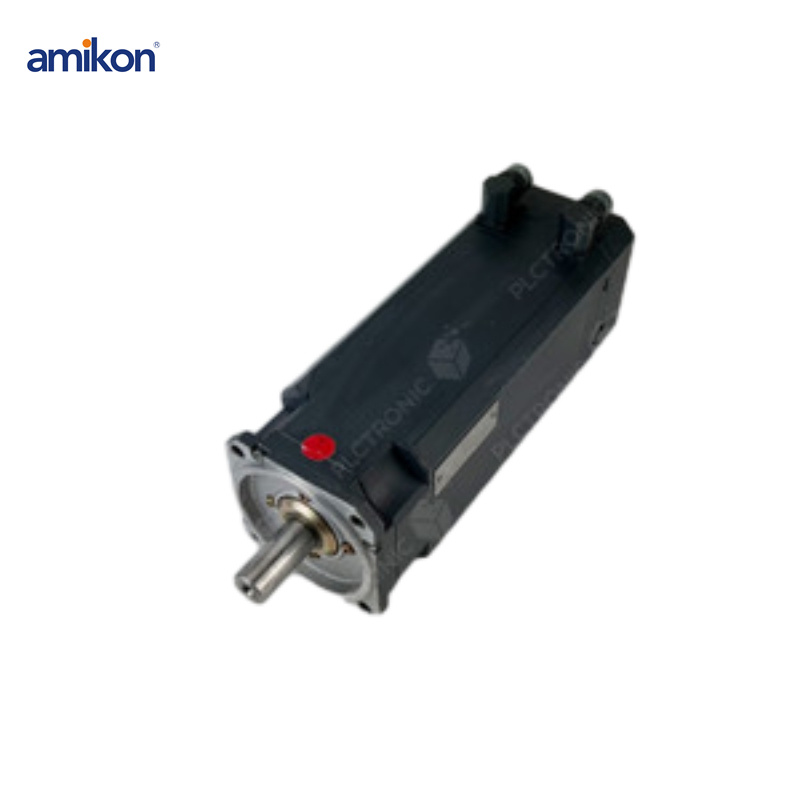

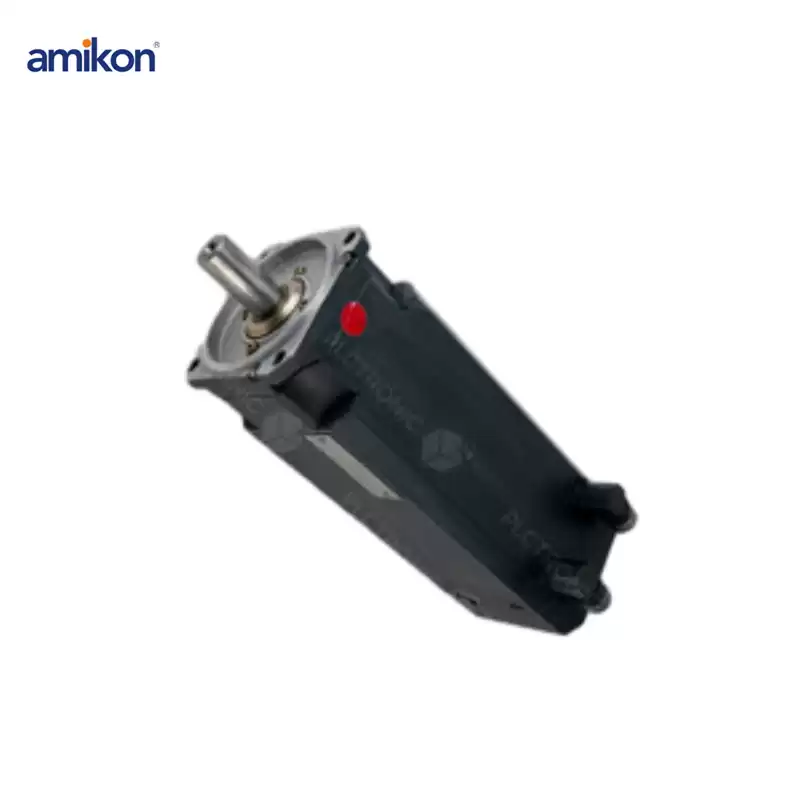

Siemens 1FT6064-6AK71-4EH1 Synchron servo motor
The Siemens 1FT6064-6AK71-4EH1 Synchron Servo Motor is part of the SIMOTICS S-1FT6 series, delivering high-precision motion control and exceptional performance for a wide range of industrial automation tasks.
This synchronous servo motor is designed to handle dynamic operations with fast acceleration, precise positioning, and high torque output, making it ideal for applications like robotics, CNC machinery, and automated manufacturing systems.
If you want to know more about 1FT6064-6AK71-4EH1 , please contact me
Email Skype Wechat Whatsapp
sales17@amikon.cn +86 189 65196563 Amikonplc +86 189 65196563
Technical specifications
Model Number: 1FT6064-6AK71-4EH1
Motor Type: Synchronous servo motor
Rated Power: 3.5 kW
Rated Torque: 14.8 Nm
Rated Speed: 4500 RPM
Max Speed: 6000 RPM
Rated Voltage: 400V AC
Rated Current: 8.2 A
Encoder Type: 20-bit absolute encoder (high-resolution for precise feedback)
Cooling Method: Natural convection
Shaft Type: Plain shaft with key
Mounting Type: Flange mount
Inertia: 0.62 kg·m²
Protection Class: IP65 (dust tight and protected against water jets)
Operating Temperature Range: -20°C to +40°C
Weight: 13 kg
Standards Compliance: IEC 61800-5-1, CE, UL, RoHS
