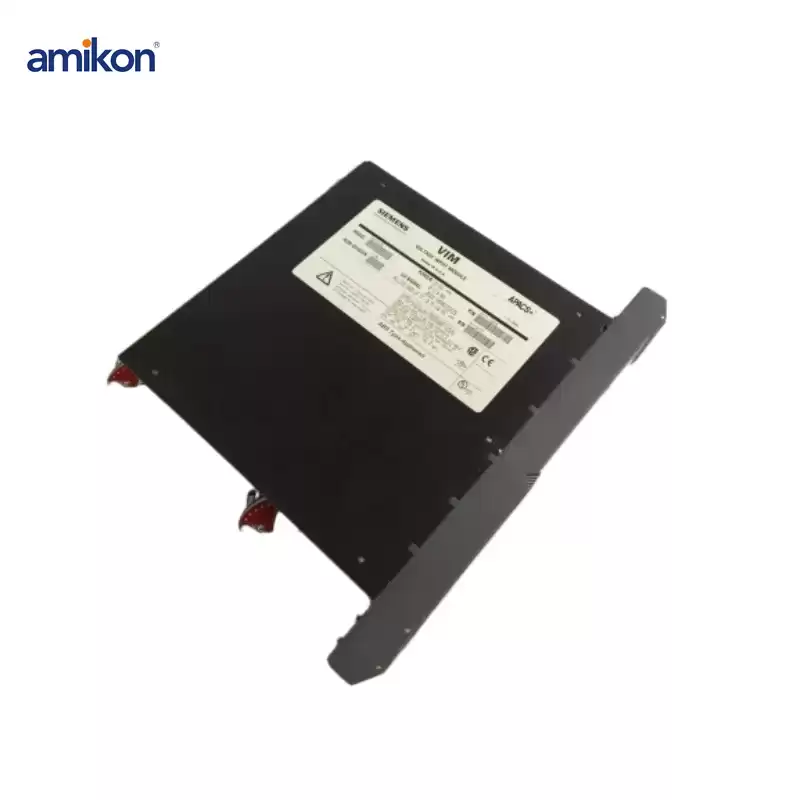

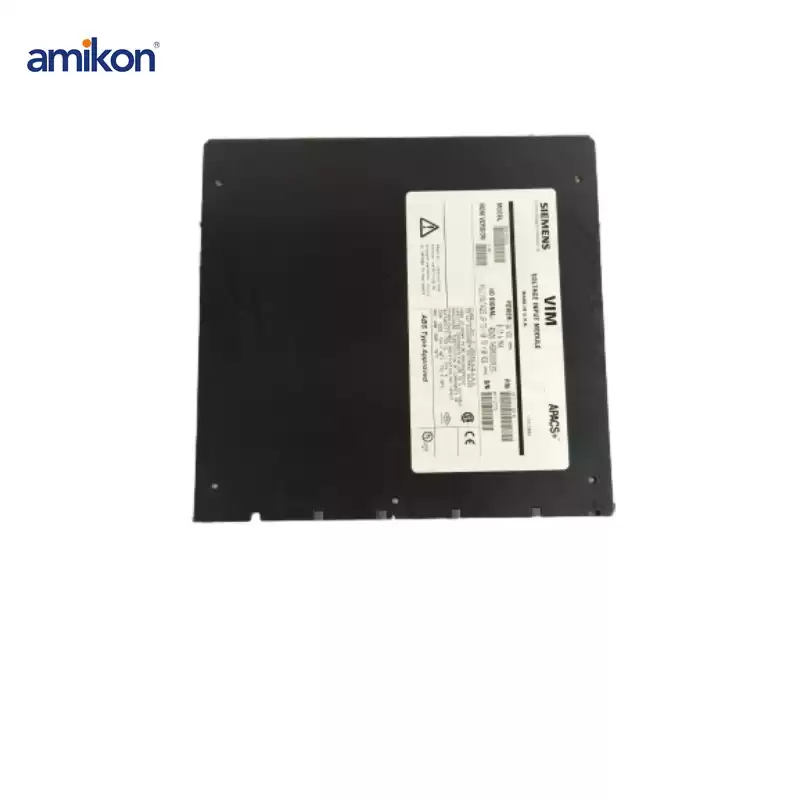

Siemens 39VIMCCN 16171-126/6 Voltage Input Module
|
Parameter
|
Description
|
|
Module Type
|
Analog Input/Output Module
|
|
Model Number
|
39VIMCCN 16171-126/6
|
|
Input/Output Type
|
Analog Input
|
|
Number of Channels
|
Typically 4 or 8 (please verify exact number)
|
|
Signal Type
|
Voltage or Current (please specify)
|
|
Input Range
|
For Voltage: ±10V, ±5V, 0-10V (or specific ranges)
|
|
Current Range
|
4-20 mA, 0-20 mA (or specific ranges)
|
|
Resolution
|
12-bit or 16-bit (depends on the module)
|
|
Accuracy
|
±0.1% to ±0.5% of Full Scale (depends on the model)
|
|
Sampling Rate
|
Typically 1 ms per channel or as specified
|
|
Isolation
|
Electrical isolation from system (e.g., 500V)
|
|
Power Supply
|
Voltage: 24V DC (common)
|
|
Dimensions
|
Check specific dimensions (e.g., 120 x 120 x 75 mm)
|
|
Mounting
|
DIN Rail Mountable
|
|
Communication
|
CAN Bus (for communication with other modules)
|
|
Operating Temperature
|
-20°C to +60°C (or as specified)
|
|
Compliance
|
CE, UL (or as specified)
|
Contact Information!
Discuss pricing and delivery time with a sales representative
+86 189 6519 6563
sales17@amikon.cn
+86-189 6519 6563
Amikonplc
The Siemens 39VIMCCN 16171-126/6 Analog Module is a high-performance component designed for integrating analog signal processing within Siemens automation systems.
This module offers reliable and accurate analog input capabilities, essential for various industrial applications where precise measurement and control are required.
Key Features:
- **Versatile Signal Input**: The 39VIMCCN 16171-126/6 supports multiple input types, including voltage and current signals. It accommodates a range of input voltages (e.g., ±10V, ±5V, 0-10V) and current signals (e.g., 4-20 mA, 0-20 mA), providing flexibility for different sensor and measurement applications.
- **High Resolution and Accuracy**: With 12-bit or 16-bit resolution, this module ensures detailed signal resolution and high measurement accuracy, typically within ±0.1% to ±0.5% of the full scale, depending on the specific configuration.
- **Fast Sampling Rate**: The module offers rapid sampling capabilities, generally around 1 millisecond per channel, to ensure timely data acquisition and processing for dynamic and real-time applications.
