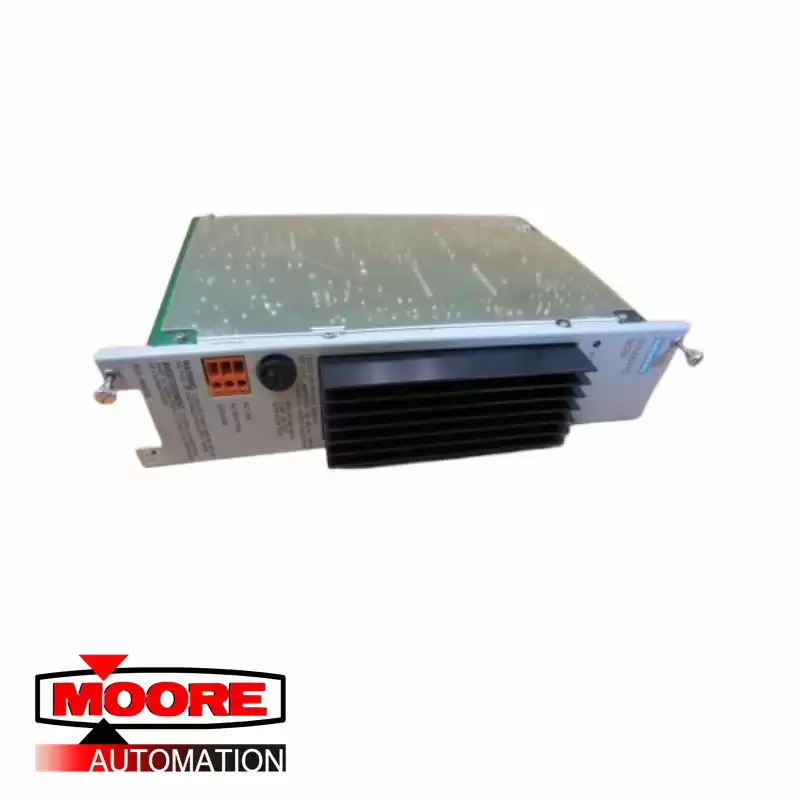

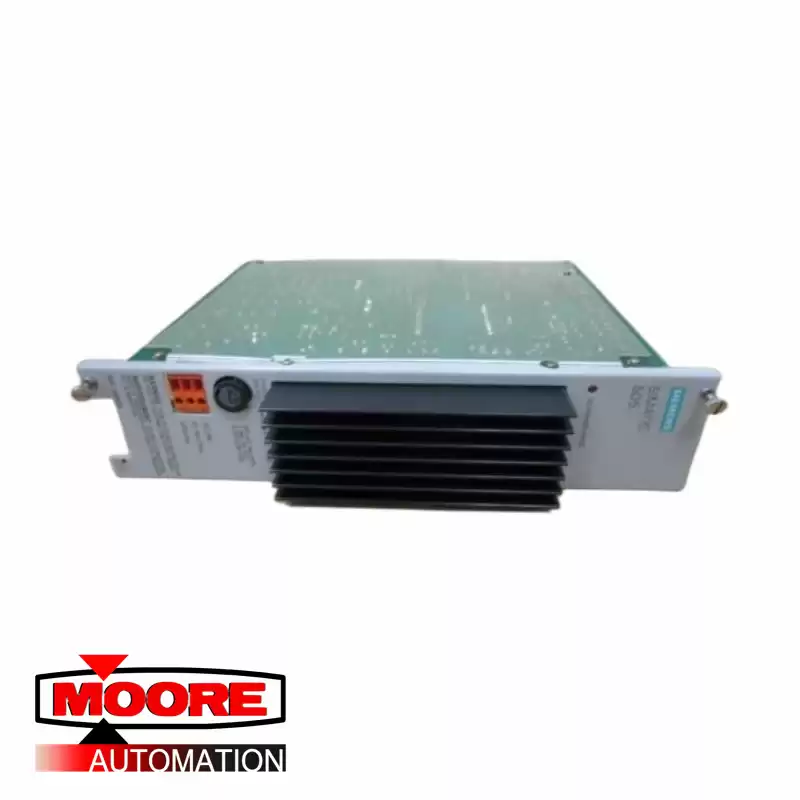

Product Description:
The total power consumption of all I/O modules (including the CPU or RBC)
drawing power from a Series 505 power supply must not exceed 55.0 W from
the +5 VDC output and 3.75 W from the β5 VDC output. Refer to
Appendix B for power consumption listings for the CPU and all currently
available Series 505 I/O modules and RBCs.
All current Series 505 power supply modules can supply up to 55 watts of
power to the modules listed in Table B-3.
You can increase the available power by using two power supplies in the
505β6511 Redundant Base for a total of 90 watts if the redundant mode is
not required. In this case, if one power supply module fails, the other power
supply module trips off as well when the actual load is above its 55 watt
capacity.
