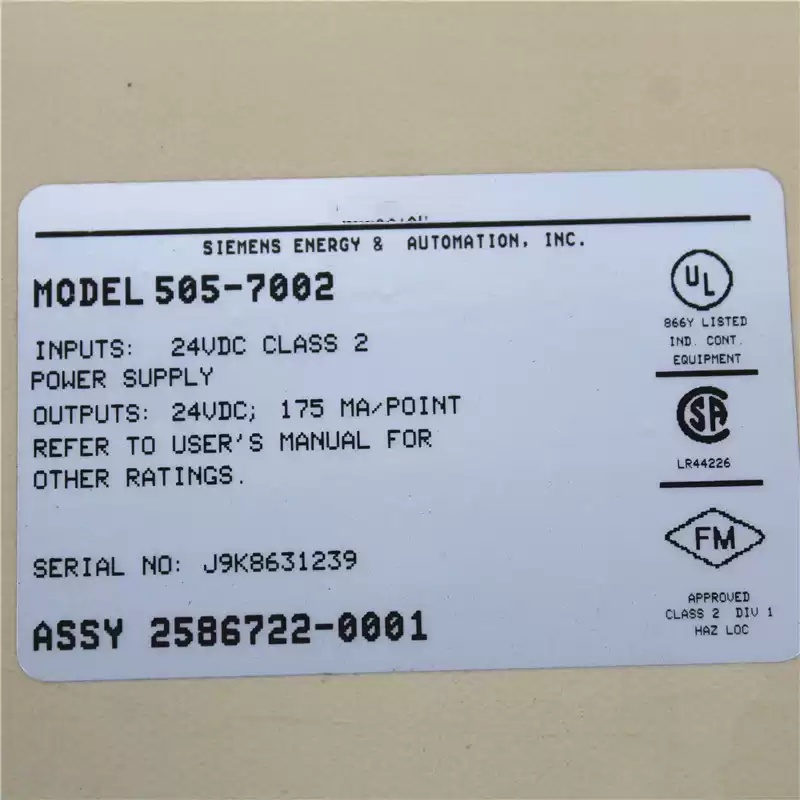

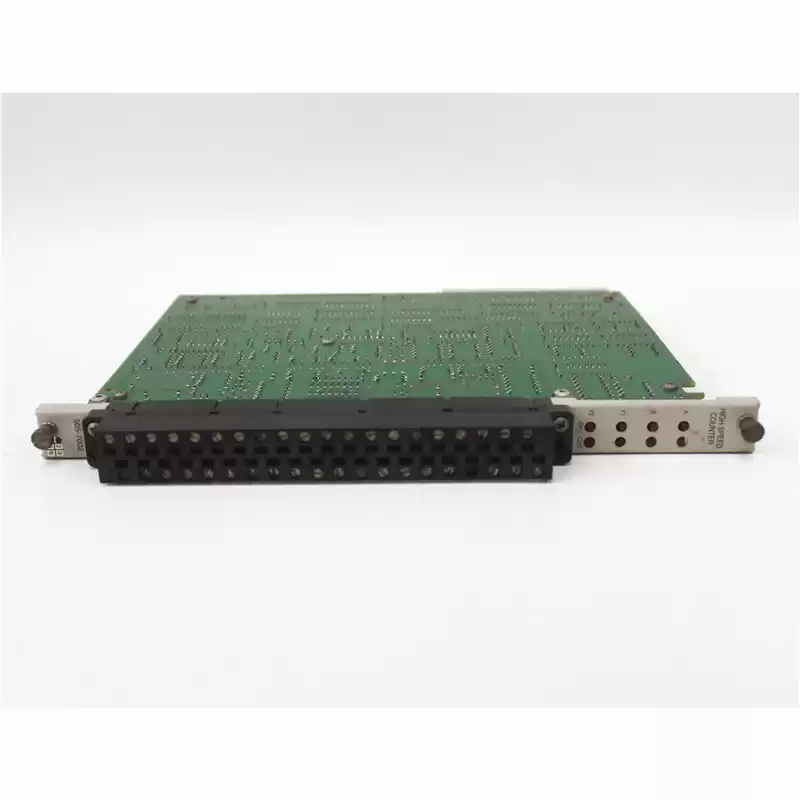

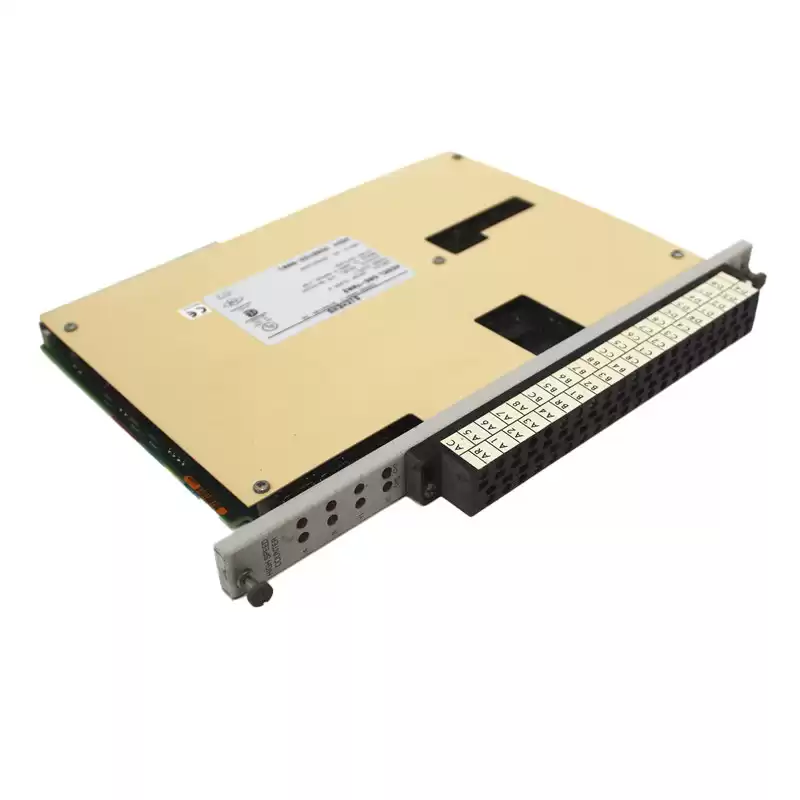

SIEMENS 505-7002 High Speed Counter (HSC) Module

Module NO: 505-7002

Brand: SIEMENS

Condition:Used

Warranty: 3 months

Regarding product price: Affected by market fluctuations, please contact us to confirm the price of the final transaction before placing an order



 505-7002

  Product Details:

  • The Series 505 High Speed Counter (HSC) module (PPX:505-7002) provides two independent high-speed counter channels.
  • Each channel has the following features.
  • Four counter modes:

         Pulse counter

         Quadrature counter modes: 1X, 2X, 4X

  • A 10 kHz count rate with a minimum pulse width of 25 s.
  • Four inputs:

           two count inputs

           reset

           inhibit

  • Two field outputs, each controlled by a separate programmable preset.
  • LED indicators display the status of the A and B count inputs, and of Y1 and Y2 outputs.
  • All inputs may be sinking or sourcing (with external 24 VDC power supply).
  • The HSC module operates asynchronously from the controller scan. You can program the controller to monitor the HSC and/or to provide high-level control of the HSC’s operation. To support these functions, the HSC provides reset, inhibit, output and counter status to the controller and accepts reset and inhibit commands, and preset values from the controller.
