Description
|

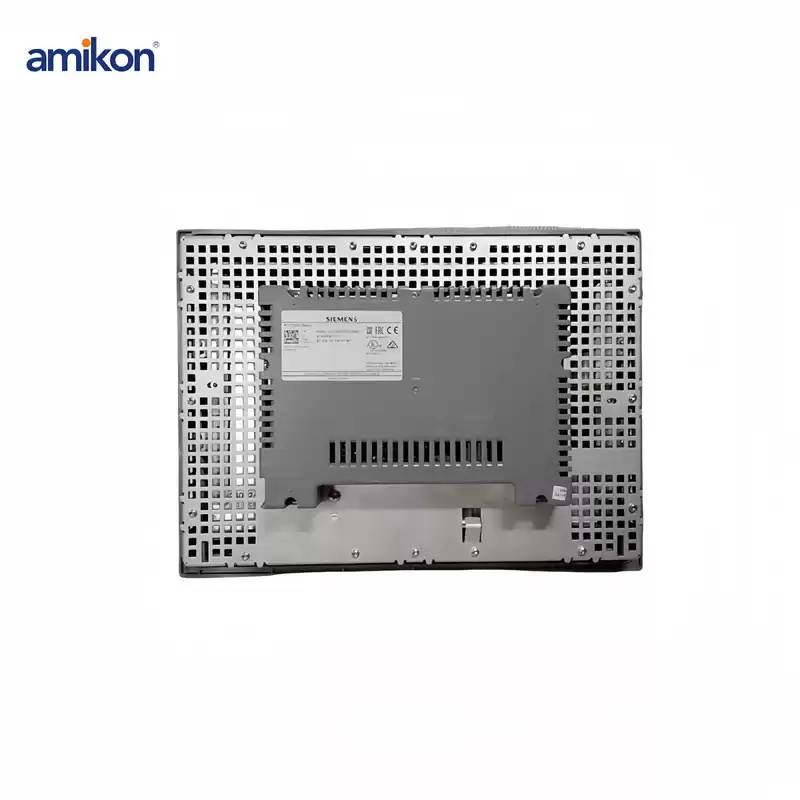

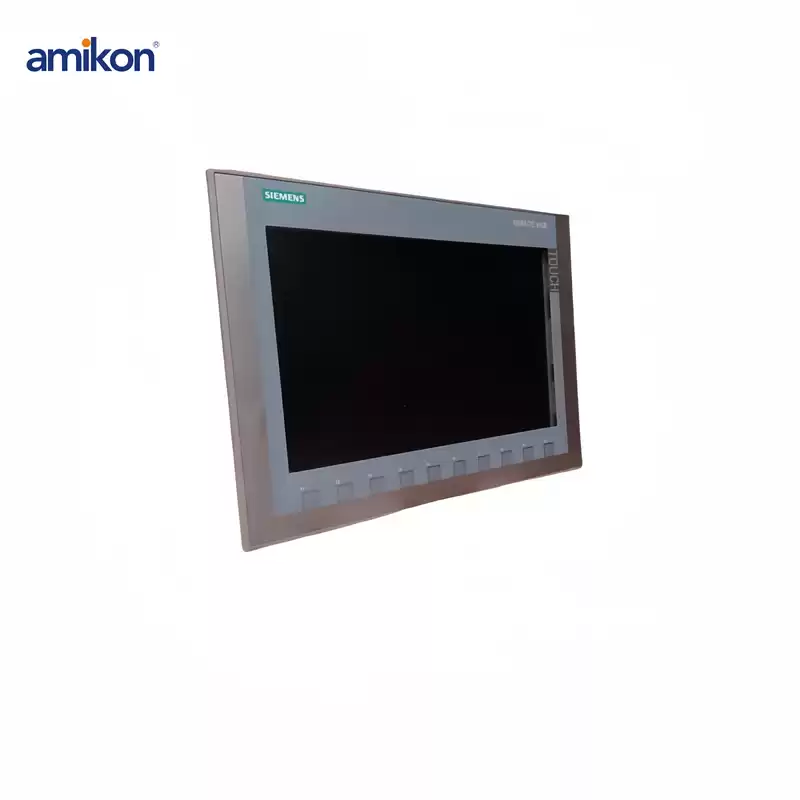

Siemens 6AV2123-2MB03-0AX0 Basic Panel KTP
|
|
Part Number
|
6AV2123-2MB03-0AX0
|
|
Manufacturer
|
Siemens
|
|
Description
|
SIMATIC HMI, KTP1200 BASIC, BASIC PANEL, KEY AND TOUCH
OPERATION, 12" TFT DISPLAY, 65536 COLORS, PROFINET INTERFACE, CONFIGURATION FROM WINCC BASIC V13/ STEP7
BASIC V13, CONTAINS OPEN SOURCE SW WHICH IS PROVIDED.
|
|
Quantity Available
|
In Stock
|
|
Weight
|
0.3 kg
|
|
Dimension
|
15.2x2.5x17.8cm
|
|
6AV2123-2MB03-0AX0 Price
|
Request Price & Lead Time Onlineor Email us: sales17@amikon.cn
|
Technical properties
Design of display TFT widescreen display, LED backlighting
Screen diagonal 12 in
Display width 261.1 mm
Display height 163.2 mm
Number of colors 65 536
Resolution (pixels)
● Horizontal image resolution 1280
● Vertical image resolution 800
Backlighting
● MTBF backlighting (at 25 °C) 20000 h
● Dimmable backlight Yes
Keyboard
● Function keys
— Number of function keys 10
● Keys with LED No
● System keys No
● Numeric/alphabetical input
— Numeric keyboard Yes; Onscreen keyboard
— Alphanumeric keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes
