Specifications
| Primary brand |
Siemens |
| Main function |
HMI / Display unit |
| Product series / family name |
SIMATIC |
| Sub-range name |
TP series |
| Functions |
HMI comfort panel
Backlight dimmable
Hardware clock (real-time)
Speaker
Web browser
Pocket Word
Pocket Excel
PDF Viewer
Media Player
SIMATIC WinCC SmartSever
SIMATIC WinCC Audit
Visual Basic Scripts
Time-controlled
Task-controlled
Help system
32 online/runtime languages
500 recipes
6000bit messages
750 configurable images
4096 variables
MRP
MPI |
| Design |
touch-screen operation |
| Supply voltage (DC) |
24Vdc |
| Display |
Wide-screen 15.4" 1280x800pixels (WxGA) TFT LCD 16.7M color display with LED backlight |
| Memory capacity |
24MBytes (ROM) |
| Connection type |
RJ45 connectors x 2
D-Sub connector
USB 2.0 ports x 2
SD card slots x 2 |
| Communication protocol |
PROFINET
PROFINET IO
PROFIBUS DP
RS-485
RS-422 |
| Mounting mode |
Portrait / Landscape flush |
| Degree of protection |
IP65 |
| Net Height (mm) |
310 mm |
| Net Width (mm) |
415 mm |
| Material |
Aluminium (front) |
| Ambient air temperature for operation |
0...+50 °C |
| Replaces |

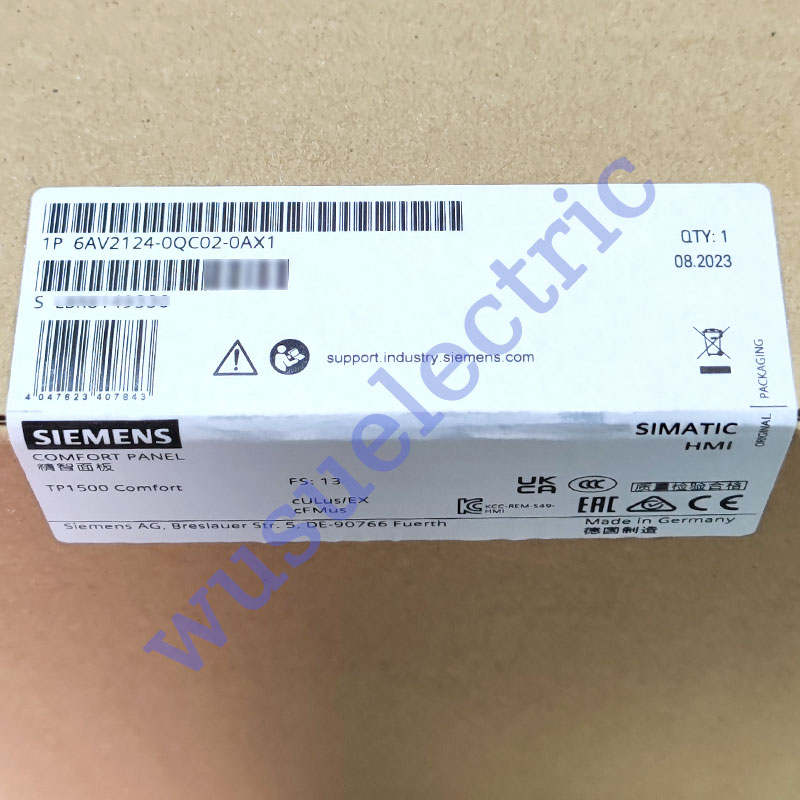

6AV2124-0QC02-0AX0 |
| Equivalent to |
6AV21240QC020AX1 |
| EAN code |
4047623407843 |
| UPC code |
804766523915 |
| Compliant with standard(s) |
CE
EAC
C-Tick
KC
cULus
cULus Class I Zone 2 Division 2
FM Class I Division 2 |
| Electrical durability |
(Backlight) 80 000 hours |
