Technical specifications
|
Display
|
7-inch TFT widescreen color display
|
|
Resolution
|
800 x 480 pixels (WVGA)
|
|
Touch Technology
|
Capacitive multi-touch
|
|
Backlight Lifetime
|
50,000 hours (typical)
|
|
Processor
|
ARM-based high-performance processor
|
|
RAM
|
2 GB
|
|
Flash Memory
|
12 MB internal memory
|
|
External Memory
|
USB flash drives, SD/SDHC cards
|
|
Profinet Ports
|
2 x RJ45 Ethernet (10/100 Mbps)
|
|
MPI/PROFIBUS DP
|
Supported (9.6 kbps to 12 Mbps)
|
|
USB Ports
|
1 x USB 2.0 (Type A), 1 x USB (Type B)
|
|
Input Voltage
|
24V DC (±20%)
|
|
Power Consumption
|
12 W (maximum)
|
|
Operating Temperature
|
0°C to +50°C (32°F to 122°F)
|
|
Storage Temperature
|
-20°C to +60°C (-4°F to 140°F)
|
|
Humidity
|
5% to 95% non-condensing
|
|
Protection Rating (Front)
|
IP65
|
|
Protection Rating (Rear)
|
IP20
|
|
Vibration Resistance
|
IEC 61131-2 compliant
|
|
Dimensions (H x W x D)
|
214 x 158 x 58 mm
|
|
Cutout Dimensions (H x W)
|
198 x 142 mm
|
|
Weight
|
1.2 kg (2.65 lbs)
|
|
EMC Compliance
|
IEC 61000-6-2, IEC 61000-6-4
|

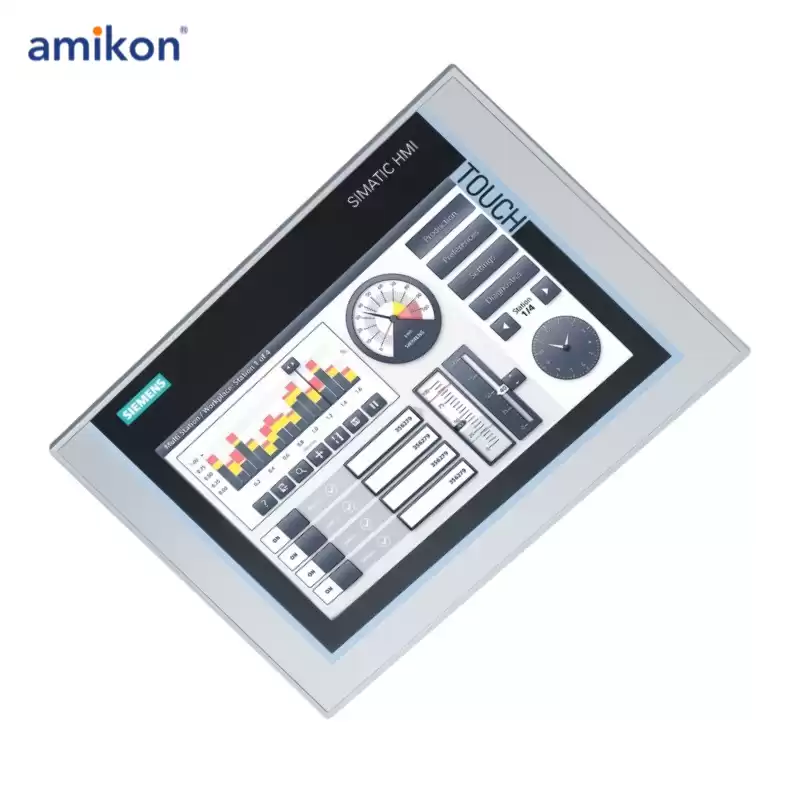

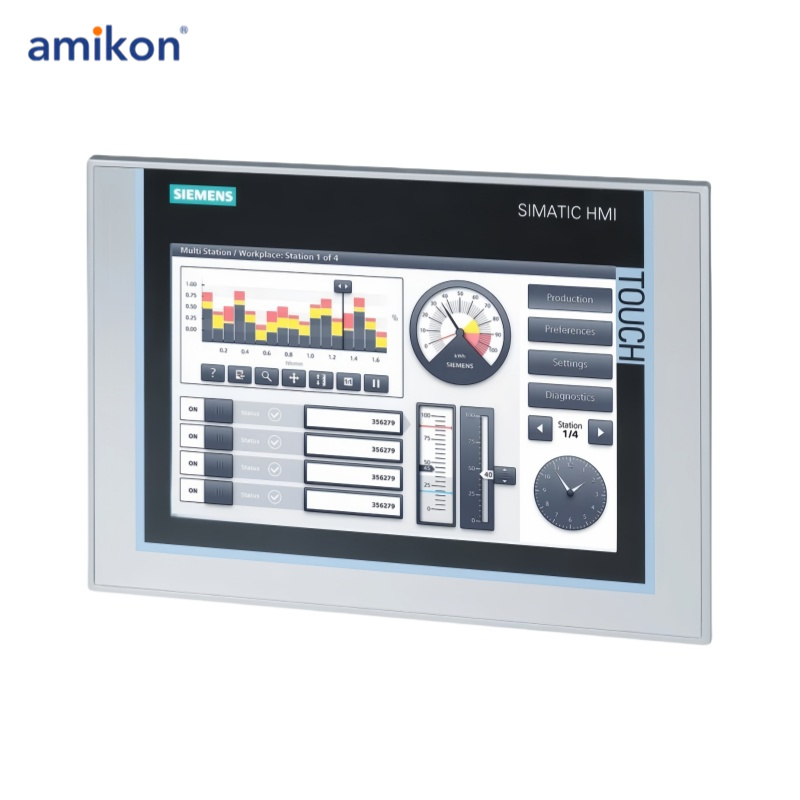

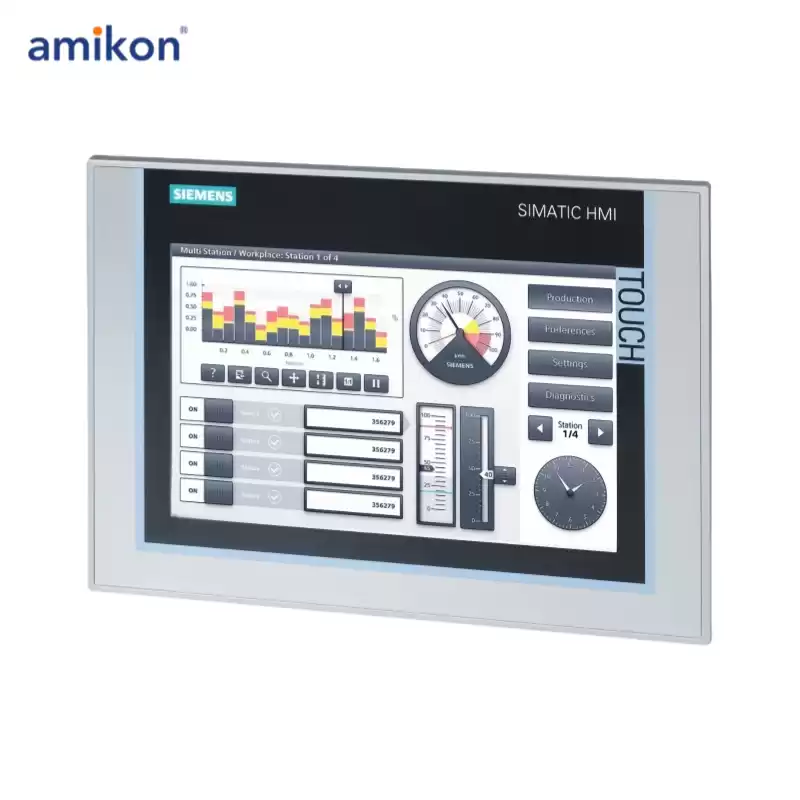

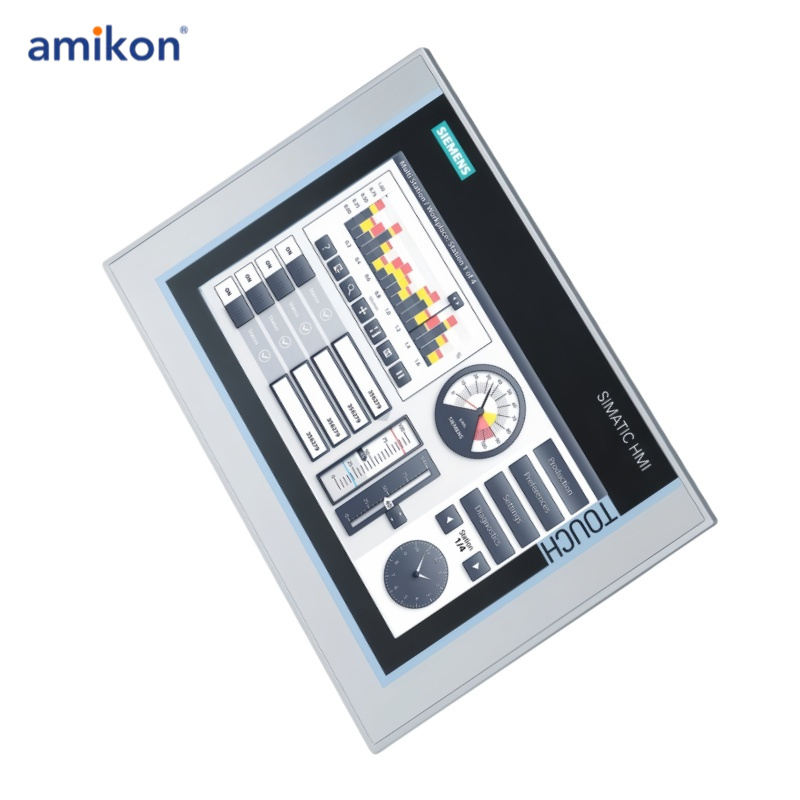

The Siemens 6AV2154-1FB20-0AB0 SIMATIC HMI TP700 Comfort Operator Panel is part of Siemens’ Comfort Panel series, designed for high-performance Human-Machine Interface (HMI) applications.
It provides an intuitive, easy-to-use interface for monitoring and controlling industrial processes. With its robust design, high-resolution 7-inch touchscreen, and comprehensive communication capabilities, this operator panel is ideal for demanding industrial environments, ensuring efficient interaction between operators and machines.
