Technical specifications
|
Product number
|
6AV3688-3AF37-0AX0
|
|
Type
|
HMI Key Panel
|
|
Number of Function Keys
|
16 programmable function keys
|
|
Communication Protocol
|
PROFINET
|
|
LED Indicators
|
Integrated for each function key
|
|
Voltage Supply
|
24V DC
|
|
Power Consumption
|
Max. 5W
|
|
Operating Temperature Range
|
-25°C to +60°C
|
|
Dimensions (W x H x D)
|
100mm x 200mm x 50mm
|
|
Weight
|
500g
|
|
Mounting Type
|
Panel Mounting
|
|
Protection Class
|
IP65 (front), IP20 (rear)
|
|
Function Key Lifespan
|
1 million operations per key
|
|
Diagnostic Functions
|
Integrated for status monitoring
|
|
Compatibility
|
SIMATIC S7-1200, S7-1500 systems
|
|
Certifications
|
CE, UL, RoHS compliant
|
|
Ambient Conditions
|
Humidity: 5% to 95% (non-condensing)
|

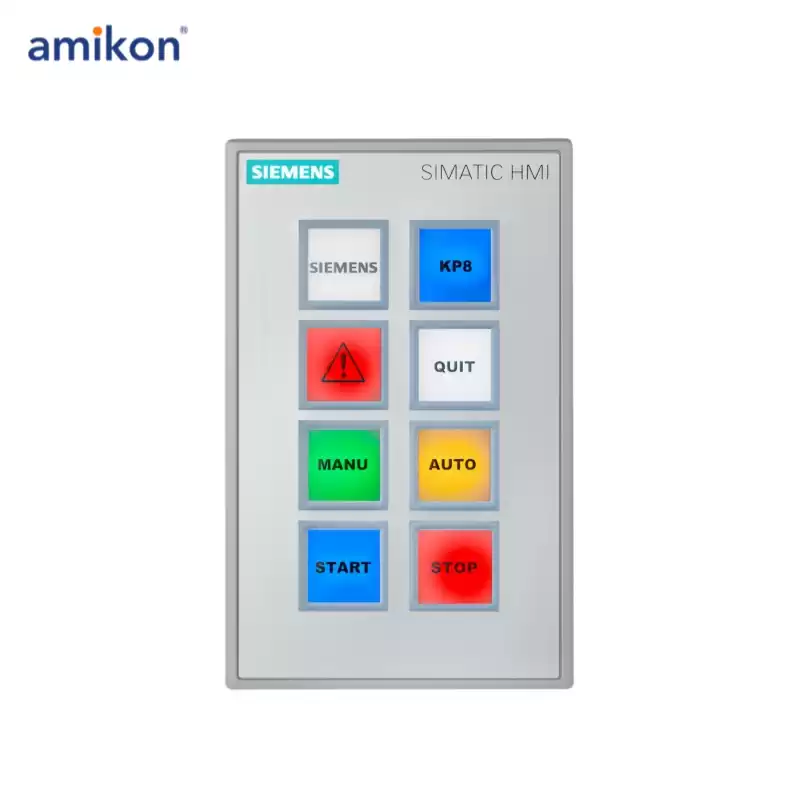

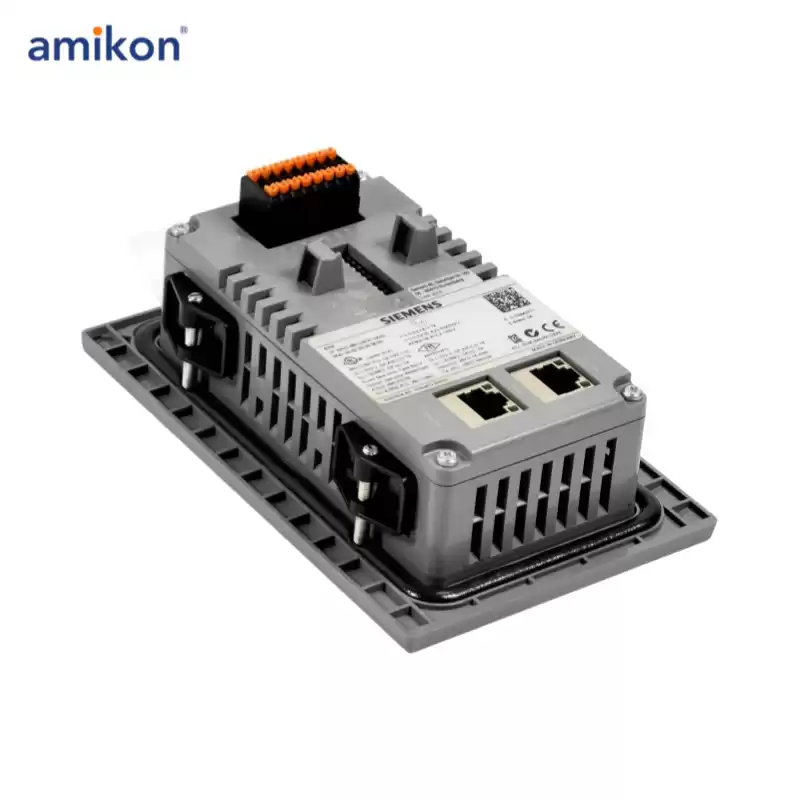

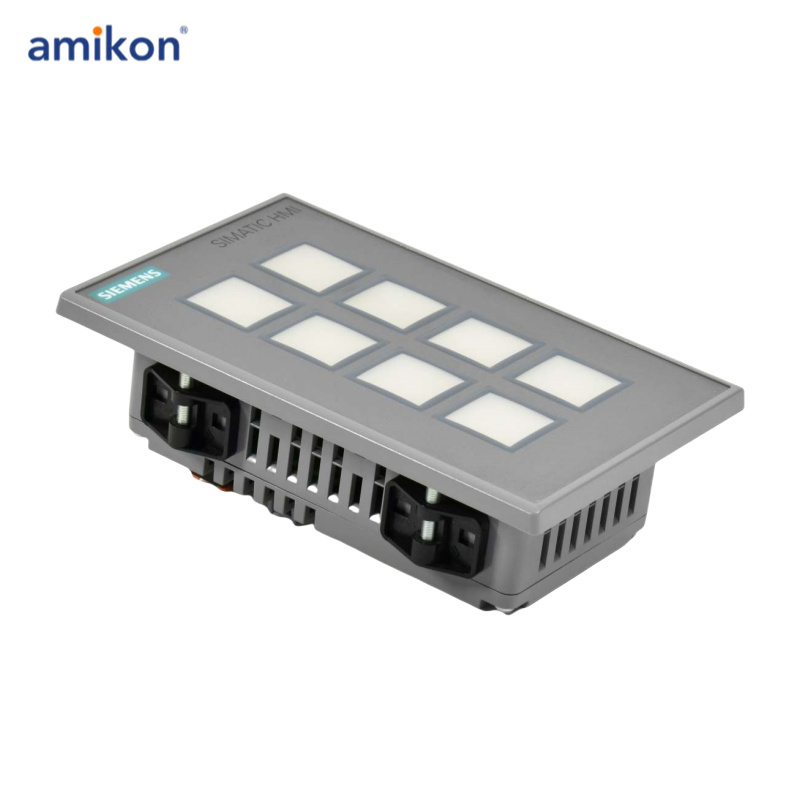

The Siemens 6AV3688-3AF37-0AX0 is a high-performance HMI (Human Machine Interface) key panel designed for seamless interaction between operators and automation systems.
This panel, part of the SIMATIC HMI series, is suitable for demanding industrial environments where ease of control, durability, and reliability are critical.
The HMI key panel features programmable function keys and LED indicators, making it ideal for fast operation in industries such as manufacturing, process control, and machine operation.
If you want to know more about 6AV3688-3AF37-0AX0 , please contact me
