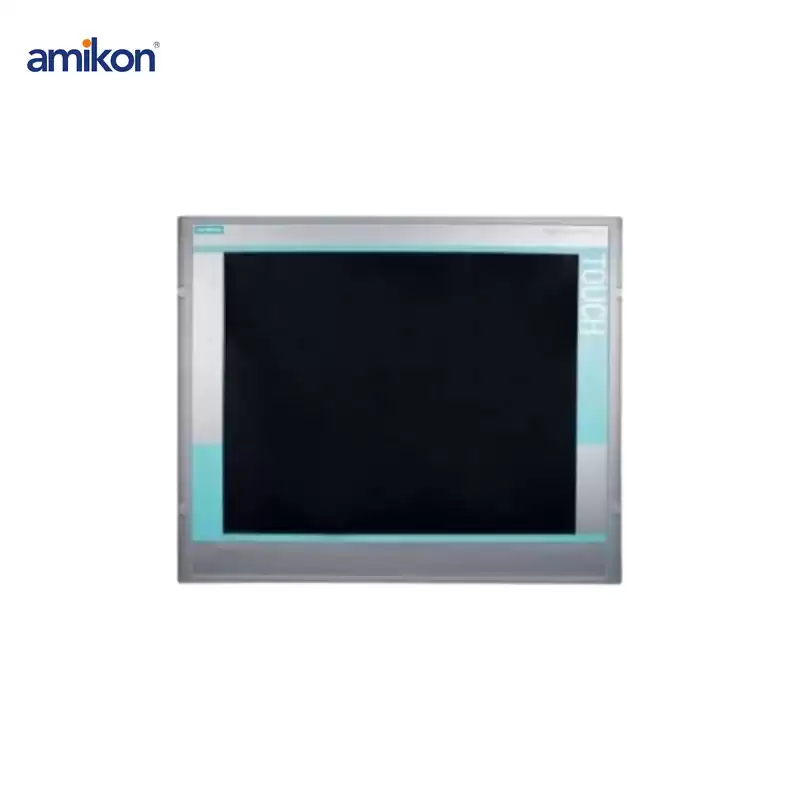

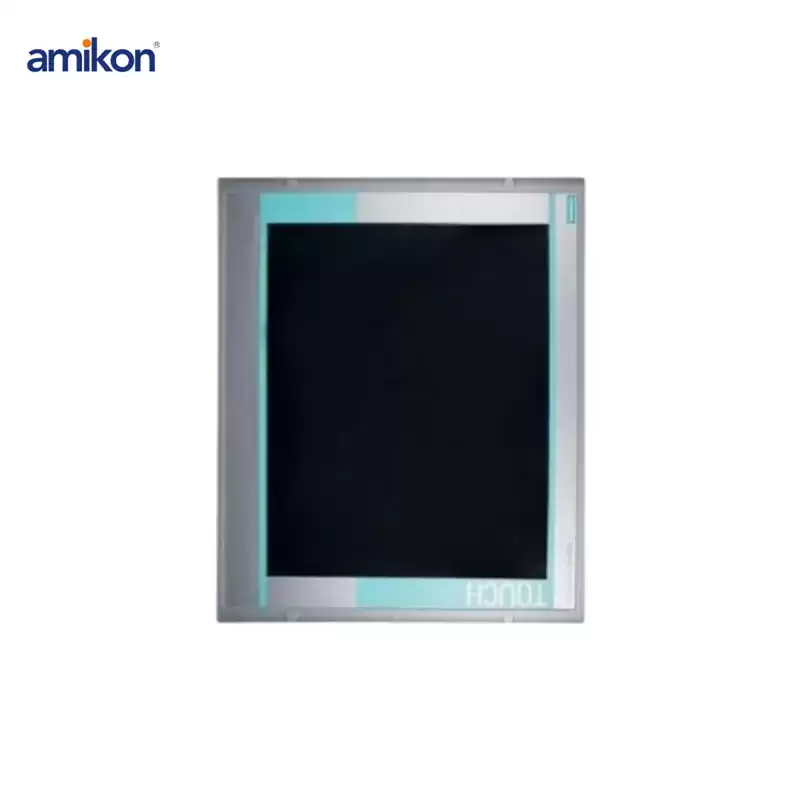

Siemens 6AV7861-3AB10-1AA0 Touch screen
The Siemens 6AV7861-3AB10-1AA0 Touch Screen is part of the SIMATIC HMI (Human Machine Interface) series, offering a state-of-the-art display and control solution for industrial automation systems.
Designed for intuitive operation, this touch screen is ideal for use in demanding environments such as production lines, machine control panels, and process monitoring systems.
If you want to know more about 6AV7861-3AB10-1AA0 , please contact me
Email Skype Wechat Whatsapp
sales17@amikon.cn +86 189 65196563 Amikonplc +86 189 65196563
Technical specifications
Series: SIMATIC HMI
Model Number: 6AV7861-3AB10-1AA0
Display Size: 12-inch TFT touch screen
Resolution: 1024 x 768 pixels (XGA)
Touch Technology: Analog resistive touch
Processor: Intel Celeron 927UE, 1.5 GHz
Memory (RAM): 2 GB DDR3 SDRAM
Storage: 80 GB SSD
Operating System: Windows Embedded Standard 7
Communication Interfaces:
2 x Ethernet (10/100/1000 Mbps)
2 x USB 2.0
1 x Serial port (RS232)
Mounting Type: Panel mount / Cabinet mount
Power Supply: 24V DC
Protection Class: IP65 (front), IP20 (rear)
Operating Temperature Range: 0°C to +45°C
Storage Temperature Range: -20°C to +60°C
Dimensions (HxWxD): 303 mm x 350 mm x 70 mm
Weight: 5 kg
