Product Description:

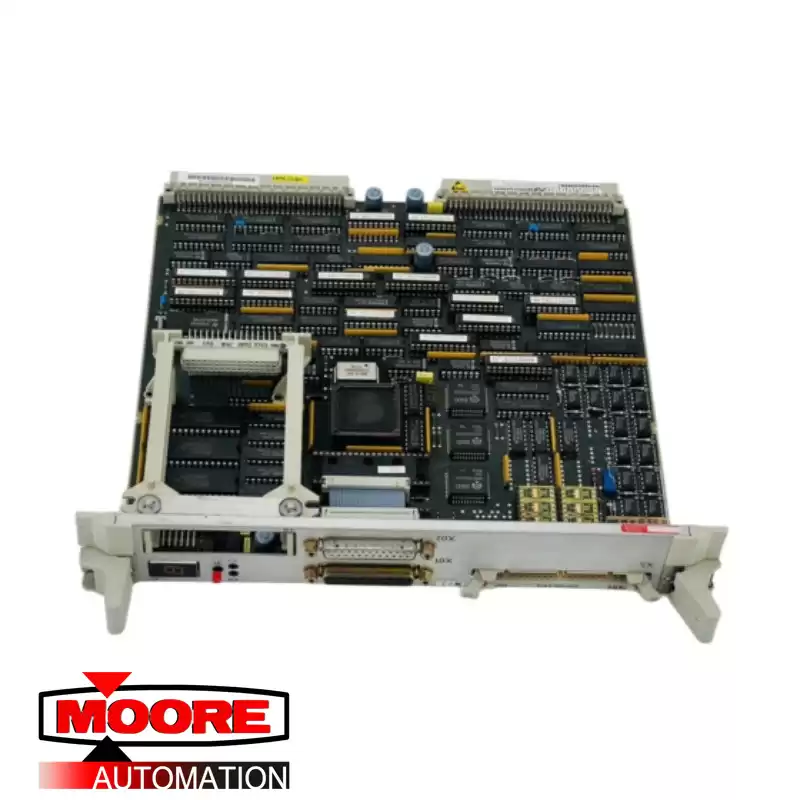

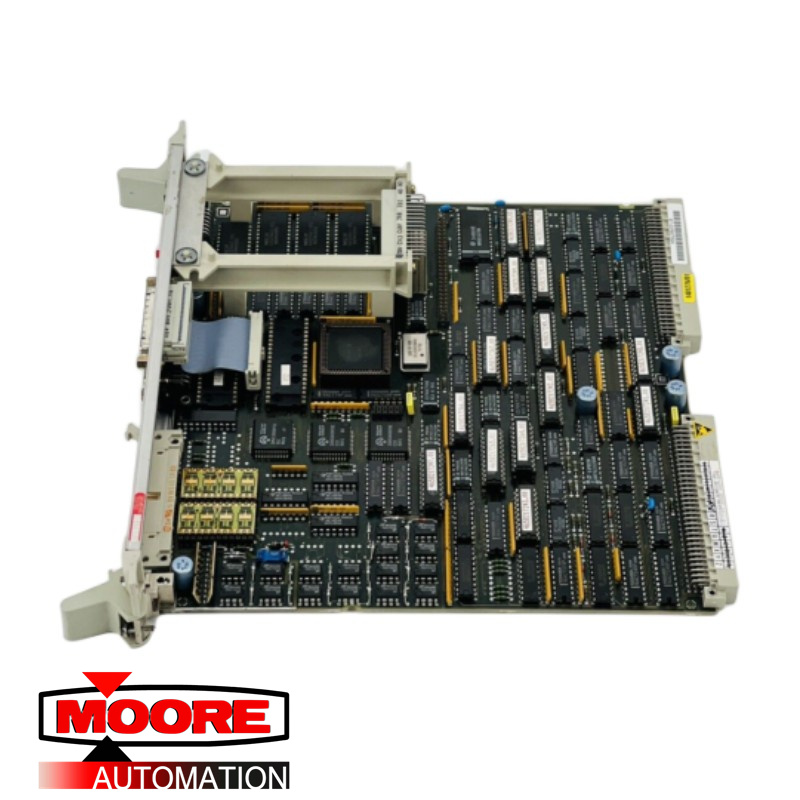

The processor module PM16 processes general technological control, calculation and regulation tasks
in the SIMADYN D system. These tasks lie above the drive level control and regulation functions
(torque shell). The board contains the -CMOS- 16 bit microprocessor 80C186 - 16MHz with
corresponding peripherals.
Plug-in program memory modules (MS31, MS3) are used in the mounting location X50 for the board
user programs as well as for the system firmware (operating system, supervisor program, function
module code, .... ).
The user programs run on the processor under the SIMADYN D real time
operating system. This guarantees interrupt controlled fixed cycle times of ³ 1ms, dependent upon
the configuration.
There are 16 binary input and 16 binary output channels available for the fast exchange of data with
the process IO (connector X5).The binary inputs can be declared, via software, as interrupt inputs. At
the occurrence of a signal edge at an interrupt input, the processor interrupts the current cyclic
processing and runs the function packet process interrupt job PIJ . Connection cables carrying binary
signals are connected to interface modules and not directly to the processor module.
