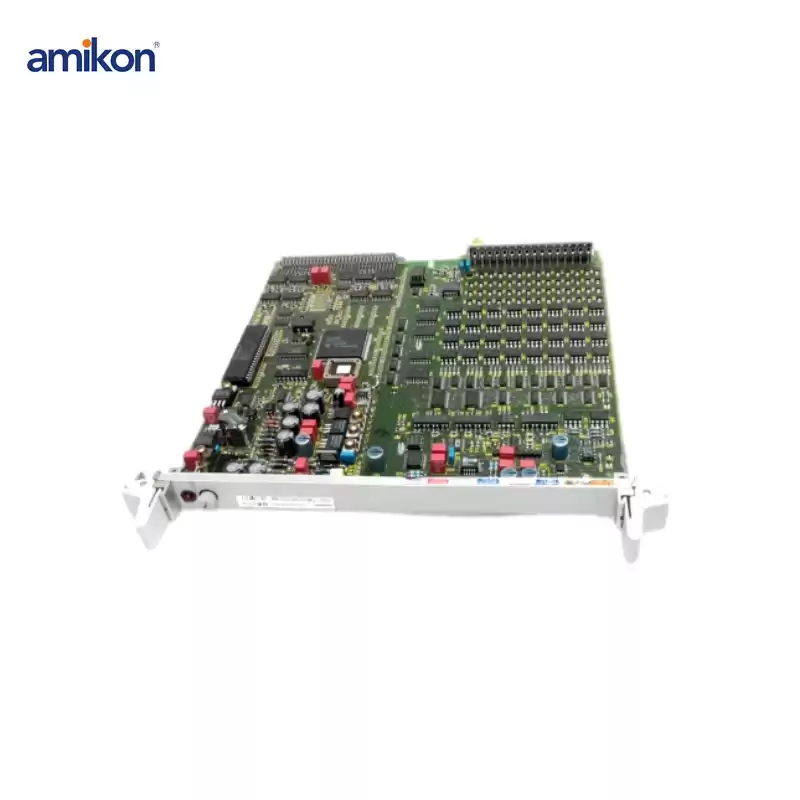

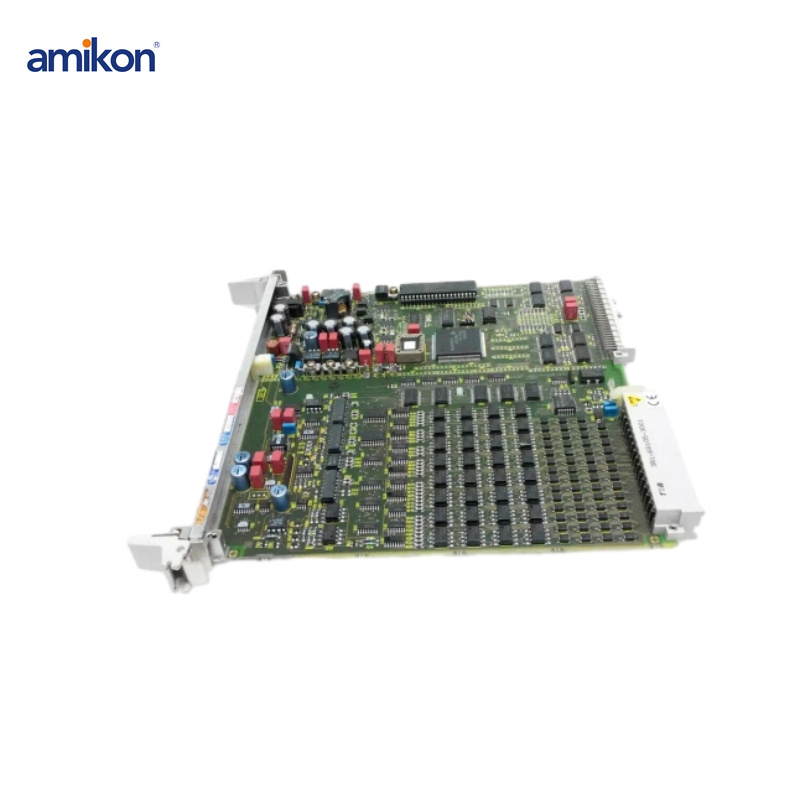

Siemens 6DP1308-8AA Interface Module
|
Parameter
|
Description
|
|
Module Type
|
Interface Module
|
|
Model Number
|
6DP1308-8AA
|
|
Input/Output Type
|
Analog Input
|
|
Number of Channels
|
Typically 4 or 8 (please verify exact number)
|
|
Signal Type
|
Voltage or Current (please specify)
|
|
Input Range
|
For Voltage: ±10V, ±5V, 0-10V (or specific ranges)
|
|
Current Range
|
4-20 mA, 0-20 mA (or specific ranges)
|
|
Resolution
|
12-bit or 16-bit (depends on the module)
|
|
Accuracy
|
±0.1% to ±0.5% of Full Scale (depends on the model)
|
|
Sampling Rate
|
Typically 1 ms per channel or as specified
|
|
Isolation
|
Electrical isolation from system (e.g., 500V)
|
|
Power Supply
|
Voltage: 24V DC (common)
|
|
Dimensions
|
Check specific dimensions (e.g., 120 x 120 x 75 mm)
|
|
Mounting
|
DIN Rail Mountable
|
|
Communication
|
CAN Bus (for communication with other modules)
|
|
Operating Temperature
|
-20°C to +60°C (or as specified)
|
|
Compliance
|
CE, UL (or as specified)
|
Contact Information!
Discuss pricing and delivery time with a sales representative
+86 189 6519 6563
sales17@amikon.cn
+86-189 6519 6563
Amikonplc
The Siemens 6DP1308-8AA is an Interface Module designed for integration within various industrial automation systems.
This module facilitates the connection and processing of signals from analog encoders, enhancing motion control and position feedback capabilities in a range of applications.
Key Features
1. Compatibility: The module is compatible with a variety of Siemens PLCs and motion control systems, ensuring easy integration into existing setups.
2. Signal Processing: It provides high-quality signal processing for analog encoders, converting analog signals into digital form for accurate data interpretation and control.
3. High Resolution: The module supports high-resolution signals, enabling precise position feedback which is critical in applications such as robotics, CNC machines, and automated assembly lines.
4. Robust Design: Built to withstand industrial environments, the module features a robust design that ensures reliability and longevity in demanding applications.
5. Flexible Configuration: Users can configure the module to meet specific operational requirements, including scaling and filtering options for the encoder signals.
