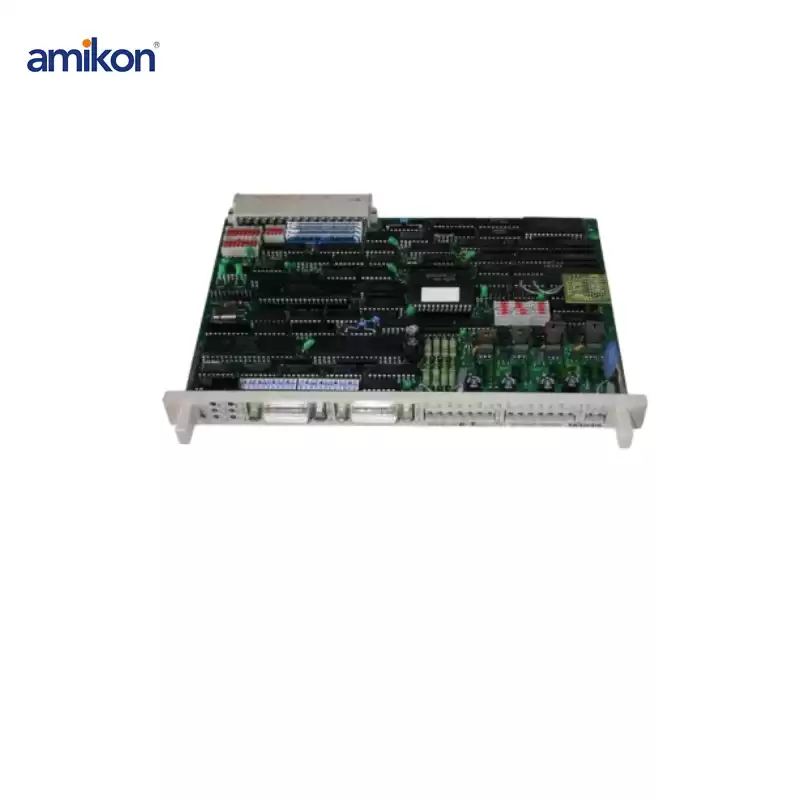

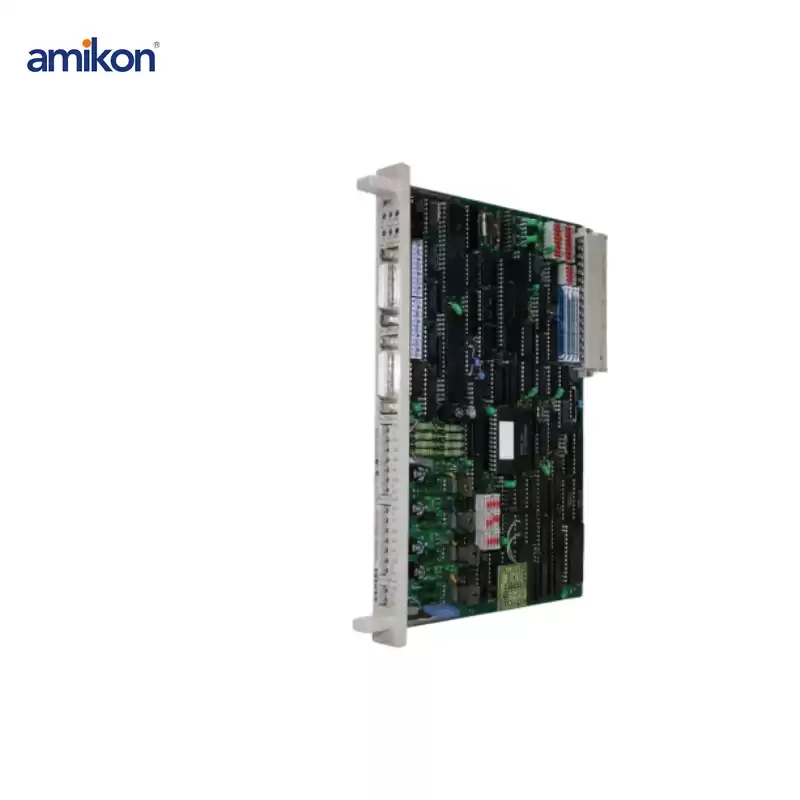

Siemens 6ES5240-1AA11 Counter Module
The Siemens 6ES5240-1AA11 is a counter module from Siemens' S5 series of PLCs (Programmable Logic Controllers).
It is specifically designed for counting applications in industrial automation, and is part of the SIMATIC S5 automation system, which was widely used before the newer S7 series was introduced.
If you want to know more about 6ES5240-1AA11 , please contact me
Email Skype Wechat Whatsapp
sales17@amikon.cn +86 189 65196563 Amikonplc +86 189 65196563
Technical specifications
|
Number of Channels
|
2 (Dual-channel counter module)
|
|
Counting Frequency
|
Up to 5 kHz (dependent on sensor and configuration)
|
|
Counting Range
|
16-bit counter (±32767)
|
|
Input Type
|
DC inputs for pulse signals (e.g., PNP or NPN)
|
|
Input Voltage
|
24V DC (typical)
|
|
Response Time
|
Fast response time, ideal for high-speed counting
|
|
Counting Modes
|
Up/Down counter, bidirectional counting, or single-direction counting
|
|
Communication Protocol
|
Interfaces with SIMATIC S5 PLC via backplane bus
|
|
Operating Temperature
|
0°C to 55°C
|
|
Storage Temperature
|
-40°C to 70°C
|
|
Power Consumption
|
Approx. 3W (from S5 backplane)
|
|
Protection
|
Built-in protection for signal integrity and noise immunity
|
|
Mounting Type
|
Rack-mounted module, compatible with S5 racks
|
|
Dimensions
|
Standard dimensions for S5 modules (e.g., approx. 25 mm x 290 mm x 160 mm)
|
|
Weight
|
Approx. 0.5 kg
|
