Product Description:

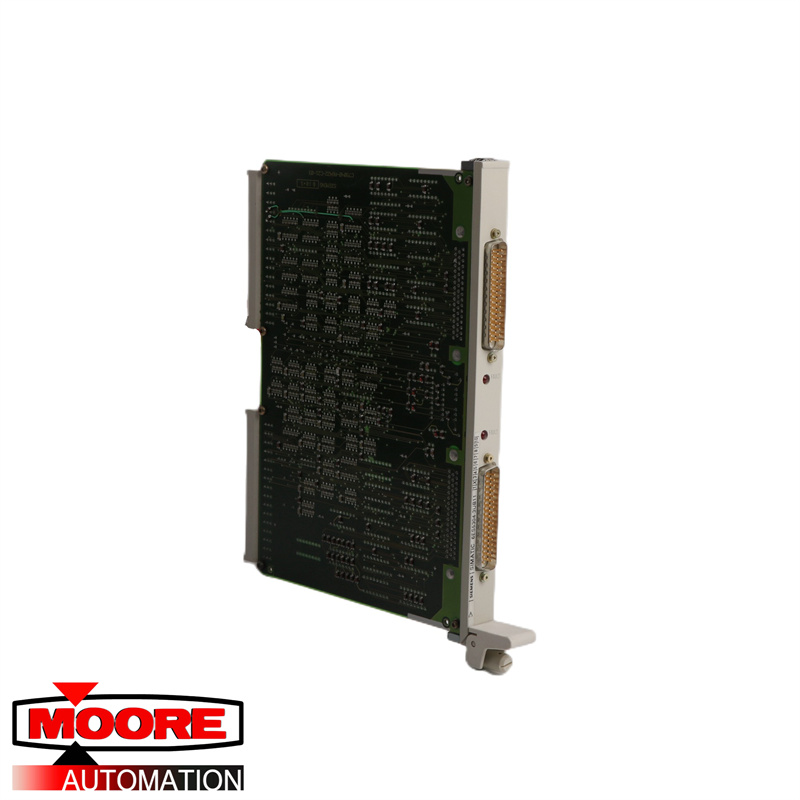

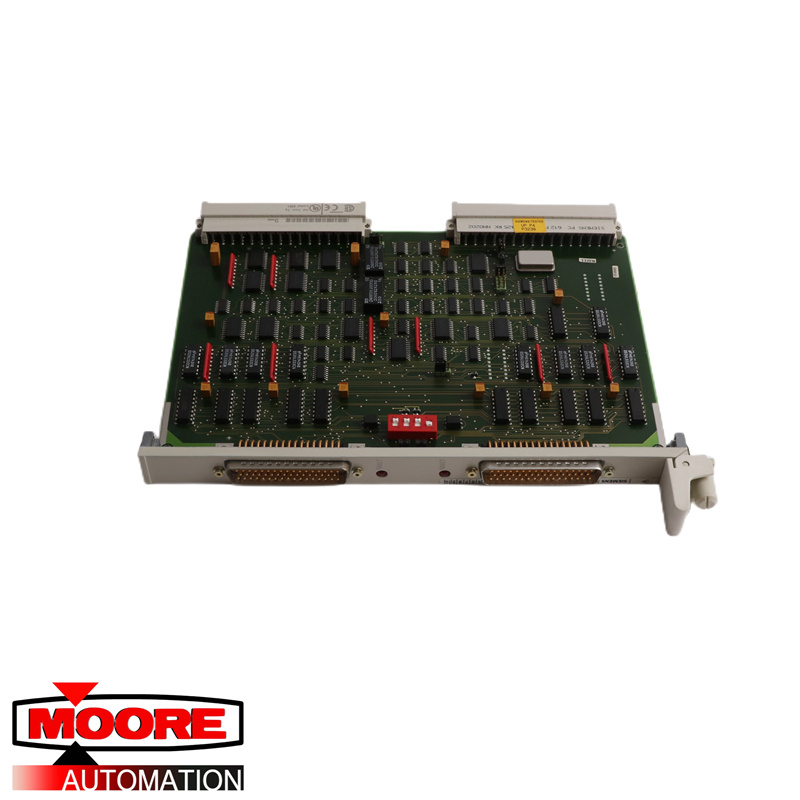

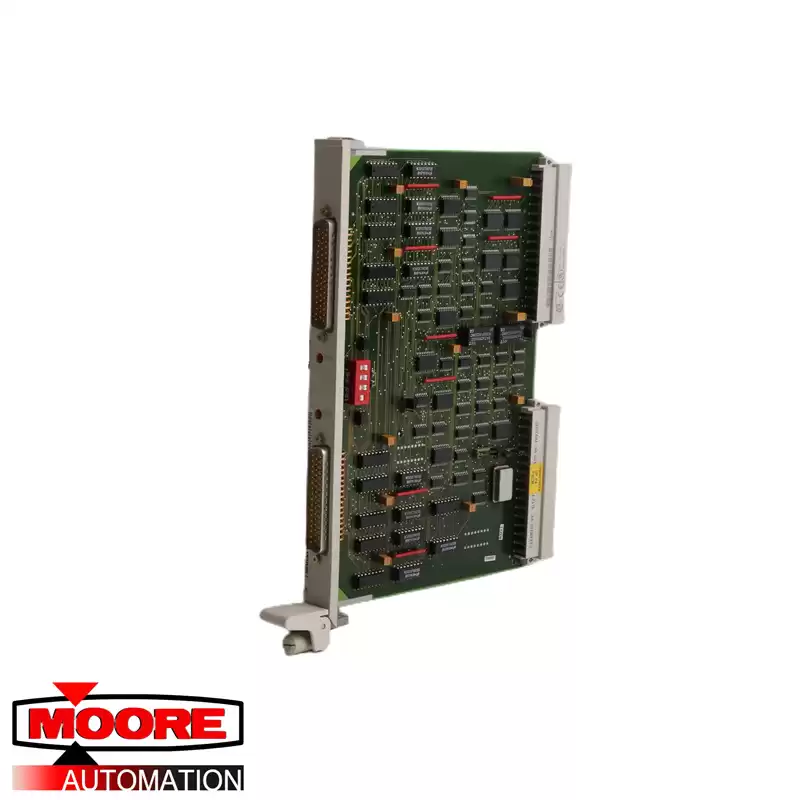

The INT. EU 16 Bit interface (Interface Extension Unit 16 Bit) is used to connect the EU 185U
expansion unit and the PLC 135 WB.
The interface is compatible with the SIMATIC interface module IM 304 to IM 314 (Interface
Module). The IM 314 is used in the SIMATIC EU.
Functional blocks:
• Programmable address decoding (PAD)
• Monitoring of the external unit by current loop
• Access assignment of link and local bus via bus arbiter
• Command and status register for monitoring jumper setting and monitoring
• Address switchover to link to a SIMATIC control (for front interface)
• LED lamp to indicate failure of the external unit
