Product Description:

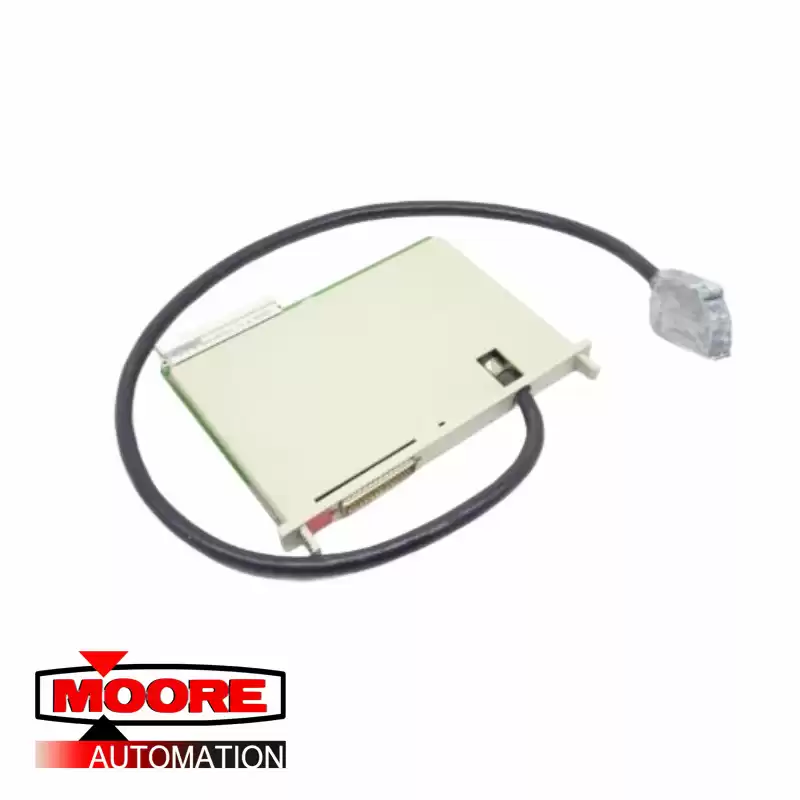

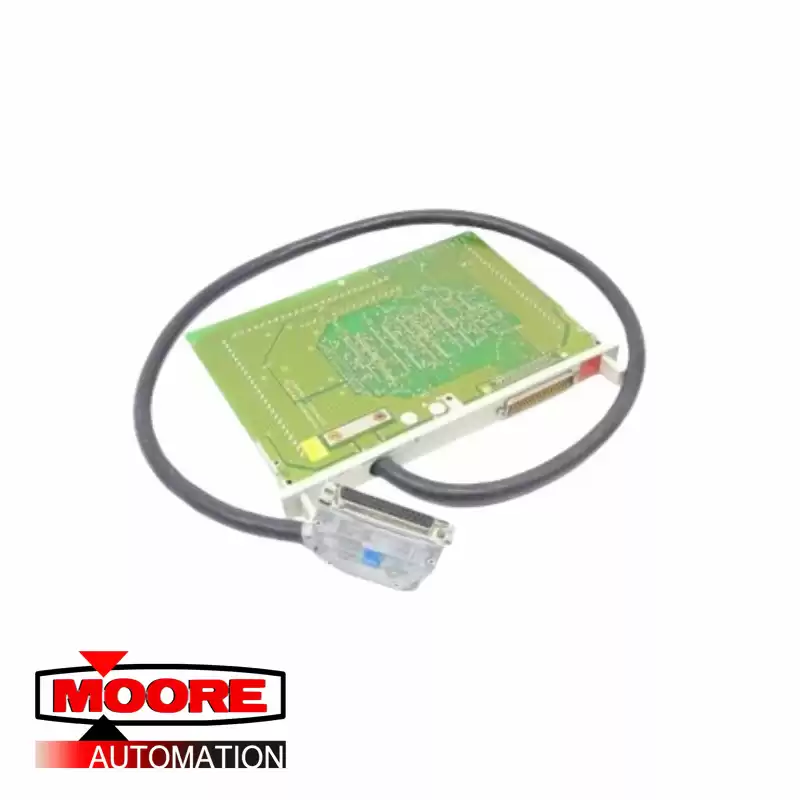

The IM 300 interface module must be plugged into the slot provided in the central con- troller. The IM 312 interface
module is plugged into the expansion unit. Up to four IM 300 interface modules can be used in the central control-
ler, however, not more than two IM 300-5 in the ZG 135U/155U. One IM 300 interface module can be plugged into each EG 183U or EG 185U expan-sion unit. The IM 300 interface module allows two areas of 256 byte to be configured (P and Q areas).
The IM 300/M 312 interface modules are used for centra- lized configuration of /O modules and itelligent /O modules (without page ad- dressing) with a central con-troller via the following expan-sion units:
●EG 183U
●EG 184U
●EG 187U
