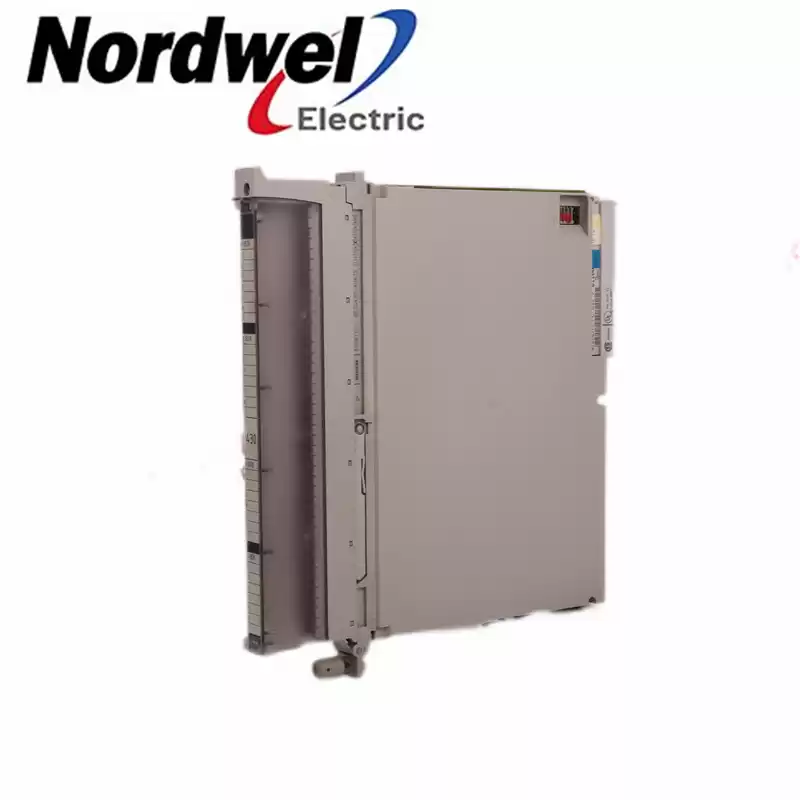

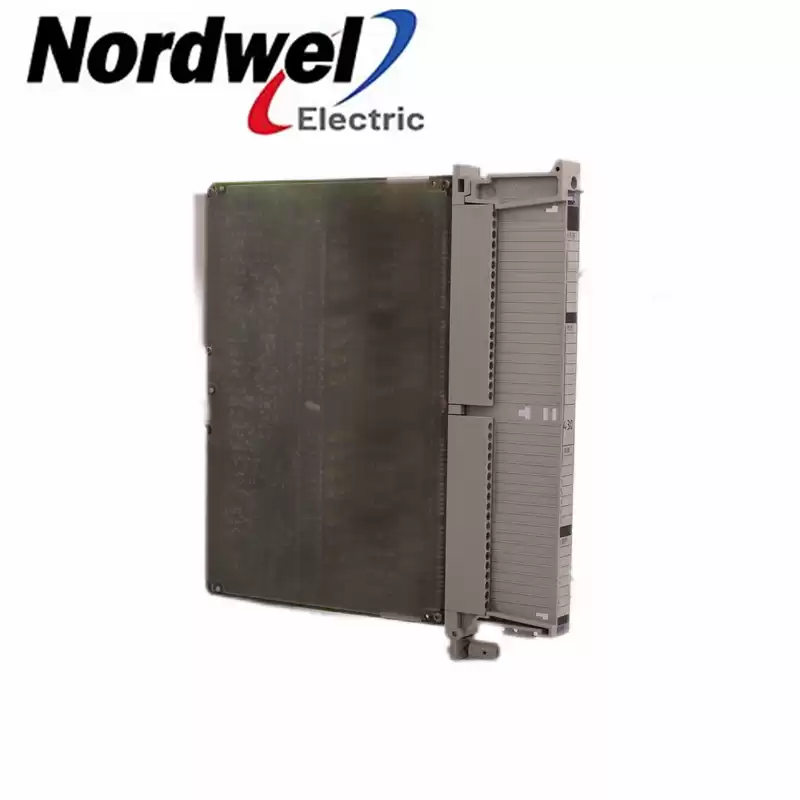

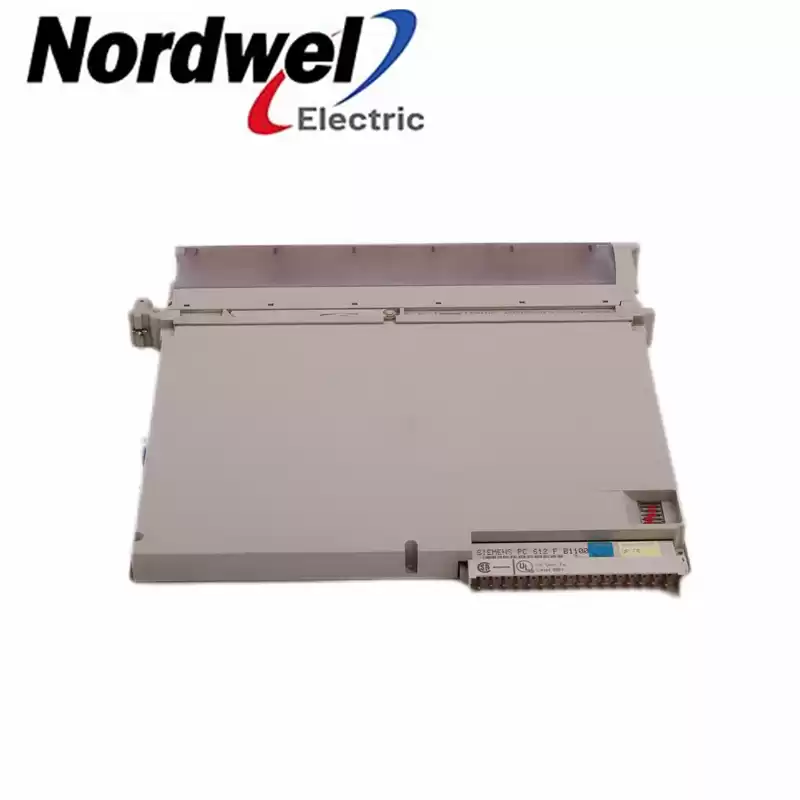

Original new and factory-sealed 6ES5430-4UA13 in stock!!!
Rated input voltage 24 V DC
Number of inputs 32
Isolation Yes, 1 group with 32 inputs
Input voltage
for logic 0
for logic 1 1)
-3 to 7 V
13 to 33 V
-33 to 7 V
13 to 33 V
Rated input current 7.0 mA
Input frequency 100 Hz max.
Delay time 4 ms typical (2.5 to 6.5 ms) 3 ms typical (1.4 to 5.0 ms)
Input resistance 3.3 kohm typical
Coincidence factor (total load capability) 100 %
Permissible line length 600 m max., unshielded;
1000 m max., shielded
