Technical specifications
|
Item
|
Parameter
|
Description
|
|
General Information
|
|
|
|
|
Product designation
|
CPU 1215C DC/DC/DC
|
|
|
Firmware version
|
V4.6
|
|
|
Engineering package
|
STEP 7 V18 or higher
|
|
Supply voltage
|
|
|
|
|
Rated value (DC)
|
24 V DC
|
|
|
Permissible range, lower limit (DC)
|
20.4 V
|
|
|
Permissible range, upper limit (DC)
|
28.8 V
|
|
|
Reverse polarity protection
|
Yes
|
|
Load voltage L+
|
|
|
|
|
Rated value (DC)
|
24 V
|
|
|
Permissible range, lower limit (DC)
|
20.4 V
|
|
|
Permissible range, upper limit (DC)
|
28.8 V
|
|
Input current
|
|
|
|
|
Current consumption (rated value)
|
500 mA
|
|
|
Current consumption, max.
|
1500 mA
|
|
|
Inrush current, max.
|
12 A at 28.8 V DC
|
|
|
I²t
|
0.5 A²s
|

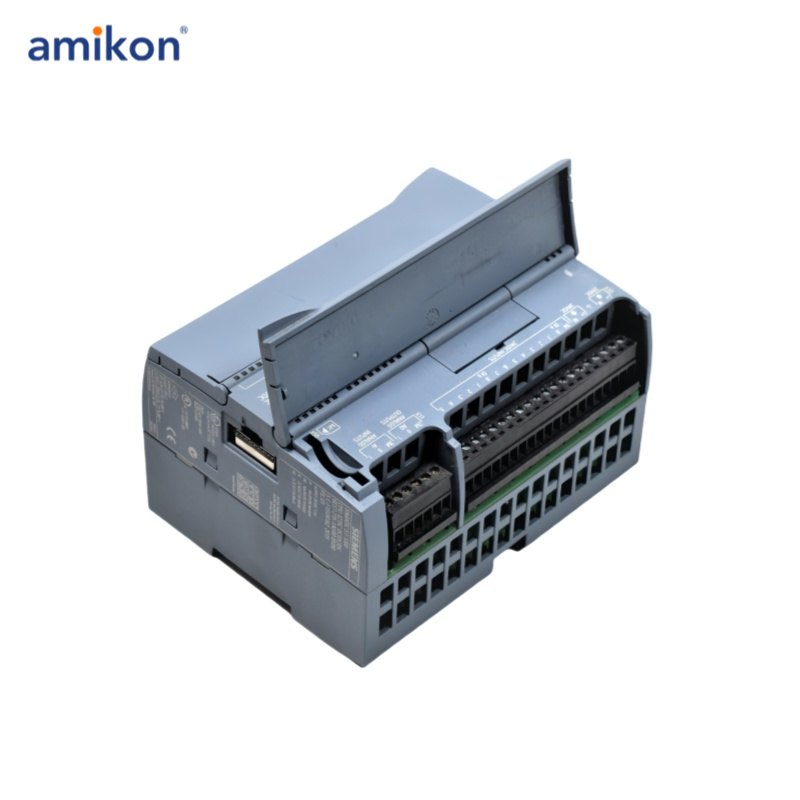

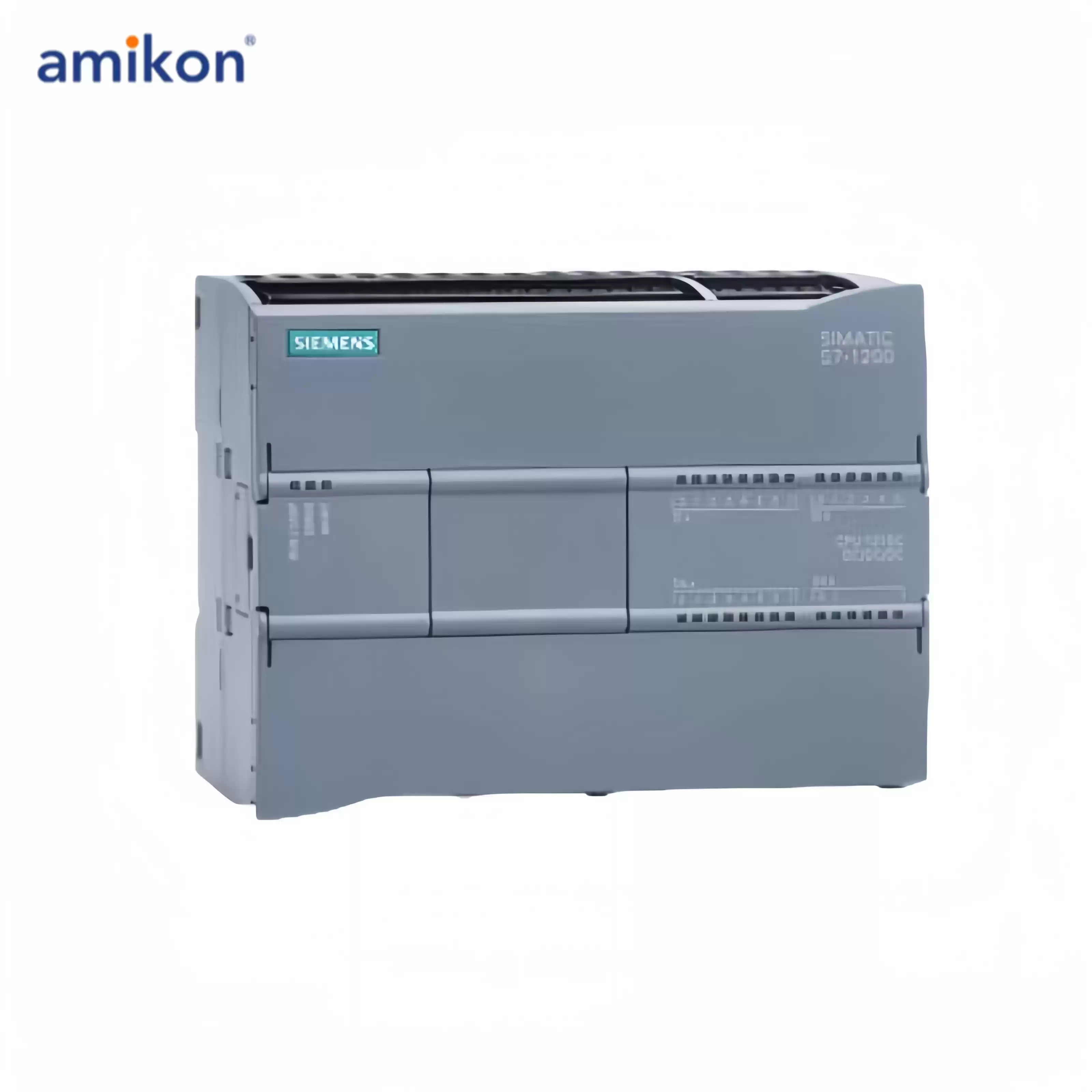

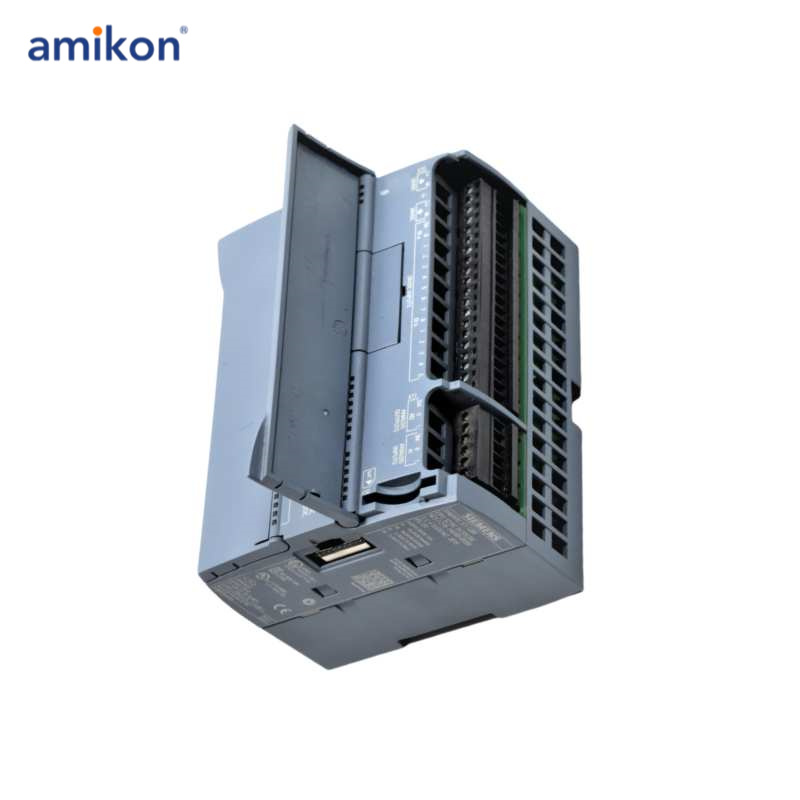

The Siemens 6ES7215-1AG40-0XB0 Central Processing Unit is part of the Siemens ET 200SP family, designed for high-performance automation systems.
This I/O module is highly efficient, reliable, and ideal for industrial automation processes.
It is engineered for flexible configuration, easy installation, and rapid integration into different automation environments, making it suitable for various industries such as manufacturing, processing, and transportation.
FAQ:
1.What is the supply voltage for the 6ES7215-1AG40-0XB0?
The CPU operates at a supply voltage of 24 V DC.
2. What is the permissible range of the supply voltage?
The permissible voltage range is 20.4 V to 28.8 V DC.
3. Is reverse polarity protection included?
Yes, the 6ES7215-1AG40-0XB0 has reverse polarity protection.
If you want to know more about 6ES7215-1AG40-0XB0 , please contact me
