Technical specifications
|
Processor
|
Integrated CPU for mid-range applications
|
|
Work Memory
|
128 KB (program), 256 KB (data)
|
|
Load Memory
|
Expandable via MMC card (up to 8 MB)
|
|
Digital Inputs
|
16 (24V DC)
|
|
Digital Outputs
|
16 (24V DC)
|
|
Analog Inputs
|
4 (0-10V, 4-20mA, 12-bit resolution)
|
|
Analog Outputs
|
2 (0-10V, 4-20mA, 12-bit resolution)
|
|
I/O Address Range
|
2048 bytes (input/output)
|
|
PROFIBUS DP Port
|
1 x DP master/slave interface, up to 12 Mbps
|
|
MPI Interface
|
Supported
|
|
Power Consumption
|
3.5 W (typical)
|
|
Humidity
|
5% to 95% non-condensing
|
|
Protection Rating
|
IP20
|
|
Dimensions (H x W x D)
|
125 x 50 x 130 mm
|
|
Weight
|
0.6 kg (1.32 lbs)
|
|
Certifications
|
CE, UL, CSA
|
|
EMC Compliance
|
IEC 61000-6-2, IEC 61000-6-4
|

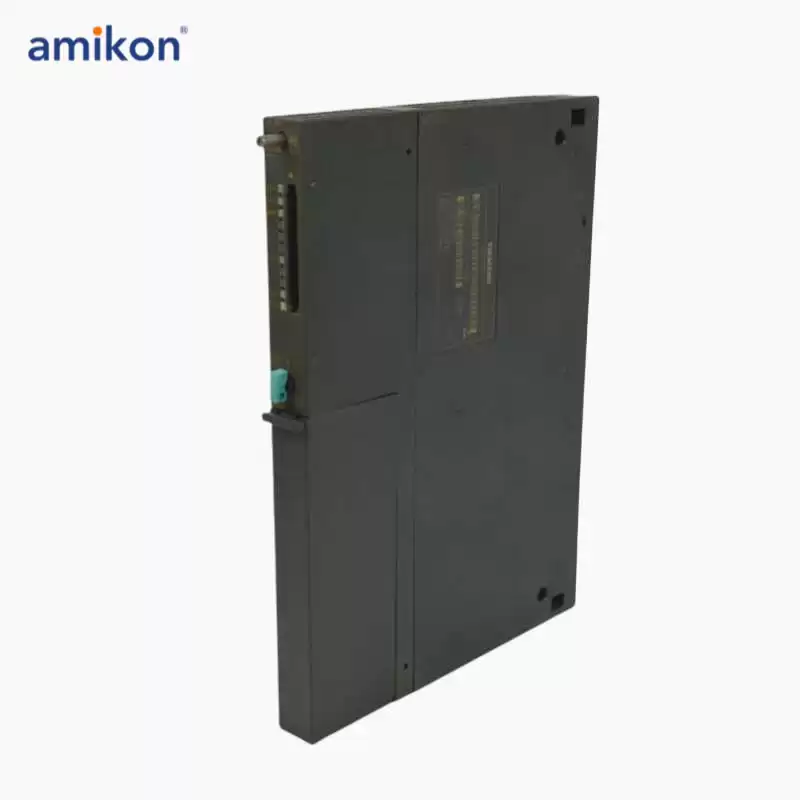

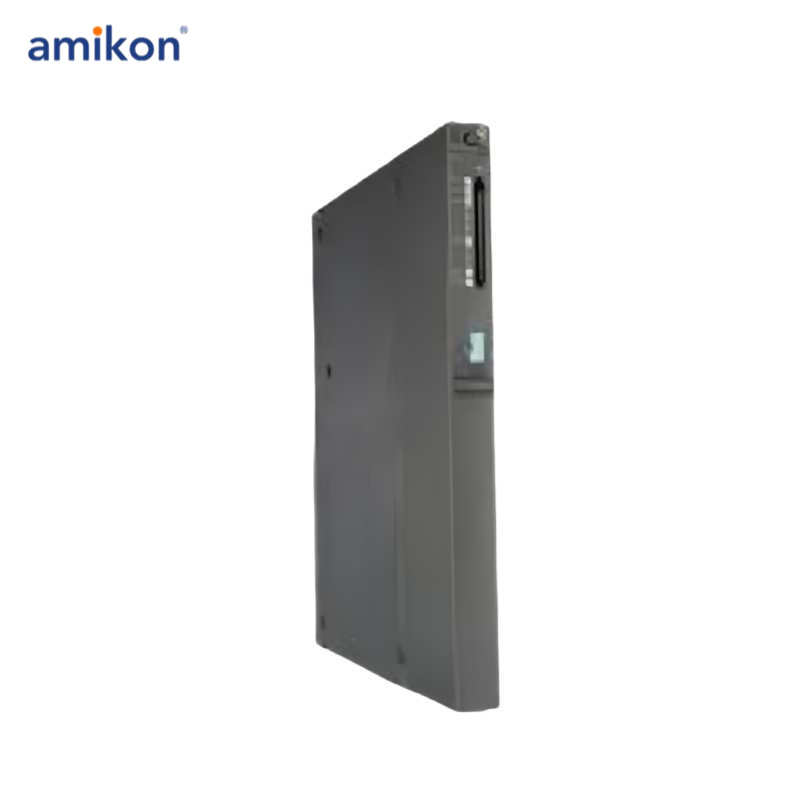

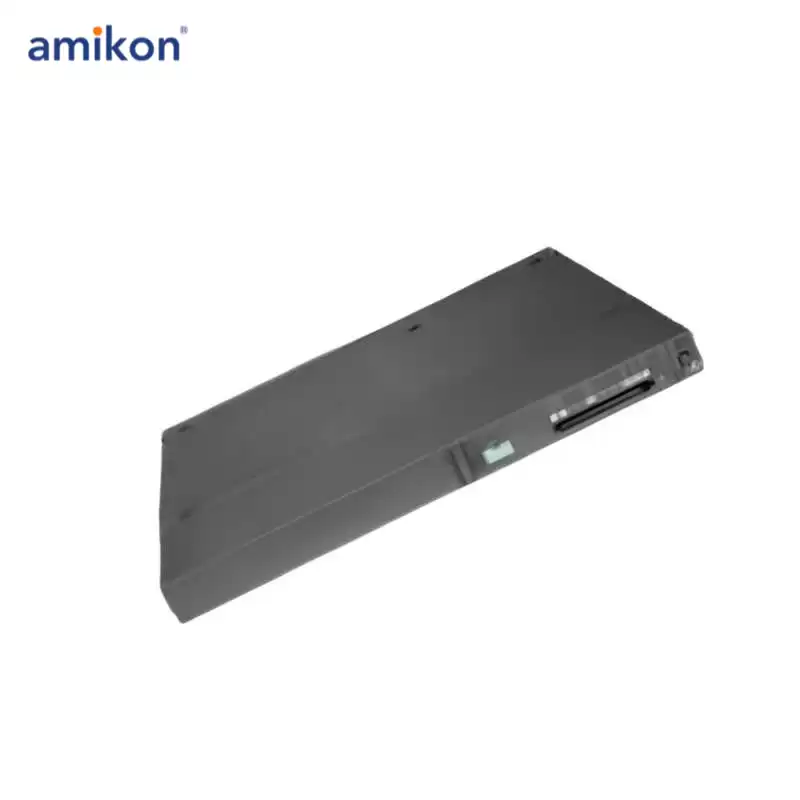

The Siemens 6ES7412-1XF03-0AB0 Processor Module SIMATIC S7-300 CPU 314C-2 DP is a compact and versatile CPU module designed for mid-range automation tasks in the SIMATIC S7-300 series.
It features integrated digital and analog inputs/outputs and supports Processor Module, making it ideal for industrial automation systems.
The module is equipped with a built-in interface for communication with computers and other automation systems, ensuring seamless data exchange and process control.
If you want to know more about 6ES7412-1XF03-0AB0 , please contact me
