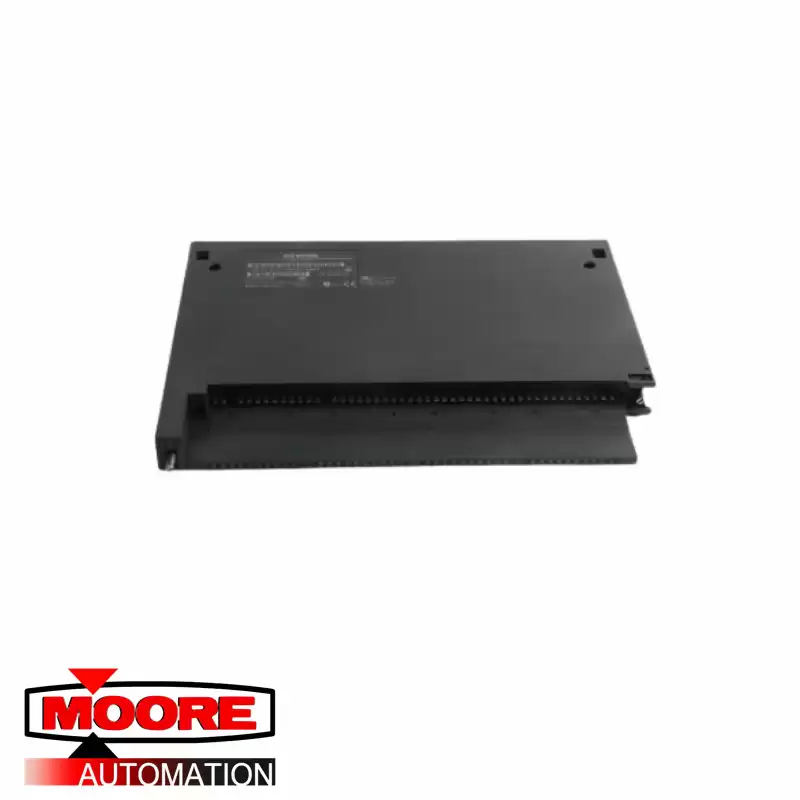

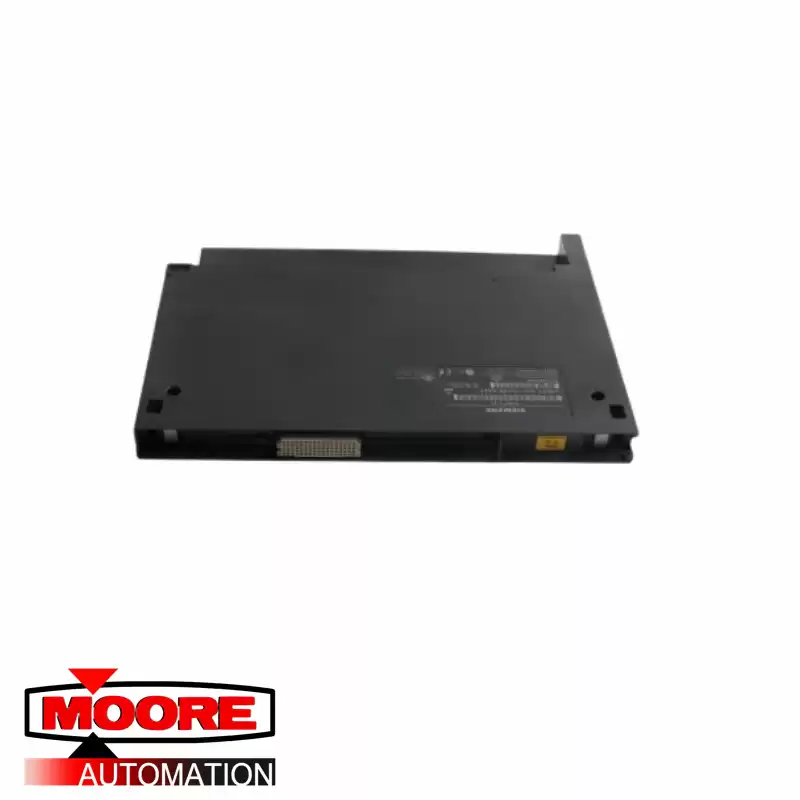

SIEMENS | 6ES7422-1BL00-0AB0 | Digital Otput

General Information：

-------------------------------------------------------------

ABOUT 6ES7422-1BL00-0AB0 :

6ES7422-1BL00-0AA0. SIMATIC S7-400, SM 422 DIGITAL OUTPUT MODULE, OPTIC. ISOLATED, 32 DO, 24V DC, 0.5A. Supply voltage.
The digital output module SM 422; DO 32 x DC 24 V/0.5 A has the following features:
● 32 outputs, isolated in a group of 32
● Power is supplied to 8 channels in groups
● A supply group always consists of eight adjacent channels starting with channel 0. Channels 0 to 7, 8 to 15, 16 to 23 and 24 to 31 therefore form one supply group
● Each of these supply groups can be switched off separately by isolating L+, however you have to take note of the common ground connection
● Output current 0.5 A
● Nominal load voltage 24 VDC The status LEDs also indicate the system status even when the front connector is not inserted.
