Technical specifications
|
Module Type
|
Digital Input Module
|
|
Product Code
|
6ES7521-7EH00-0AB0
|
|
Series
|
SIMATIC S7-1500
|
|
Number of Inputs
|
16 digital inputs
|
|
Input Voltage
|
24V DC
|
|
Current per Input
|
2.5mA per channel
|
|
Input Signal Delay
|
0.05ms to 3ms adjustable
|
|
Input Type
|
PNP
|
|
Power Consumption
|
Max. 3.6W
|
|
Operating Temperature Range
|
-40°C to +60°C
|
|
Dimensions (W x H x D)
|
35mm x 147mm x 129mm
|
|
Weight
|
280g
|
|
Mounting Type
|
DIN Rail
|
|
Protection Class
|
IP20
|
|
Response Time
|
< 1ms
|
|
Diagnostics
|
Integrated for wire breaks, short circuits
|
|
Hot-Swappable
|
Yes
|
|
Compatibility
|
SIMATIC S7-1500 system
|
|
Ambient Conditions
|
Humidity: 5% to 95% (non-condensing)
|

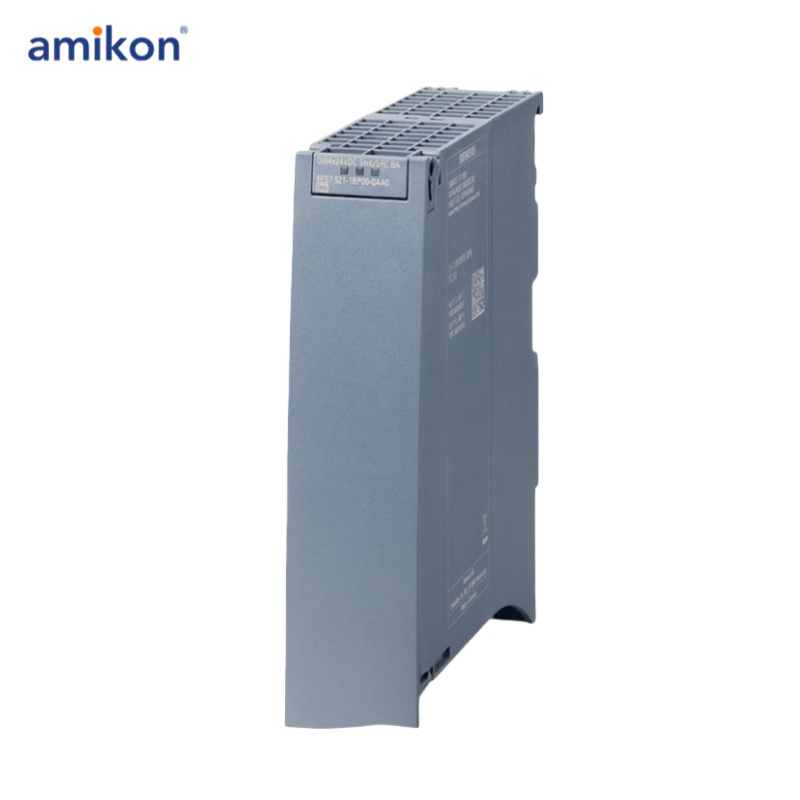

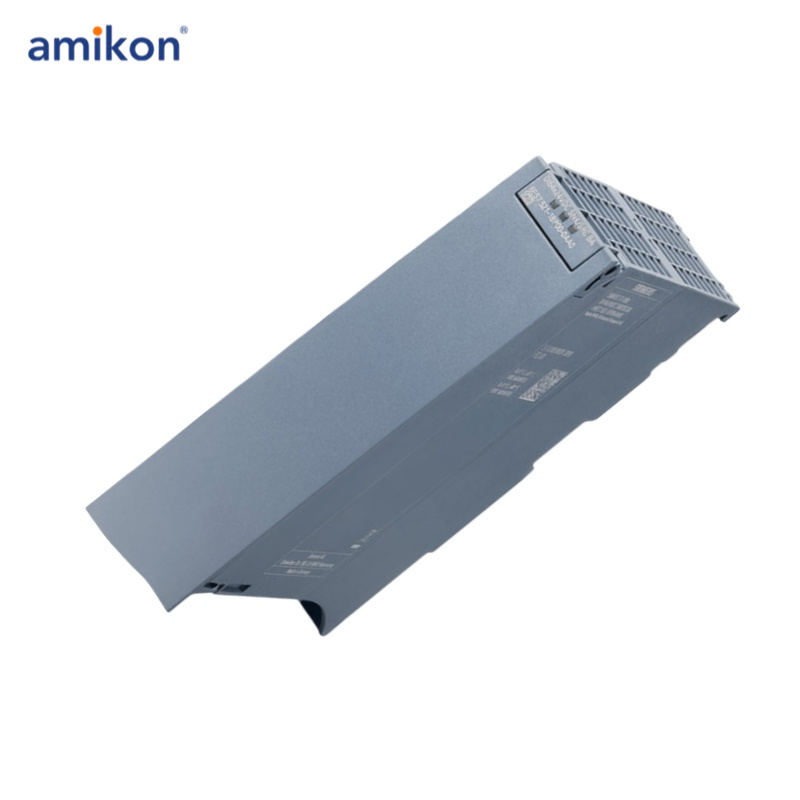

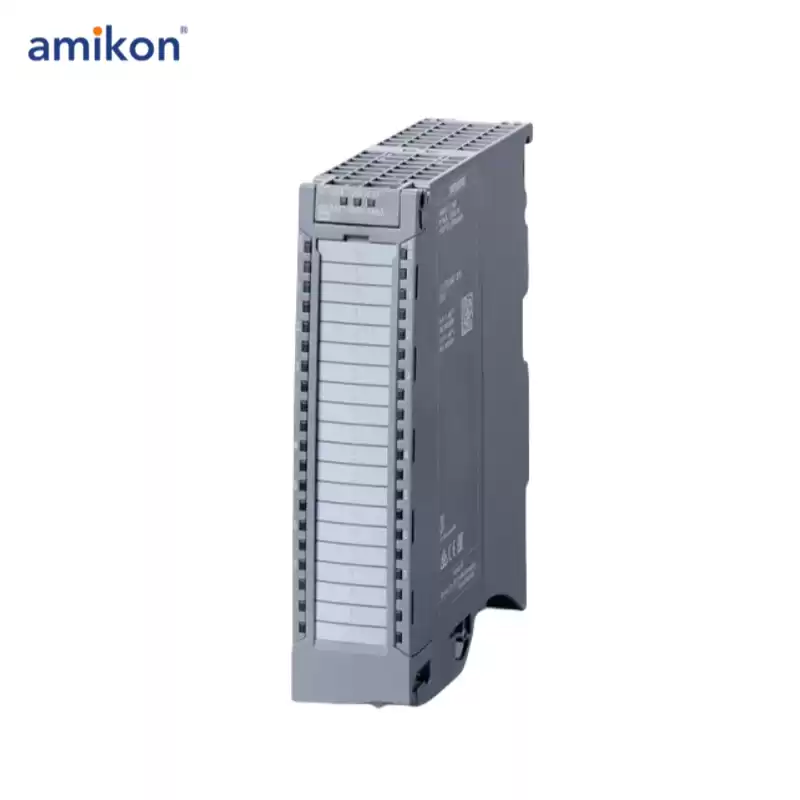

The Siemens 6ES7521-7EH00-0AB0 is a high-performance digital input module from the SIMATIC S7-1500 series.
It is engineered to process digital signals efficiently and is ideal for applications in industrial automation and process control systems.
This module features a robust design, high-speed signal acquisition, and is suitable for a wide range of industries including manufacturing, energy, and logistics.
The module supports secure and reliable data transmission, making it essential for controlling critical operations.
FAQ for Siemens 6ES7521-7EH00-0AB0:
1. What is the Siemens 6ES7521-7EH00-0AB0?
The 6ES7521-7EH00-0AB0 is a digital output module in the Siemens S7-1500 series. It features 16 digital outputs and is designed to interface with Siemens S7-1500 programmable logic controllers (PLCs) for various automation applications.
2. Can the 6ES7521-7EH00-0AB0 be used in safety applications?
No, this module is not designed for safety applications. For safety-related tasks, it is recommended to use modules that are specifically certified for safety applications.
3. How is the module installed?
The module can be easily installed onto the S7-1500 rail system, ensuring proper alignment with the bus connector. It typically requires no special tools for mounting or connection.
If you want to know more about 6ES7521-7EH00-0AB0, please contact me
