Technical specifications
|
Technical Specifications
|
Details
|
|
Model Number
|
6GK1503-3CC00
|
|
Product Type
|
Optical Link Module
|
|
Brand
|
Siemens
|
|
System Compatibility
|
SIMATIC ET 200S Distributed I/O System
|
|
Number of Channels
|
2 Analog Input Channels
|
|
Input Signal Type
|
0-10V DC, 4-20 mA
|
|
Resolution
|
15-bit
|
|
Communication Interface
|
PROFIBUS DP
|
|
Power Supply Voltage
|
24V DC
|
|
Current Consumption
|
≤ 30 mA
|
|
Input Impedance
|
>100 kΩ (voltage), 250 Ω (current)
|
|
Diagnostics
|
Integrated LED diagnostics for error detection
|
|
Operating Temperature Range
|
0°C to 60°C
|
|
Storage Temperature Range
|
-40°C to 85°C
|
|
Humidity Range
|
5% to 95% non-condensing
|
|
Mounting Type
|
DIN Rail Mount
|
|
Dimensions
|
80 mm x 60 mm x 40 mm (H x W x D)
|
|
Weight
|
0.1 kg
|
|
Warranty
|
12 Months
|

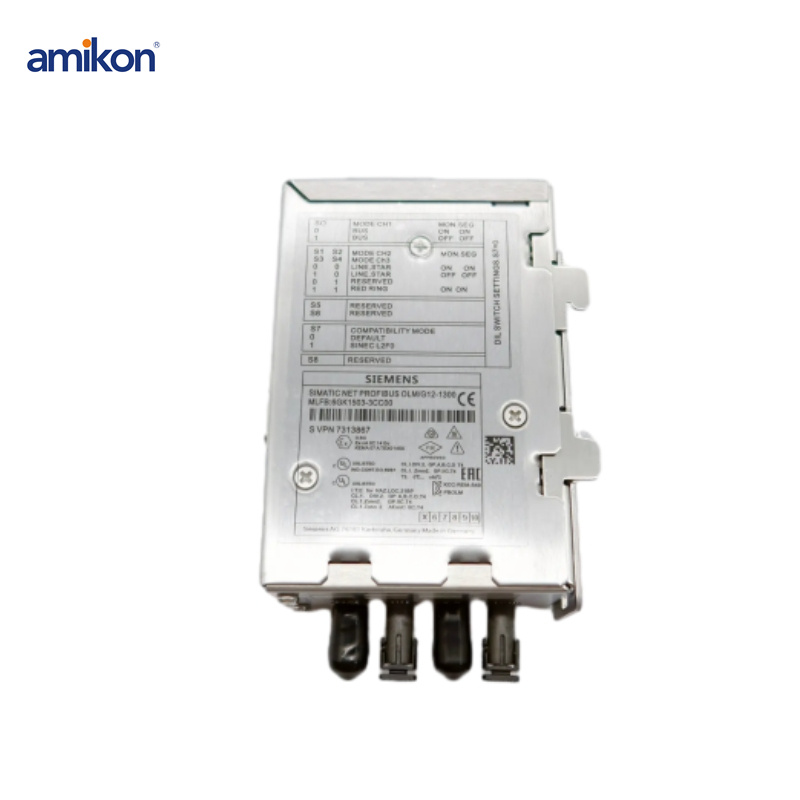

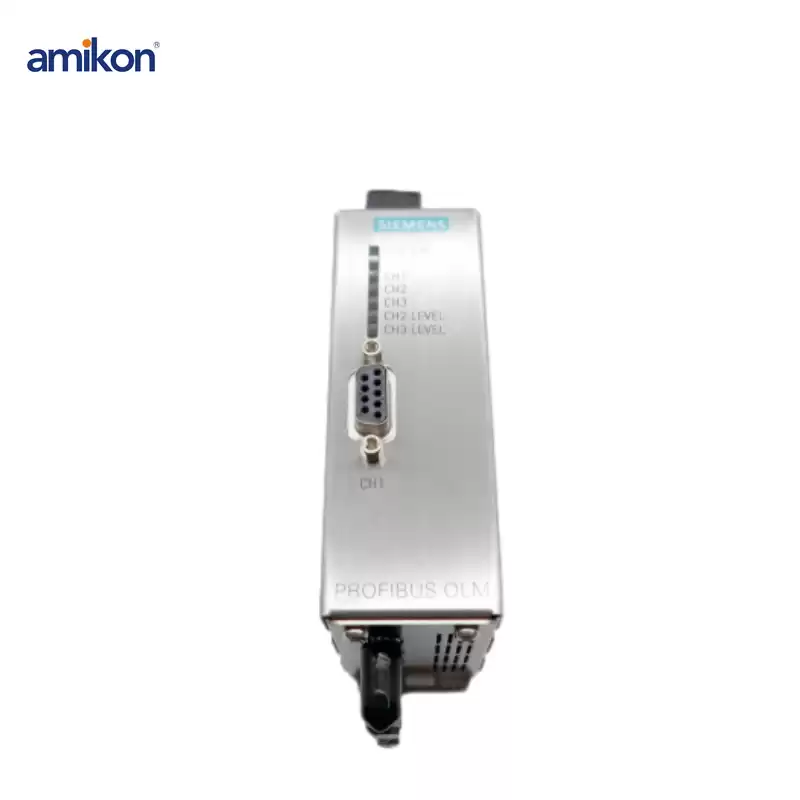

The Siemens 6GK1503-3CC00 Optical Link Module is designed to provide high-speed and reliable fiber optic communication in industrial automation networks.
This module ensures fast data transfer and robust signal integrity, even in harsh environments.
With its advanced technology, the 6GK1503-3CC00 is ideal for connecting automation devices over long distances, supporting seamless integration and efficient communication within your industrial system. Optimize your network performance with Siemens' dependable optical link solutions.
If you want to know more about 6GK1503-3CC00 , please contact me
