Specifications
| Primary brand |
Siemens |
| Main function |
Ethernet switch |
| Product series / family name |

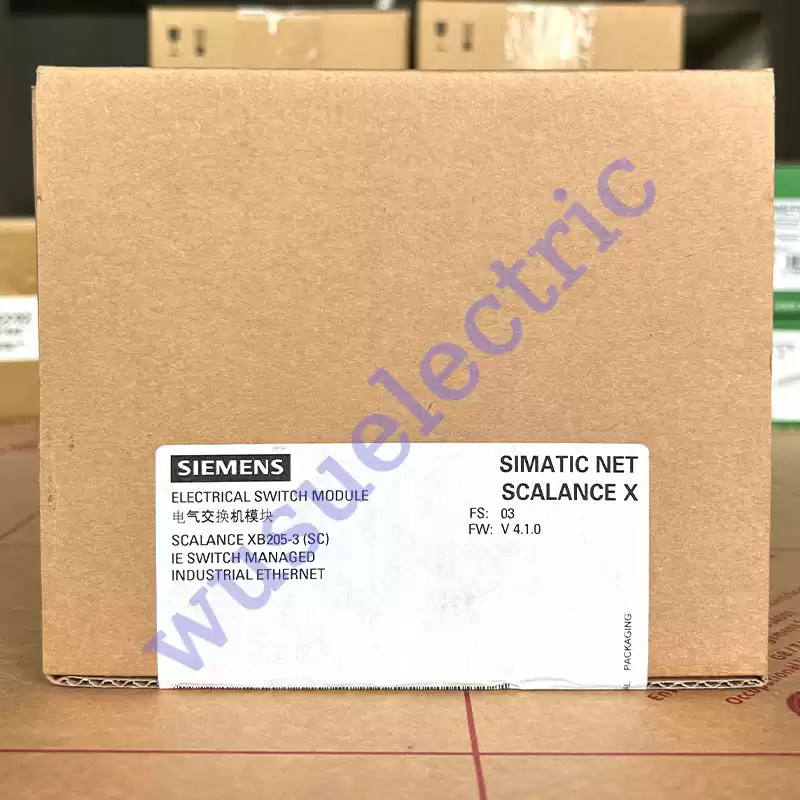

SCALANCE X series |
| Sub-range name |
X-200 series |
| Functions |
8-ports managed Ethernet network switch
CLI
Web-based management
MIB support
TRAPs via email
Configuration with STEP 7
RMON
Port mirroring
CoS
PROFINET IO diagnosis
Telnet
HTTP
HTTPS
TFTP
FTP
DCP
LLDP
Ethernet/IP
SNMP v1
SNMP v2
SNMP v3
IGMP (snooping/querier)
I&M0 - device-specific information
I&M1 - higher-level designation/location designation
Port diagnostics
Statistics Packet Size
Statistics packet type
Error statistics
SysLog
Loopback diagnostics
VLAN - port based
DHCP client
Ring redundancy
High speed redundancy Protocol (HRP)
High speed redundancy protocol (HRP) with redundancy manager
High speed redundancy protocol (HRP) with standby redundancy
Media Redundancy Protocol (MRP)
Media redundancy protocol (MRP) with redundancy manager
Redundancy procedure STP
Redundancy procedure RSTP
Passive listening
IEEE 802.1x (radius)
Broadcast/Multicast/Unicast Limiter
Broadcast blocking
SSH
SICLOCK support
NTP
SNTP |
| Design |
Layer 2
FM approval / ATEX compliant |
| Supply voltage (DC) |
19.2Vdc-28.8Vdc (24Vdc nom.) |
| Connection type |
5xRJ45 copper connectors 10/100BaseTX
3xMulti-mode SC fiber optic (FO) connectors 100BaseFX
1xRJ11 connector (Console port)
1xRJ45 connector (Management)
1x6-pin term. connector (Supply) |
| Communication protocol |
Ethernet/IP |
| Mounting mode |
DIN rail mounting |
| Speed |
10Mbit/s
100Mbit/s |
| Degree of protection |
IP20 |
| Dimensions |
W80mm x H117mm x D109mm |
| Net Width (mm) |
80 mm |
| Material |
Plastic housing |
| Ambient air temperature for operation |
0...+60 °C |
| Manufacturer product status |
Commercialized |
| Equivalent to |

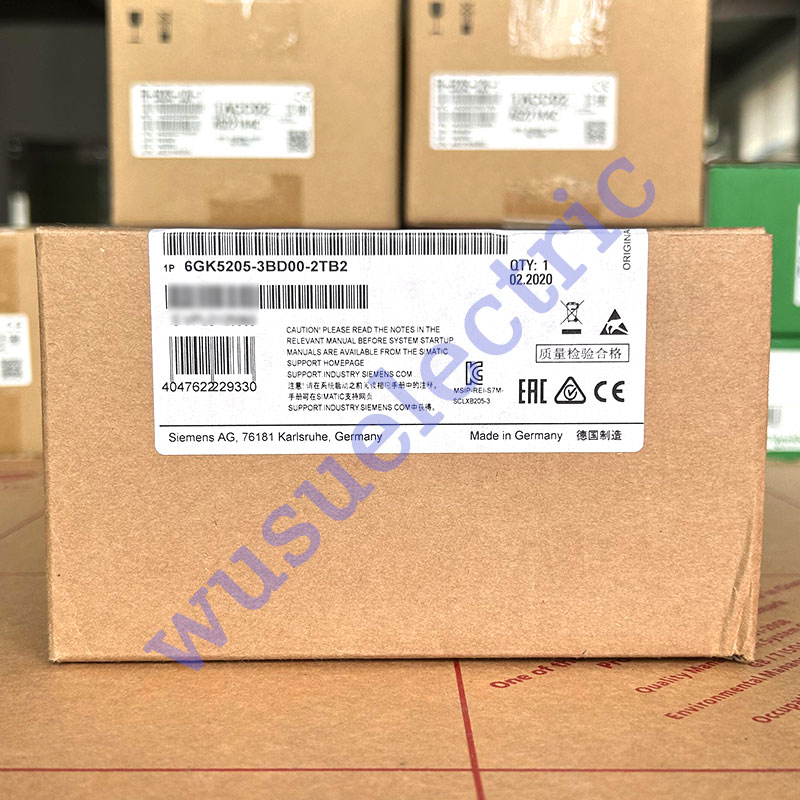

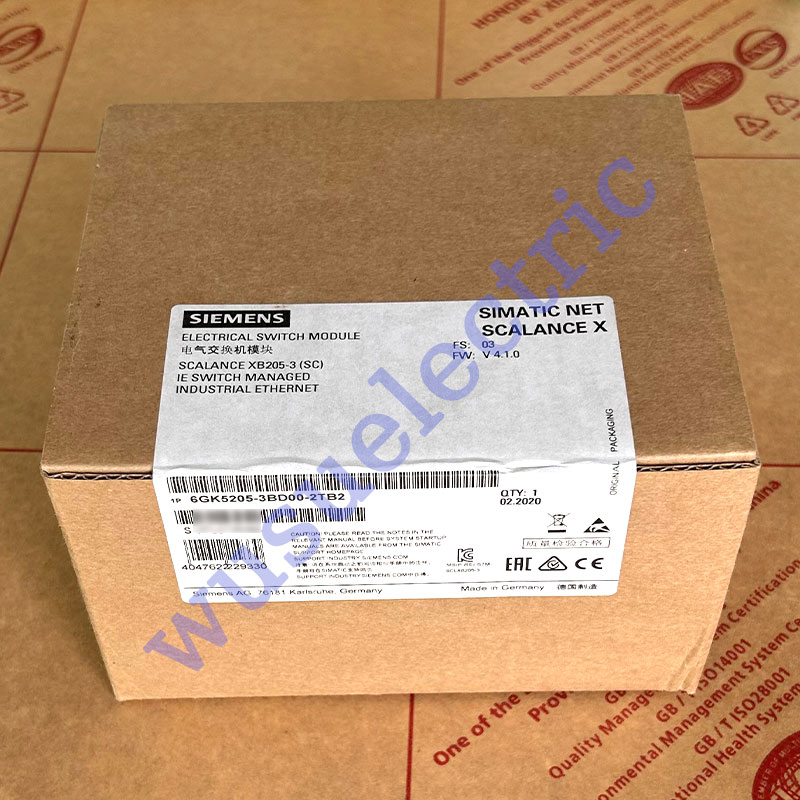

6GK52053BD002TB2 |
| EAN code |
4047622229330 |
| UPC code |
804766027543 |
| Compliant with standard(s) |
CE
C-Tick
KC
FM3611 Class 1 Divison 2 Group A B C D / T4 Class 1 Zone 2 Group IIC T4
EN60079-0 EN60079-15 II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
UL60950-1
CSA C22.2 No.60950-1
ANSI/ISA12.12.01
CSA C22.2 No.142-M1987
EN61000-6-2
EN61000-6-4 |
| Class |
PROFINET class B |
