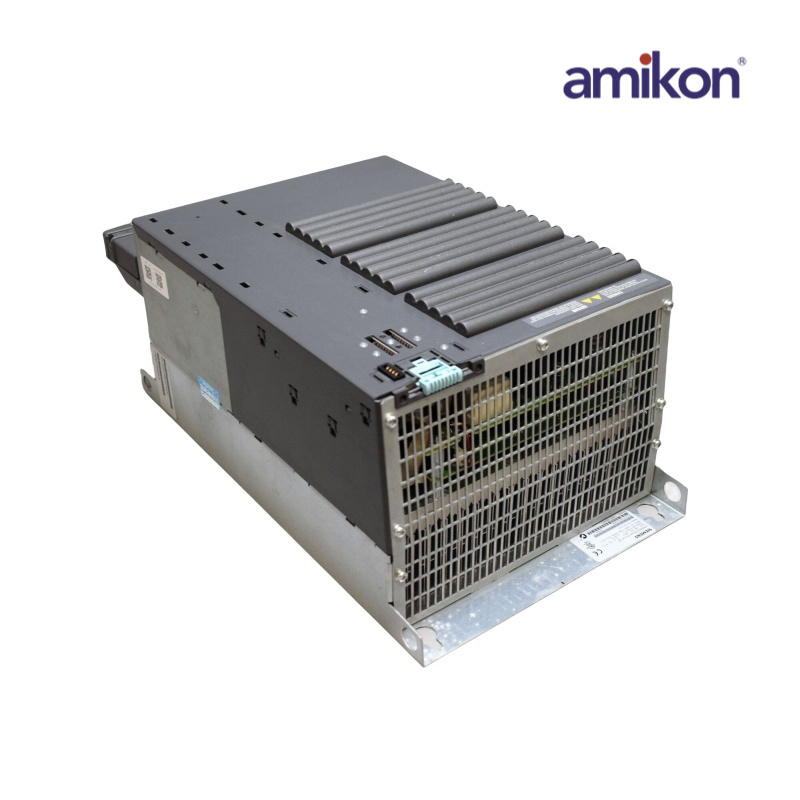

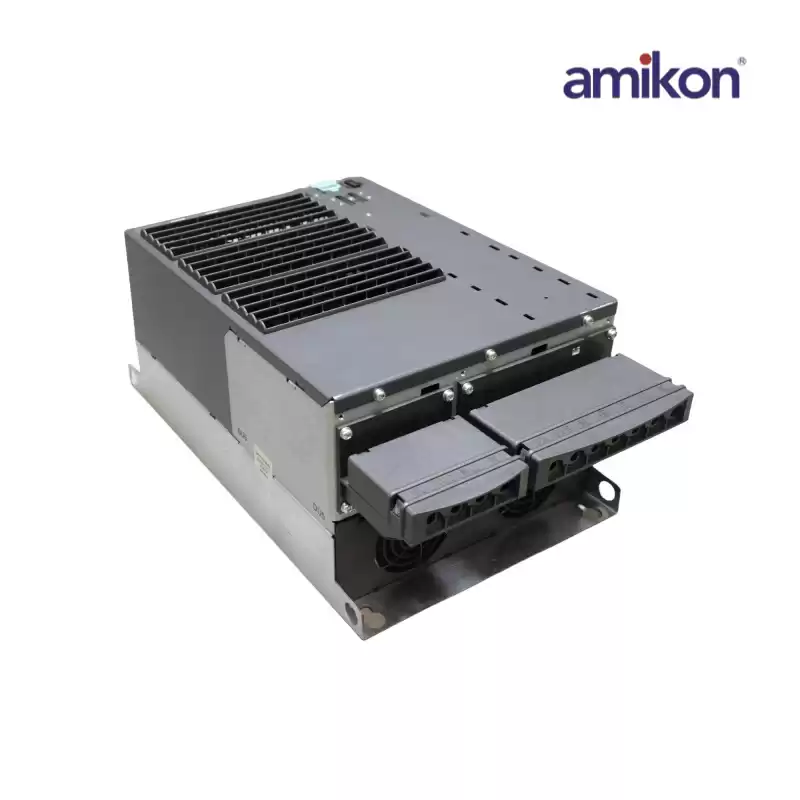

Siemens 6SL3224-0BE32-2AA0 PM240 Power Module

The 6SL3224-0BE32-2AA0 is Sinamics G120 Power Module.SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 75kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8.

Both product lines stand out with maximum quality and reliability. Moreover, their high degree of functionality offers optimum safety in case of power failures. Combined with other SITOP add-on modules, your system can be protected against all external impacts and precisely tailored to special safety.
