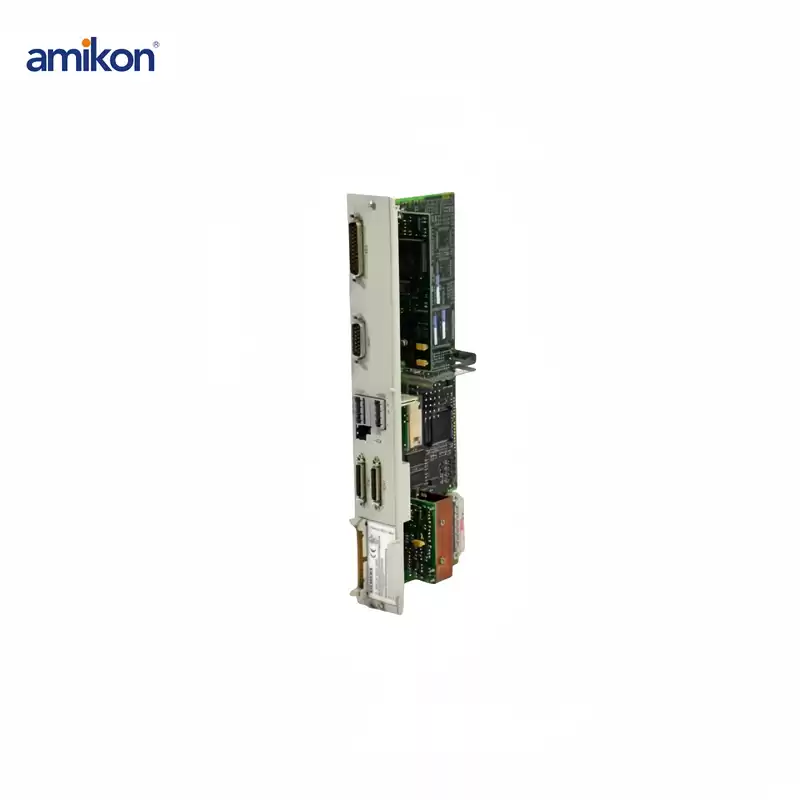

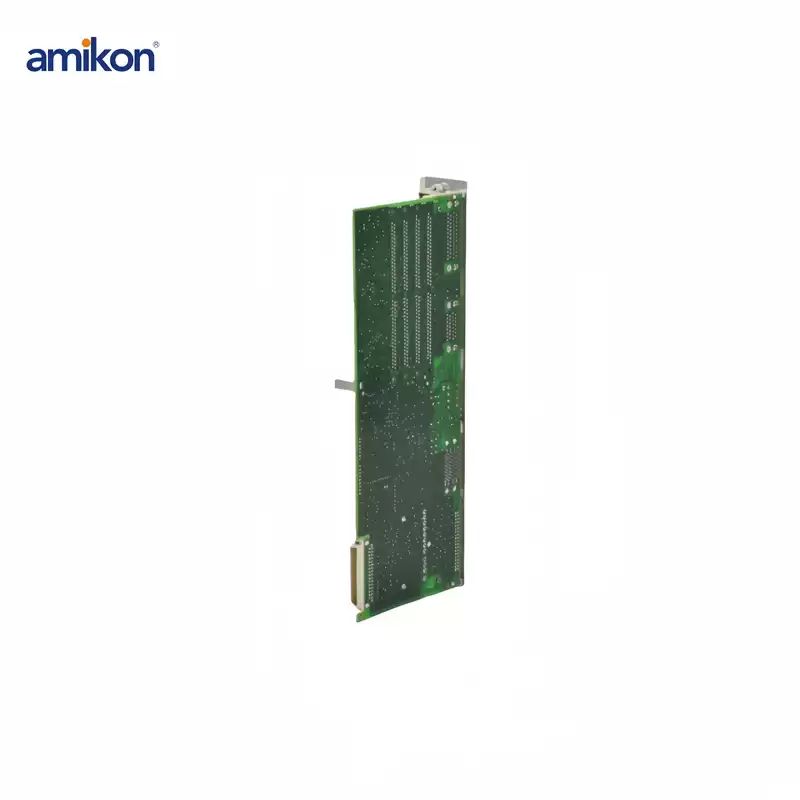

Siemens 6SN1118-0DG21-0AA1 CONTROL CIRCUIT BOARD
|
Siemens 6SN1118-0DG21-0AA1 CONTROL CIRCUIT BOARD
|
|
Part Number
|
6SN1118-0DG21-0AA1
|
Lead Time
|
IN STOCK
|
|
Technical Parameters
|
Model: 6SN1118-0DG21-0AA1
Type: Control Circuit Board
Series: Siemens SINUMERIK / SIMODRIVE
Control Functions: Motor control, data processing, and communication management
Communication Interfaces: PROFIBUS, PROFINET, and other Siemens proprietary interfaces
Input Voltage: 24 V DC
Rated Current: Varies depending on system configuration
Operating Temperature: 0°C to +50°C (32°F to +122°F)
Storage Temperature: -20°C to +70°C (-4°F to +158°F)
Cooling Method: Passive cooling (heat dissipation via control cabinet or forced air cooling)
Protection Rating: IP20, suitable for use in controlled industrial environments
Dimensions: Designed for installation in standard 19-inch racks or similar control enclosures
Weight: Approx. 1.2 kg
Mounting: Rack-mounted or panel-mounted, depending on application
Compatibility: Fully compatible with Siemens SINUMERIK CNC systems and SIMODRIVE drive units
Safety Features: Built-in fault detection, short-circuit protection, and thermal monitoring to ensure safe and reliable operation
|
Product Description
|
The Siemens 6SN1118-0DG21-0AA1 Control Circuit Board is an integral component of the Siemens SINUMERIK and SIMODRIVE systems, designed to handle complex motor control and communication tasks in industrial automation applications. This advanced control circuit board serves as the brain of the system, enabling precise coordination of motion control, data processing, and communication between various machine components.
|
|
Product family
|
Not available
|
Payment
|
T/T Bank Transfer
|
|
Product Lifecycle (PLM)
|
PM410:Product cancellation
|
Service
|
One-stop Service
|
|
PLM Effective Date
|
Product is cancelled since: 01.04.2015
|
Quality
|
Brand New & Original
|
|
Product Type
|
Servo Drive
|
Weight & dimensions
|
15.2x2.5x17.8cm
|
|
Brand Name
|
Siemens
|
12 kg
|
Don't hesitate, contact us now！
Email Skype Wechat Whatsapp
sales17@amikon.cn +86 189 65196563 Amikonplc +86 189 65196563
Key Features
High-Performance Control: Provides precise control of servo and spindle motors, enabling high-speed and high-precision motion control.
Modular Design: Easily integrates into Siemens SINUMERIK CNC systems and SIMODRIVE drive systems, allowing flexible configuration and scalability.
Reliable Communication: Facilitates smooth communication between motors, drives, and other system components, ensuring synchronized operation.
Advanced Diagnostics: Built-in diagnostics and monitoring features provide real-time system feedback, allowing for quick fault detection and troubleshooting.
Compact Form Factor: Optimized for space-saving installation in control cabinets, ensuring efficient use of available space.
