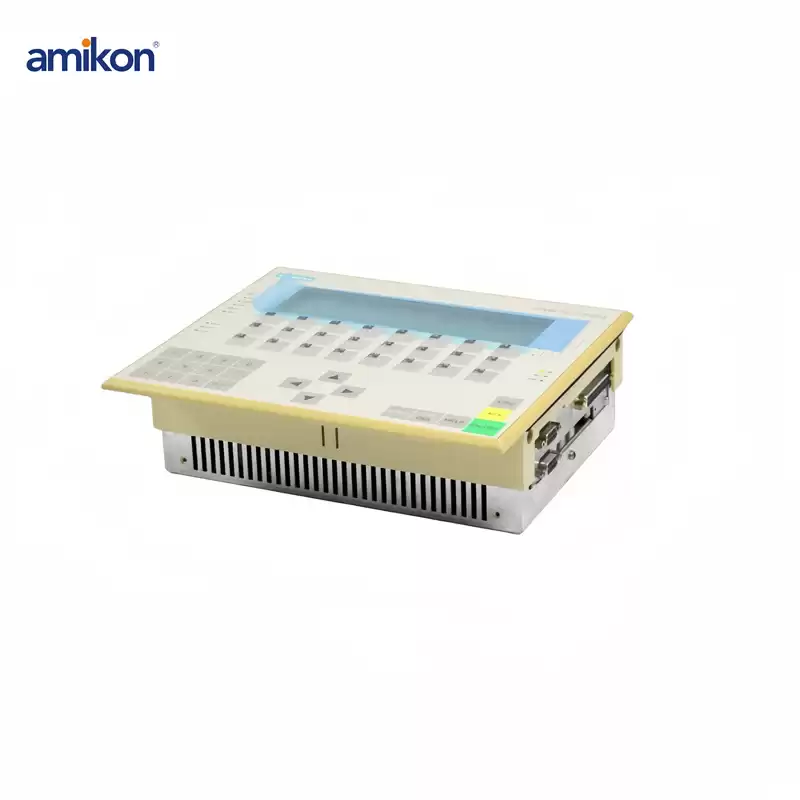

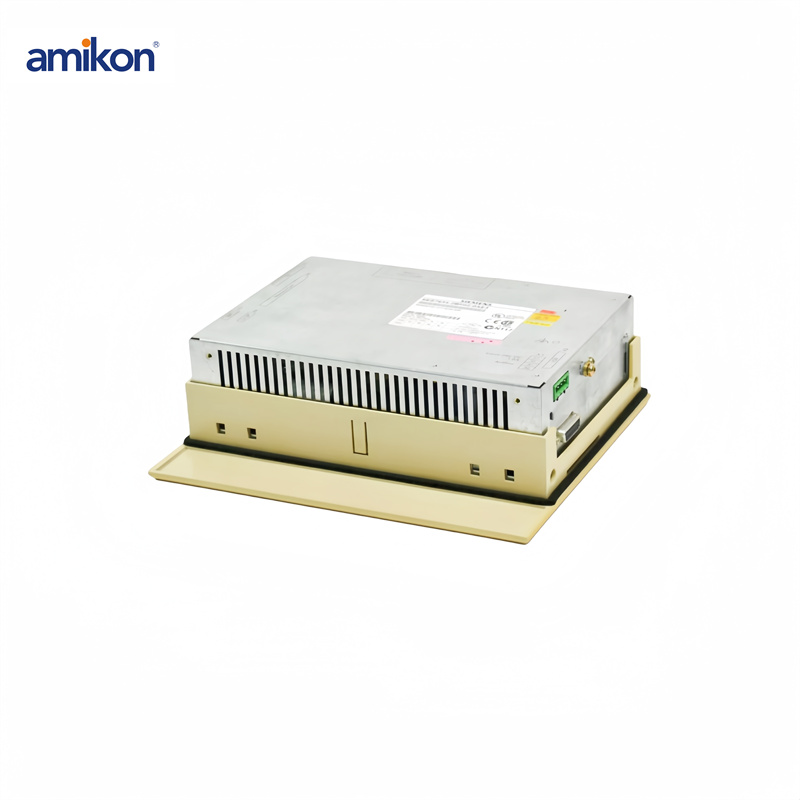

Siemens C7-634 6ES7634-2BF02-0AE3 Operation Panel
|
Siemens C7-634 6ES7634-2BF02-0AE3 Operation Panel
|
|
Part Number
|
C7-634 6ES7634-2BF02-0AE3
|
Lead Time
|
IN STOCK
|
|
Technical Parameters
|
Model: 6ES7634-2BF02-0AE3
Series: SIMATIC C7-634
Display: 4-line, 20-character LCD display
PLC: Integrated PLC with Siemens SIMATIC S7-300 series CPU functionality
Inputs/Outputs: 24 digital inputs, 16 digital outputs
Analog I/O: Supports additional analog I/O modules (optional)
Memory: 32 KB integrated memory for PLC programs
Communication Interfaces: PROFIBUS DP, MPI, and optional RS232/RS485 interfaces for communication with other systems
Operating Voltage: 24 V DC
Operating Temperature: 0°C to +55°C (32°F to +131°F)
Storage Temperature: -20°C to +70°C (-4°F to +158°F)
Protection Class: IP65 (front) for dust and water protection
Dimensions: 270 mm x 150 mm x 50 mm (W x H x D)
Mounting: Panel-mounted for easy installation in control panels or machine enclosures
Programming Software: Compatible with Siemens STEP 7 for PLC programming and configuration
Safety Features: Built-in emergency stop and fault detection for enhanced safety and reliability
|
Product Description
|
The Siemens C7-634 6ES7634-2BF02-0AE3 Operation Panel is a compact and versatile operator control unit designed for industrial automation systems. This operation panel combines a Programmable Logic Controller (PLC) with an HMI (Human Machine Interface), offering both control and visualization capabilities in a single unit. The C7-634 is part of the Siemens SIMATIC C7 series, known for its reliable and efficient performance in managing automation tasks such as machine control, process monitoring, and data visualization.
|
|
Product family
|
Not available
|
Payment
|
T/T Bank Transfer
|
|
Product Lifecycle (PLM)
|
PM410:Product cancellation
|
Service
|
One-stop Service
|
|
PLM Effective Date
|
Product is cancelled since: 01.04.2015
|
Quality
|
Brand New & Original
|
|
Product Type
|
Servo Drive
|
Weight & dimensions
|
15.2x2.5x17.8cm
|
|
Brand Name
|
Siemens
|
2 kg
|
Don't hesitate, contact us now！
Email Skype Wechat Whatsapp
sales17@amikon.cn +86 189 65196563 Amikonplc +86 189 65196563
Key Features
Integrated PLC and HMI: Combines PLC control with HMI functionality for a seamless, all-in-one automation solution.
User-Friendly Interface: Equipped with a clear display and intuitive operator panel for real-time control and monitoring.
Compact Design: Space-saving form factor, ideal for installation in control cabinets with limited space.
Robust Construction: Built to withstand harsh industrial environments with resistance to dust, vibration, and temperature extremes.
Real-Time Data Visualization: Allows operators to monitor machine performance and process data in real time.
Flexible Communication: Supports various communication protocols for easy integration into automation networks.
