Description
|

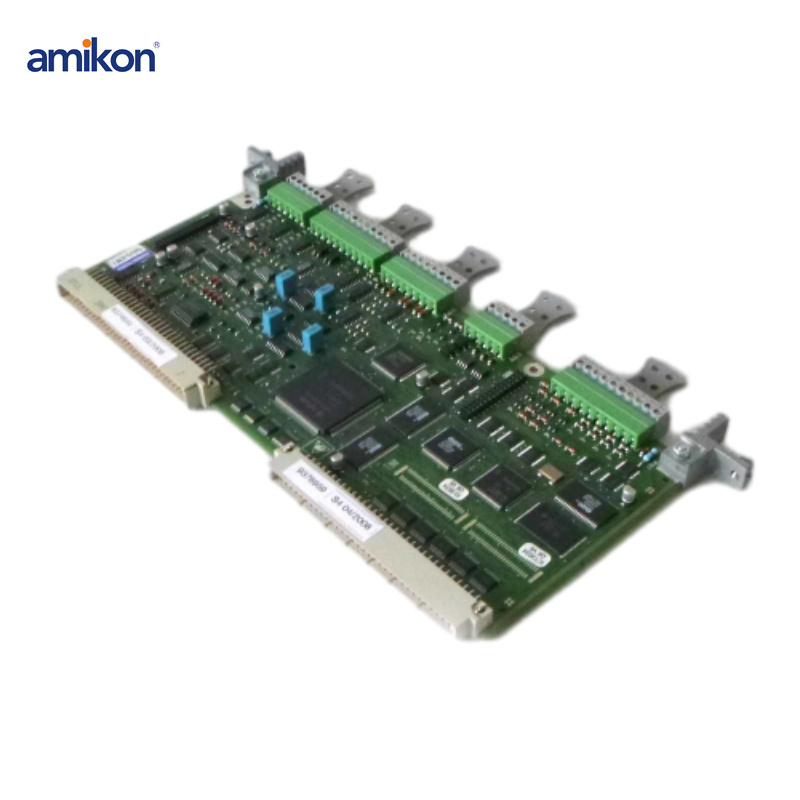

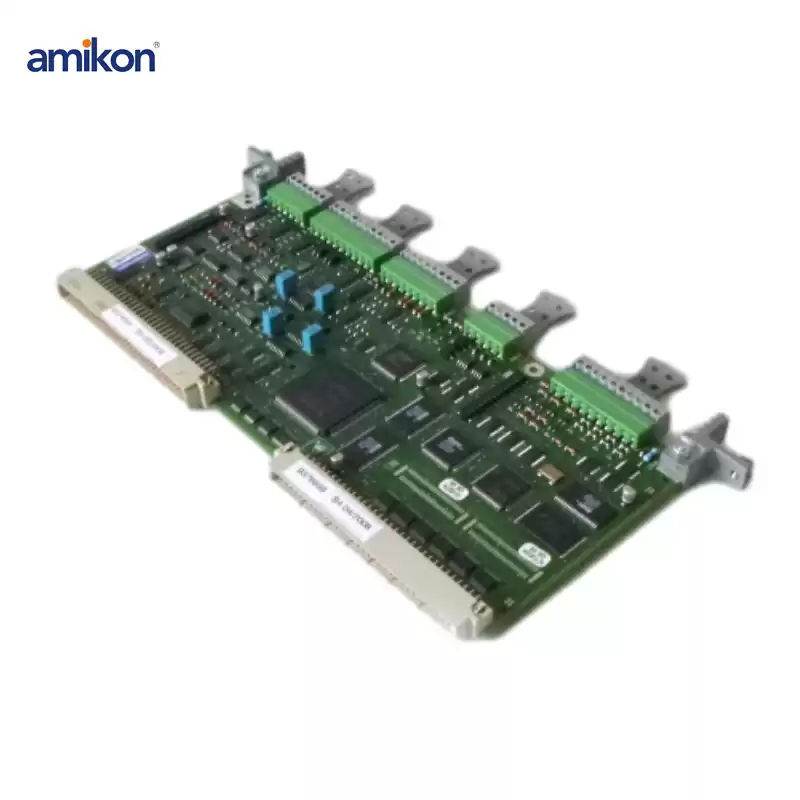

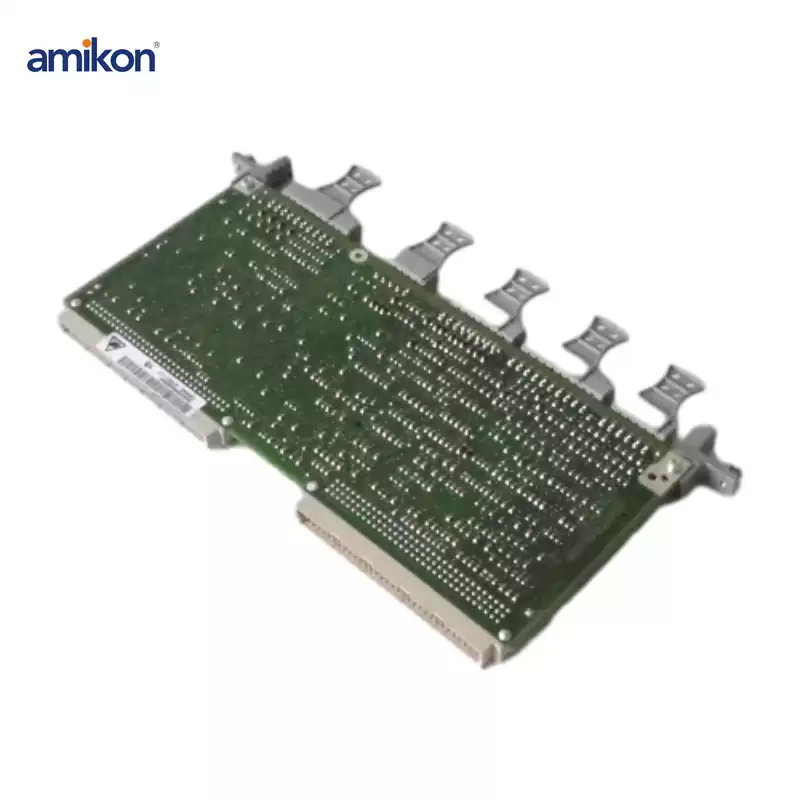

Siemens C98043-A7001-L1 MODULE
|
|
Part Number
|
C98043-A7001-L1
|
|
Manufacturer
|
Siemens
|
|
Description
|
SINAMICS DCM Base Drive panels are complete drive assemblies ready to be installed into
an enclosure. Base Drive Panels are fully digital, compact units which supply the armature
and field of variable-speed DC motors with rated armature currents from 15 Amps to 1200
Amps.
The motor field circuit can be supplied with DC currents of up to 40 Amps (current
levels depend on the armature rated current). Each Base Drive panel includes the following
components and factory installed converter options.
|
|
Quantity Available
|
In Stock
|
|
Weight
|
0.3 kg
|
|
Dimension
|
15.2x2.5x17.8cm
|
|
C98043-A7001-L1 Price
|
Request Price & Lead Time Onlineor Email us: sales17@amikon.cn
|
● Technical properties
– Fail-safe digital module
– 4 outputs, PM-switching (SIL3/Cat.4/PLe)
– Supply voltage L+
– Output current per output 2 A
– Source output (PM-switching)
– Suitable for solenoid valves, DC contactors and signal lamps
– Diagnostic display (DIAG red/green LED)
– Status display for each output (green LED)
– Fault display for each output (red LED)
– Diagnostics, e.g., short circuit/wire break/load voltage missing, channel-specific
– Channel-specific or passivation throughout the module
– Direct interconnection to F-DI possible (single channel: SIL1, two-channel: SIL3)
