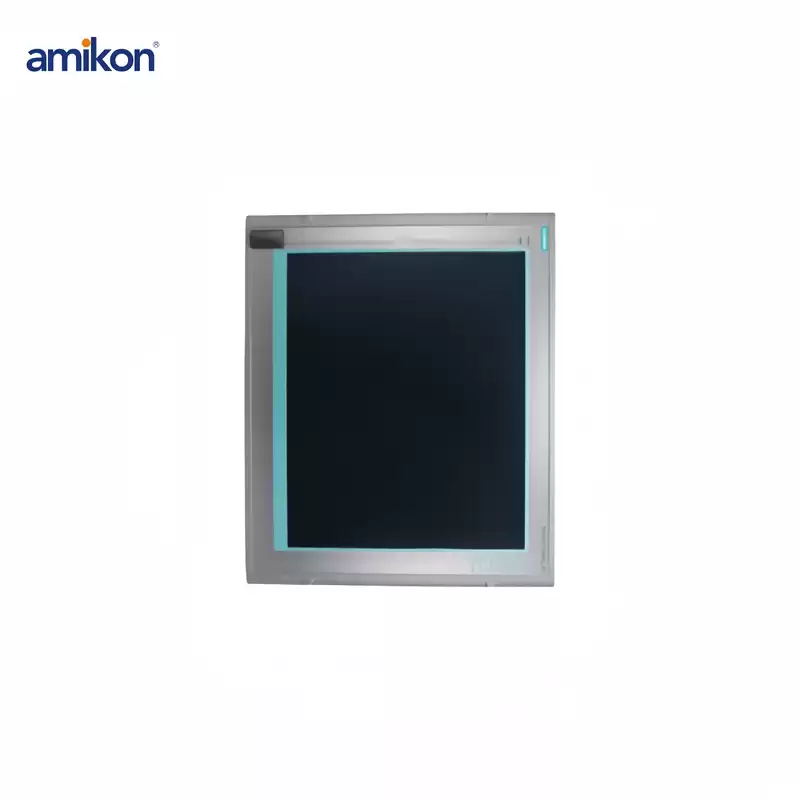

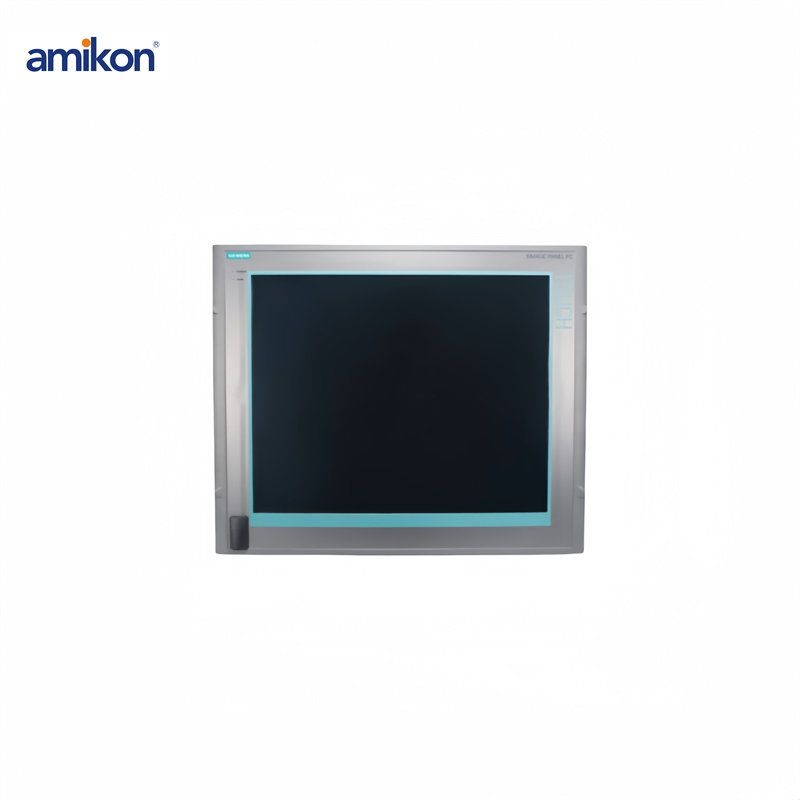

Siemens PC677B 6AV7875-0BC20-1AC0 Touch Screen Panel
|
Siemens PC677B 6AV7875-0BC20-1AC0 Touch Screen Panel
|
|
Part Number
|
PC677B 6AV7875-0BC20-1AC0
|
Lead Time
|
IN STOCK
|
|
Technical Parameters
|
Model: 6AV7875-0BC20-1AC0
Series: Siemens PC677B
Display Type: Touchscreen
Screen Size: 19 inches
Resolution: 1280 x 1024 pixels (SXGA)
Processor: Intel Core 2 Duo processor for high-performance computing
RAM: 2 GB (expandable)
Storage: 80 GB HDD (or SSD option)
Operating System: Windows XP Professional or Windows Embedded, depending on configuration
Touch Technology: Resistive touch
Interfaces: 2 x Ethernet ports, 4 x USB 2.0, RS232, and optional PROFIBUS/PROFINET support
Power Supply: 24 V DC
Operating Temperature: 0°C to +45°C (32°F to +113°F)
Storage Temperature: -20°C to +60°C (-4°F to +140°F)
Environmental Protection: Front panel rated IP65 for protection against dust and water
Dimensions: 483 mm x 385 mm x 140 mm (W x H x D)
Mounting Type: Panel-mounted for integration into control cabinets
|
Product Description
|
The Siemens PC677B 6AV7875-0BC20-1AC0 Touch Screen Panel is an industrial-grade HMI (Human Machine Interface) and panel PC designed for high-performance control and visualization in demanding automation environments. This versatile touch screen panel combines the functionality of a powerful PC with the ease of a user-friendly touch interface, making it ideal for monitoring and controlling complex processes in industries such as manufacturing, power generation, and process automation.
|
|
Product family
|
Not available
|
Payment
|
T/T Bank Transfer
|
|
Product Lifecycle (PLM)
|
PM410:Product cancellation
|
Service
|
One-stop Service
|
|
PLM Effective Date
|
Product is cancelled since: 01.04.2015
|
Quality
|
Brand New & Original
|
|
Product Type
|
Servo Drive
|
Weight & dimensions
|
15.2x2.5x17.8cm
|
|
Brand Name
|
Siemens
|
12 kg
|
Don't hesitate, contact us now！
Email Skype Wechat Whatsapp
sales17@amikon.cn +86 189 65196563 Amikonplc +86 189 65196563
Key Features
High-Performance PC Integration: Combines the power of a PC with an HMI for advanced control and monitoring in industrial applications.
Touchscreen Interface: Intuitive, responsive touch interface for easy operation and navigation of machine controls and process parameters.
Rugged Design: Engineered for industrial environments, with resistance to dust, shock, vibration, and temperature extremes.
High-Resolution Display: Clear and crisp visualization of process data and system diagnostics.
Flexible Communication: Supports a wide range of industrial communication protocols such as PROFIBUS, PROFINET, and Ethernet.
Scalable and Customizable: Can be configured to meet specific application needs, with customizable interfaces for diverse industrial operations.
