Products Detail:
|
Brand
|
SIEMENS
|
|
Part Number/Catalog No. 05701-A-0361
|
1XP8001-1/1024
|
|
Product Type
|
Rotary Encoder
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

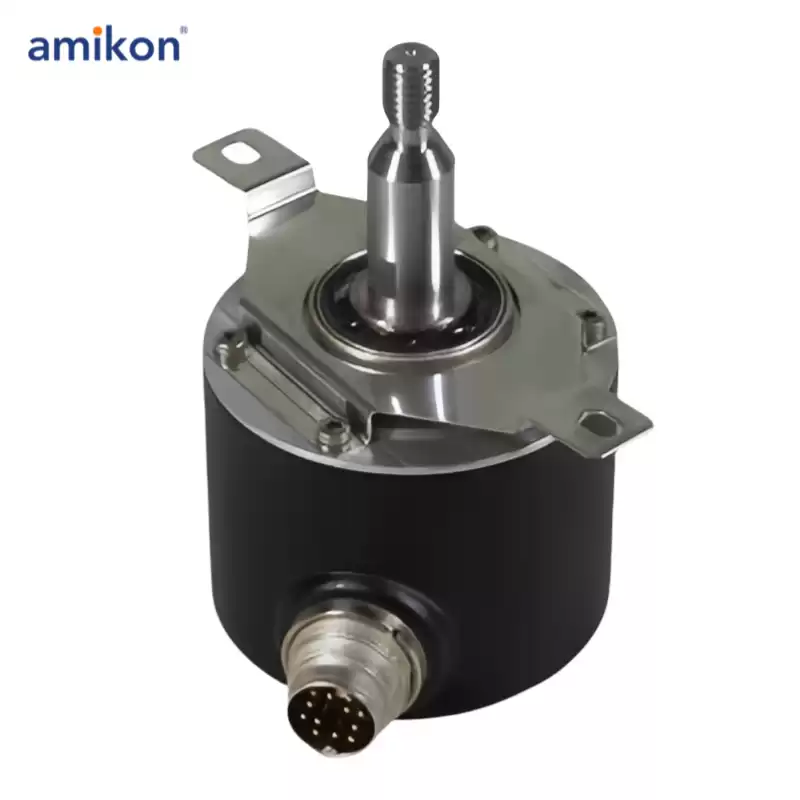

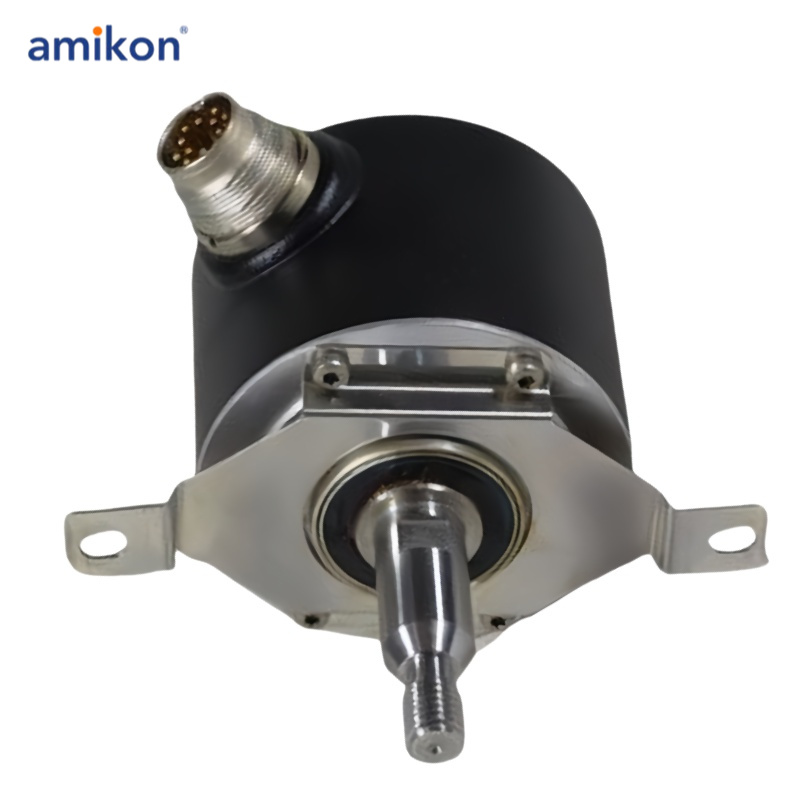

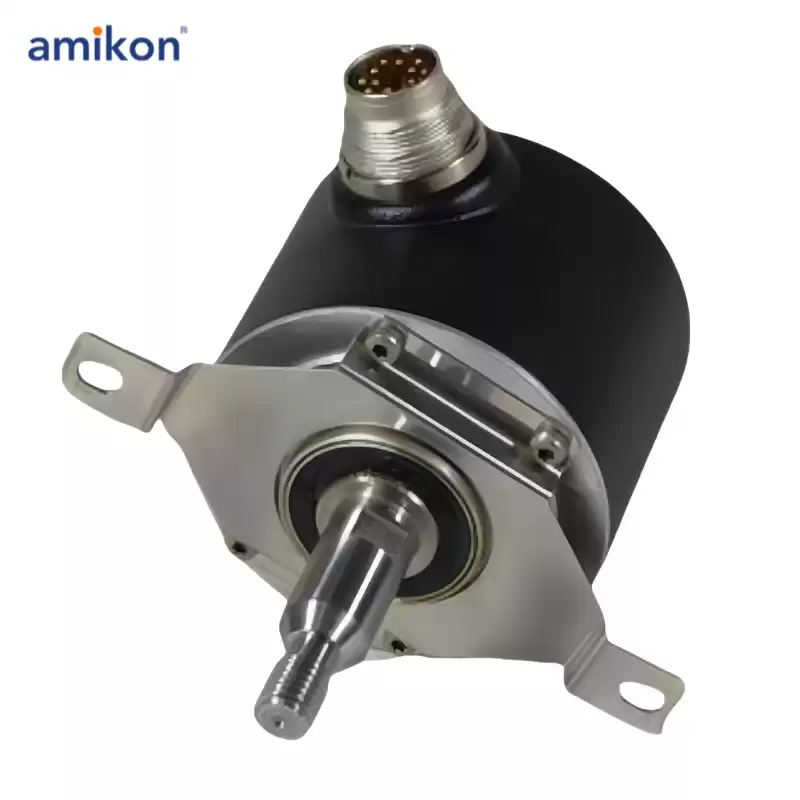

Manufacturer : Siemens
Product No. : 1XP8001-1/1024
Product type : Rotary Encoder
Supply : +10 V to +30 V (HTL)
Current input without load: 200mA
Maximum load current per output : 100mA
Resolution, Pulses per revolution : 1024
Pulse offset between the two outputs : 90 ± 20%
Output amplitude : U High> UB-3.5V, U Low< 3V
Minimum edge interval : 0.8uS at 160 KHz
Edge sttepness(without load or cable): t+, t-<200 ns
Maximum frequency : 160 kHz
Maximum speed : 9000 /MIN; 9000 rpm
Temperature range : -20 C to 100C
FAQ for 1XP8001-1/1024
1. What is the 1XP8001-1/1024?
The 1XP8001-1/1024 is typically a product identifier used for a specific component, such as a signal processing module, transducer, or sensor. The exact nature of the device can vary depending on the manufacturer and application. For detailed identification, it is best to refer to the product datasheet or manual specific to this model.
2. What are the main features of the 1XP8001-1/1024?
The 1XP8001-1/1024 is designed to offer precise measurement and signal conversion capabilities, often used in industrial automation, control systems, or monitoring applications. Its primary feature would include converting signals (such as analog signals) into digital outputs, offering enhanced control, monitoring, and protection capabilities.
3. What type of inputs does the 1XP8001-1/1024 support?
Depending on the specific product, the 1XP8001-1/1024 model could support various inputs, including voltage, current, or frequency-based signals. Please refer to the detailed product specifications for exact input types and measurement ranges.
