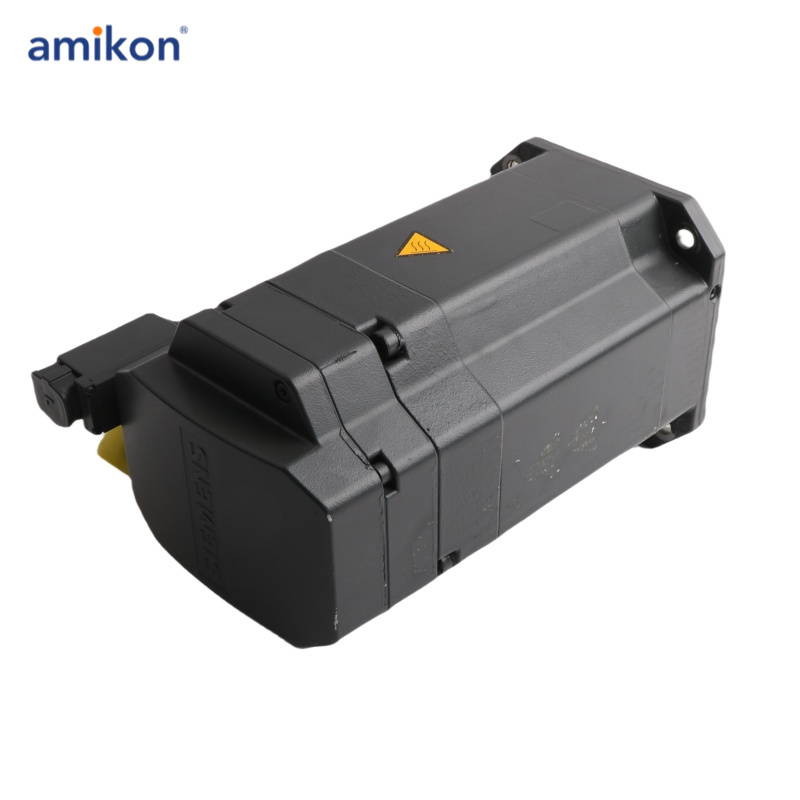

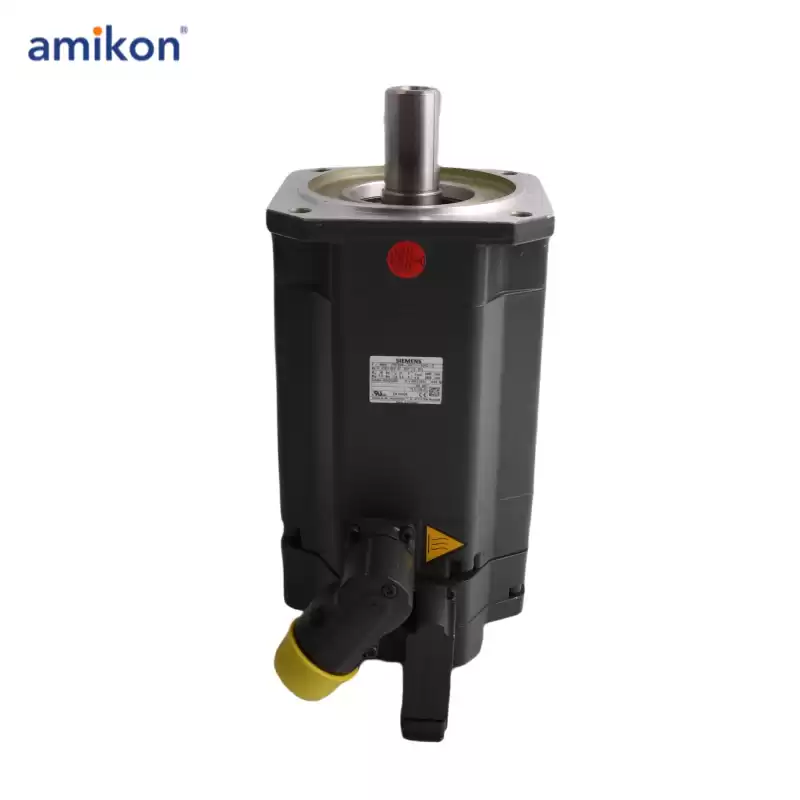

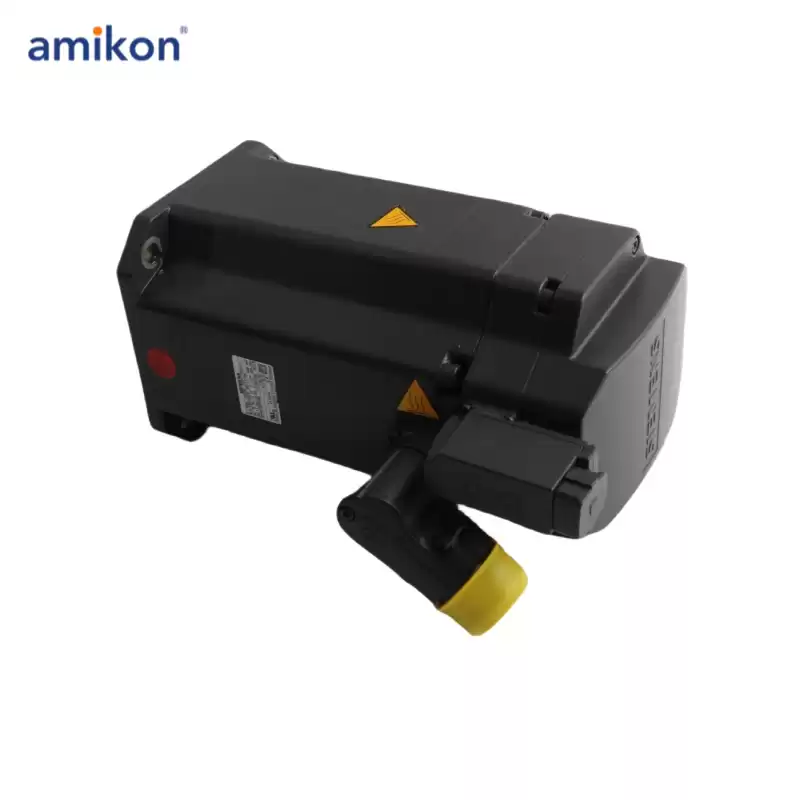

SIMOTICS S Synchronous servo motor 1FK7 Compact 0.85Nm, 100K, 6000rpm 0.38kW, Naturally cooled Power/signal connectors Connector can be rotated by 270° IMB 5 design (IM V1, IM V3) Flange 1, with KTY temperature sensor absolute encoder 512 S/R (encoder A-512); Derating 10% due to absolute encoder PLAIN SHAFT, TOLERANCE N; WITH HOLDING BRAKE DEGREE OF PROTECTION IP64
|
Product
|
|
Article Number (Market Facing Number)
|
1FK7022-5AK71-1HH0
|
|
Product Description
|
SIMOTICS S Synchronous servo motor 1FK7 Compact 0.85Nm, 100K, 6000rpm 0.38kW, Naturally cooled Power/signal connectors Connector can be rotated by 270° IMB 5 design (IM V1, IM V3) Flange 1, with KTY temperature sensor absolute encoder 512 S/R (encoder A-512); Derating 10% due to absolute encoder PLAIN SHAFT, TOLERANCE N; WITH HOLDING BRAKE DEGREE OF PROTECTION IP64
|
|
Product Lifecycle (PLM)
|
PM410:Product cancellation
|
|
PLM Effective Date
|
Product is cancelled since: 01.10.2020
|
|
Delivery information
|
|
Export Control Regulations
|
ECCN : N / AL : N
|
|
Net Weight (kg)
|
2,002 Kg
|
|
Package size unit of measure
|
Not available
|
|
Quantity Unit
|
1 Piece
|
|
Packaging Quantity
|
1
|
