Products Detail:
|
Brand
|
SIEMENS
|
|
Part Number/Catalog No. 05701-A-0361
|
6ES7321-1BH82-0AA0
|
|
Product Type
|
Digital input
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
SIMATIC S7, memory cards for S7-300, Short design, 5V Flash EPROM, 4 MB
|
Specification
|
Value
|
|
Supply Voltage
|
|
|
Rated value (DC)
|
24 V
|
|
Permissible range, lower limit (DC)
|
20.4 V
|
|
Permissible range, upper limit (DC)
|
28.8 V
|
|
Input Current
|
|
|
From load voltage L+ (without load), max.
|
25 mA
|
|
From backplane bus 5 V DC, max.
|
10 mA
|
|
Power Loss
|
3.5 W (typ.)
|
|
Digital Inputs
|
|
|
Number of digital inputs
|
16
|
|
Number of simultaneously controllable inputs
|
|
|
- Up to 40°C
|
Max. 16
|
|
- Up to 60°C
|
Max. 16
|
FAQ:

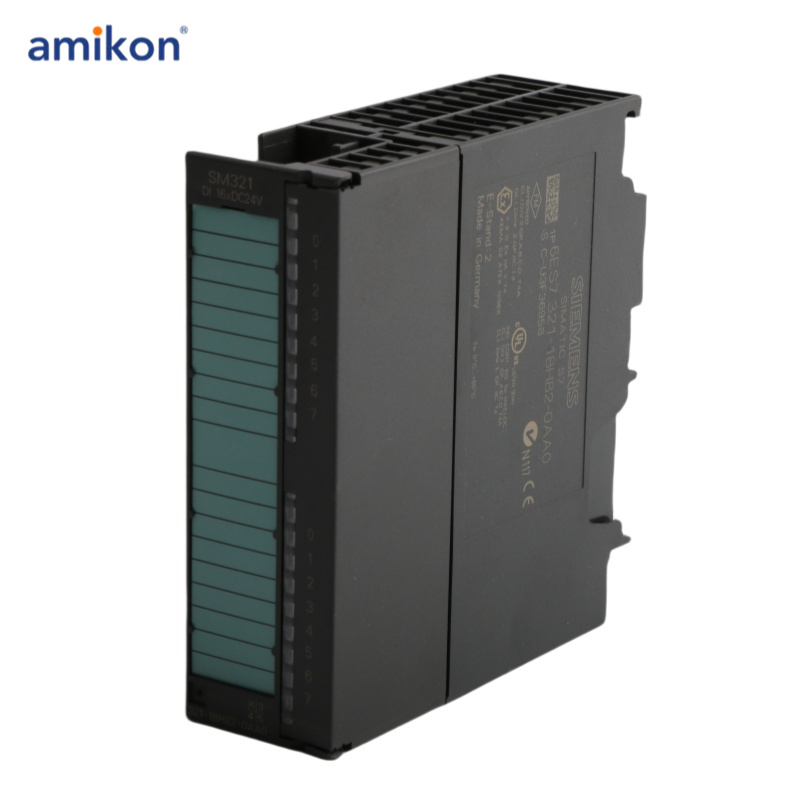

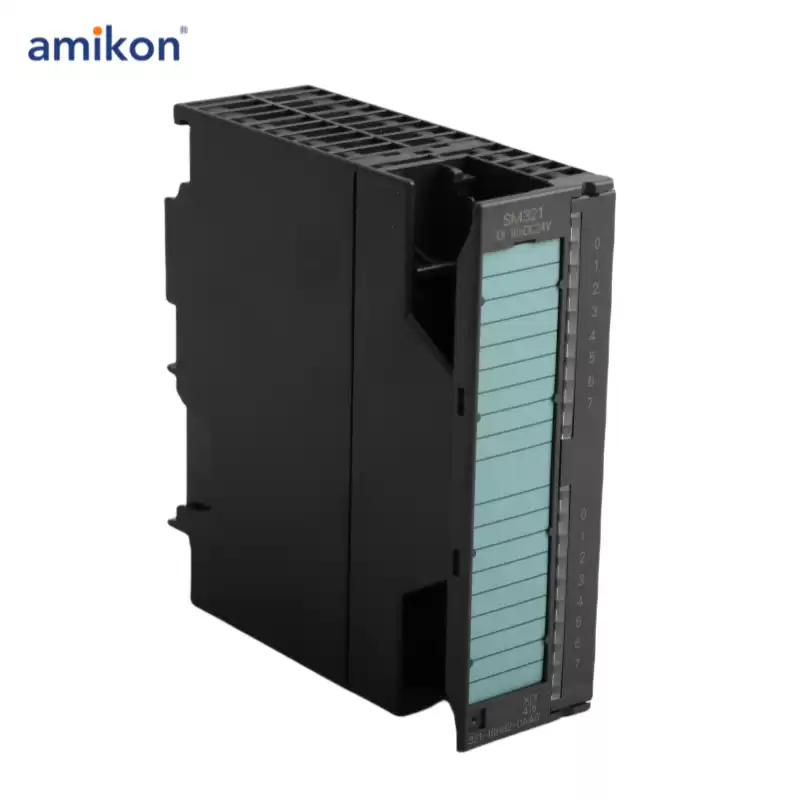

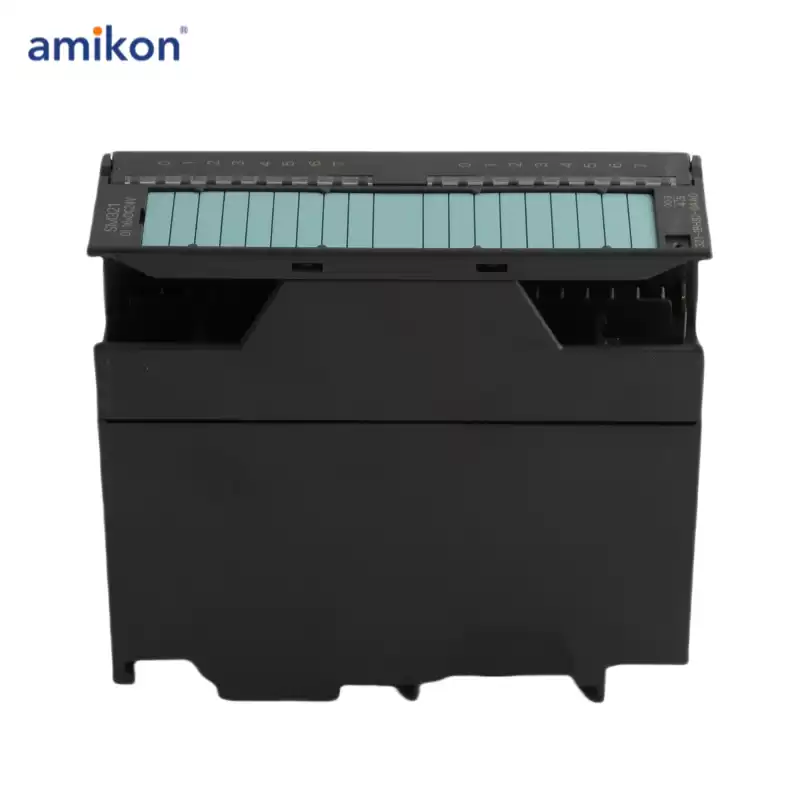

1. What is the Siemens 6ES7321-1BH82-0AA0 module?
The Siemens 6ES7321-1BH82-0AA0 is a digital input module designed for use with the Siemens S7-300 PLC series. It provides 16 digital inputs to the PLC system, allowing it to receive on/off signals from field devices like sensors, switches, and relays. This module is commonly used in industrial automation systems for monitoring and controlling processes.
2. What types of input signals can the 6ES7321-1BH82-0AA0 handle?
This module handles digital (on/off) signals. It is used to monitor devices that output binary signals, such as limit switches, push buttons, or proximity sensors. It cannot process analog signals; for those, a different module such as an analog input module is required.
3. How is the Siemens 6ES7321-1BH82-0AA0 module installed?
The 6ES7321-1BH82-0AA0 module is easily installed into the Siemens S7-300 PLC rack. It is designed to fit directly into the backplane and connects to the CPU and other modules via the backplane bus. The installation process involves connecting the module's terminals to the field devices and configuring it in the PLC programming environment.
