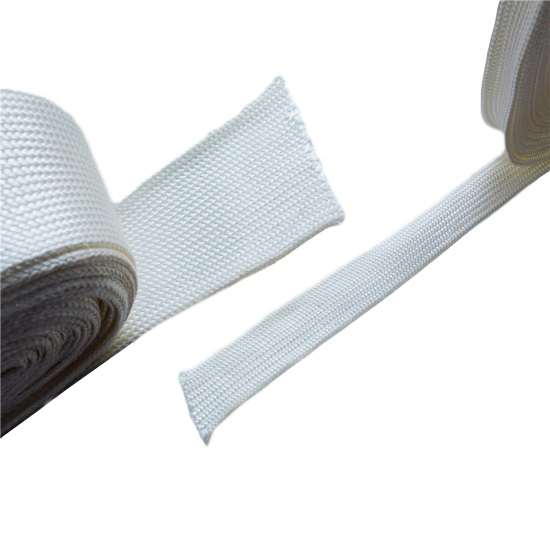

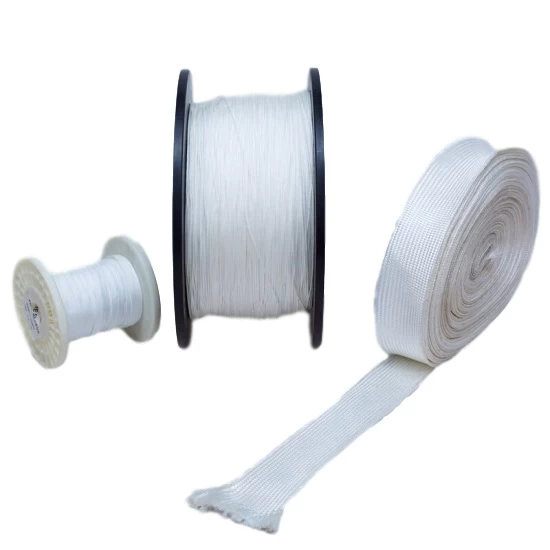

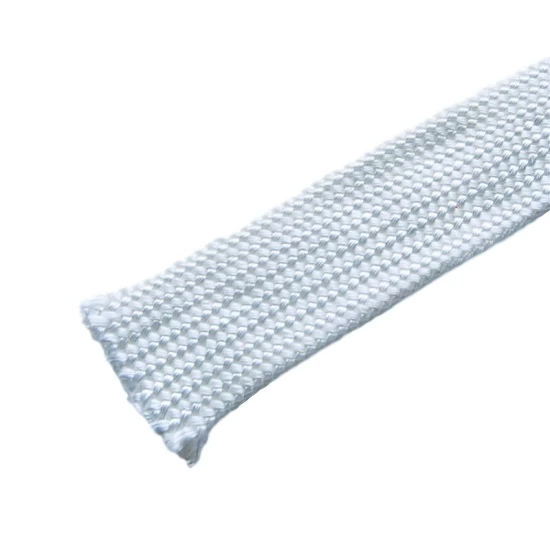

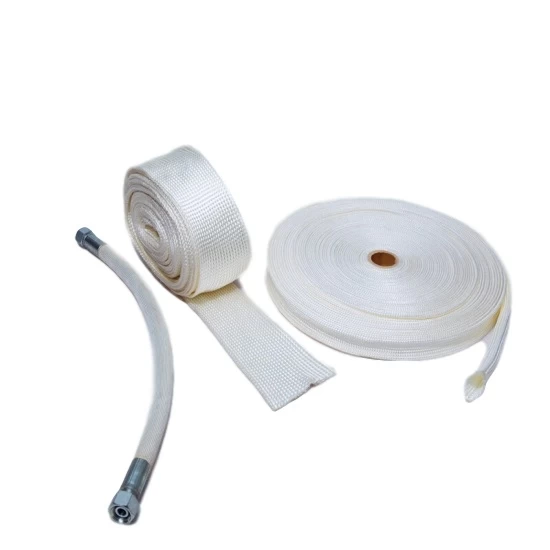

Silica Fiber Braided Sleeve
1.Product Introduction
ZBAO Silica Sleeve is braided by silica fiber, SiO2 content ≥96%, this fire sleeve is widely used in aerospace (gas turbine and rocket engines), metallurgical, nuclear power, electricity generation, petrochemical industries as the thermal protection material. Tube seals, high temperature gaskets, turbine exhaust pipe cover, boilers thermal insulation cover, thermocouple wire thermal insulation cover. It is excellent alternative to asbestos and ceramic based textiles.
2.Product Characters
|
Size/inner diameter
|
5mm-120mm
|
|
Color
|
White
|
|
SiO2 content
|
≥96%
|
|
Working temperature
|
Continuous use at 1000°C, short term exposure up to 1650°C.
|
|
Characters
|
Smooth, soft, extreme high tempt. & flame resistant, high insulation, low friction coefficient ,
chemical resistant，avoiding splashing of the molten iron and electric spark.
|
3.Standard Specifications
|
ZBAO Part No.
|
Inner Dia./mm
|
Wall Thickness(mm)
|
Weight(g/m)
|
Roll Length/m
|
|
ZBHS-S-3
|
3.0±1.0
|
0.3±0.2
|
10±5
|
30
|
|
ZBHS-S-5
|
5.0±1.0
|
0.7±0.2
|
12±5
|
30
|
|
ZBHS-S-8
|
8.0±1.6
|
1.0±0.2
|
25±5
|
30
|
|
ZBHS-S-10
|
10.0±2.0
|
1.2±0.2
|
45±5
|
30
|
|
ZBHS-S-12.5
|
12.5±2.0
|
1.2±0.2
|
50±5
|
30
|
|
ZBHS-S-15
|
15.0±3.0
|
1.2±0.2
|
65±10
|
30
|
|
ZBHS-S-20
|
20.0±4.0
|
1.2±0.2
|
85±10
|
30
|
|
ZBHS-S-25
|
25.0±5.0
|
1.2±0.2
|
90±10
|
30
|
|
ZBHS-S-30
|
30.0±6.0
|
1.2±0.2
|
125±13
|
30
|
|
ZBHS-S-35
|
35.0±7.0
|
1.2±0.2
|
140±14
|
30
|
|
ZBHS-S-40
|
40.0±10.0
|
1.2±0.2
|
170±17
|
30
|
|
ZBHS-S-50
|
50.0±10.0
|
1.2±0.2
|
180±20
|
30
|
|
ZBHS-S-64
|
64.0±10.0
|
1.2±0.2
|
255±26
|
30
|
|
ZBHS-S-76
|
76.0±10.0
|
1.2±0.2
|
305±31
|
30
|
|
ZBHS-S-80
|
80.0±10.0
|
1.2±0.2
|
320±32
|
30
|
|
ZBHS-S-86
|
86.0±10.0
|
1.2±0.2
|
345±35
|
30
|
|
ZBHS-S-90
|
90.0±10.0
|
1.2±0.2
|
360±36
|
30
|
|
ZBHS-S-96
|
96.0±10.0
|
1.2±0.2
|
380±38
|
30
|
|
ZBHS-S-120
|
120.0±10.0
|
1.2±0.2
|
480±48
|
30
|
