Main material ：
(0.4-0.75mm) high thermal conductivity silicone rubber fabric +(0.03-0.1mm)nichrome + (0.4-0.75mm) high thermal conductivity silicone rubber fabric
Physical and electrical characteristics ：
Voltage range ：0-600VAC/DC
Maximum operation temperature：220℃（Long term below 200℃ ）
Dielectric Strength ：≥1500VAC/MIN
Ambient temperature range：-52℃~250℃
Insulation Resistance：≥100MΩ
Thickness ：1.2mm/1.5mm or custom made
Specifications of the products：custom made
Color：Orange or custom made
Recommended power density：0.15~0.6W/cm²
Mechanical compressive strength ：100KG/cm²
Density of maximum power：0-2W/cm²
Tension of guide line：≥80N
Working life：5-10yeas
Tension of welding point：≥20N

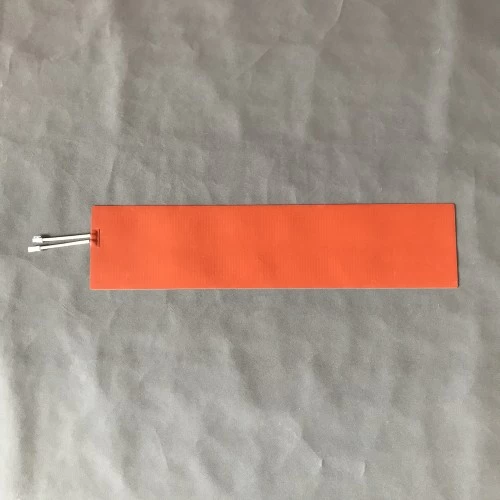

Silicone rubber heater is consist of high thermal conductivity silicone rubber fabric and nichrome. We adopt high temperature resistance, high thermal conductivity and high insulation and strength Silicone rubber, high temperature resistance fabric material as well as softness heating film made of metal heat wire. Each slice is combined by two glass fibre cloth and two silicone glass fibre cloth. Swift heating, unit temperature, high heat efficiency, user-friendly, safe and long life silicone rubber heating slice is the best choice.
