Description

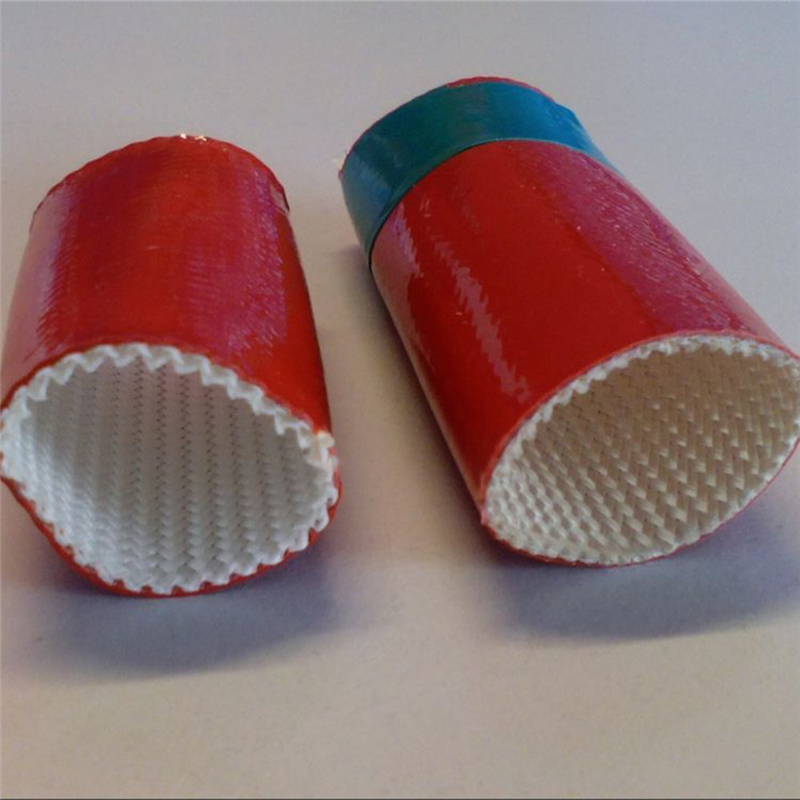

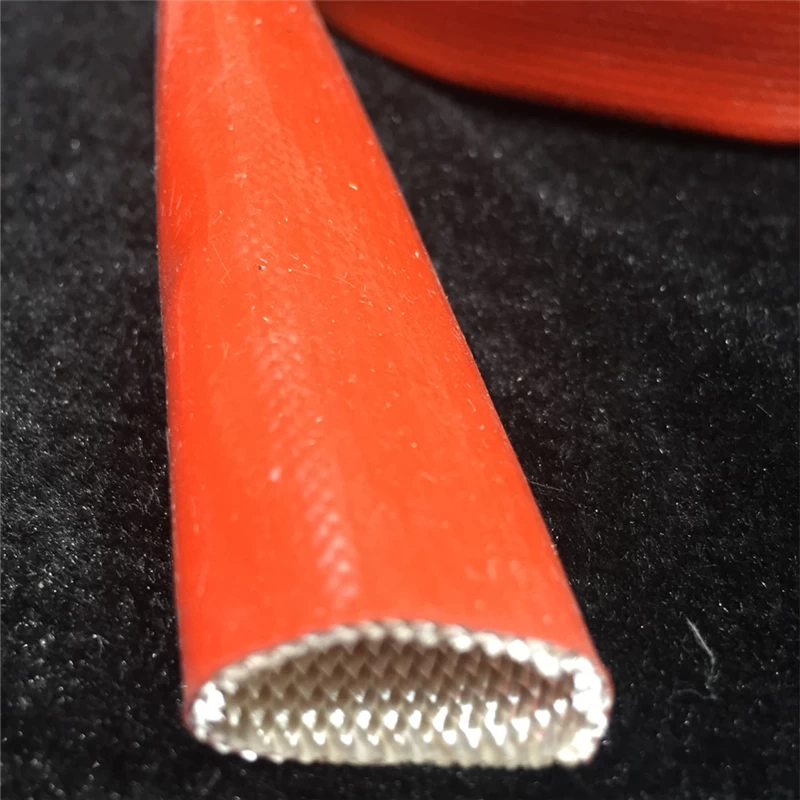

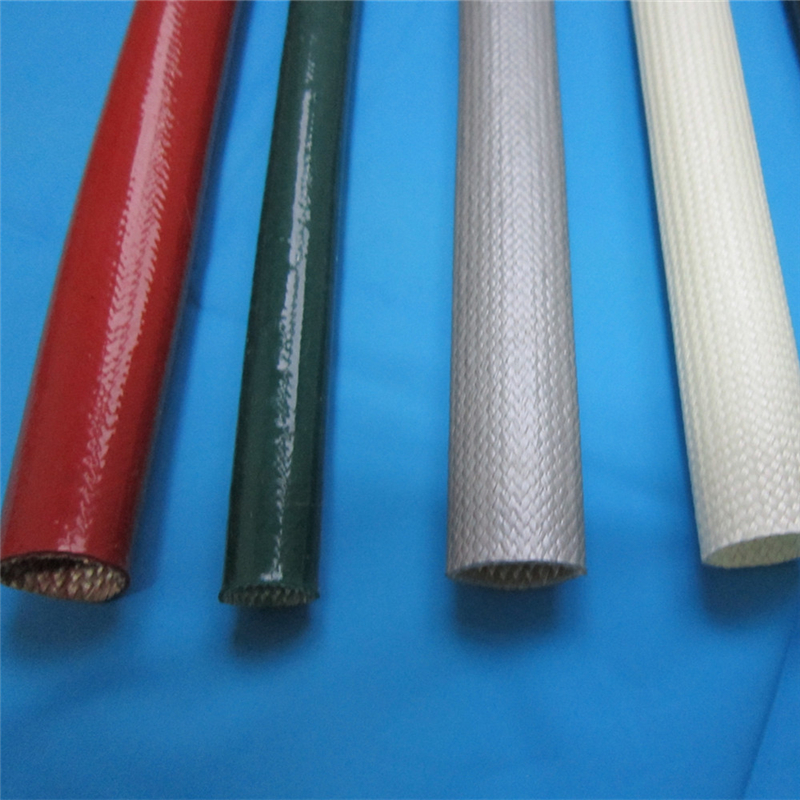

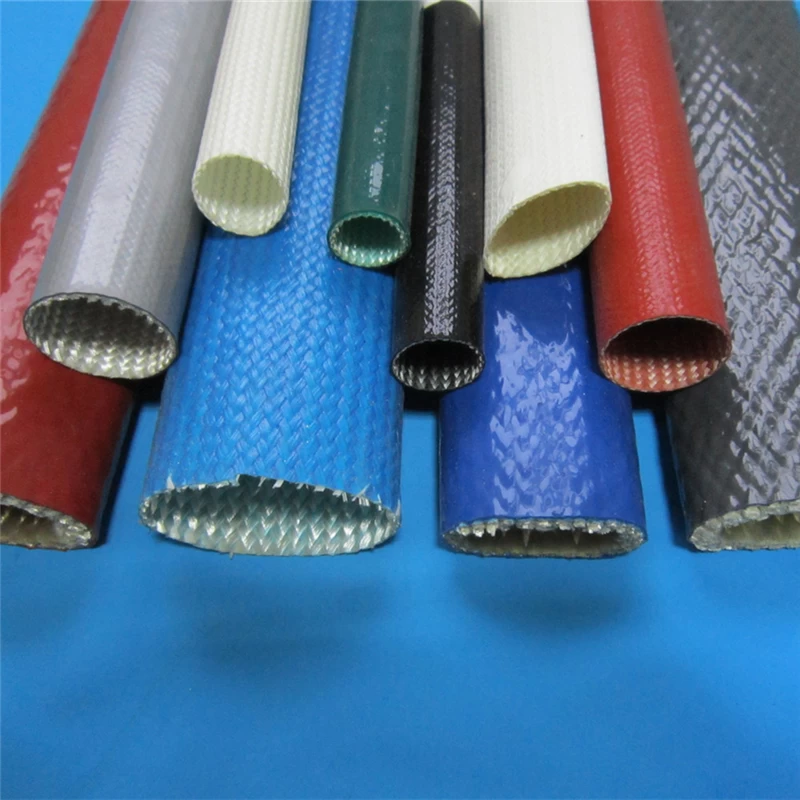

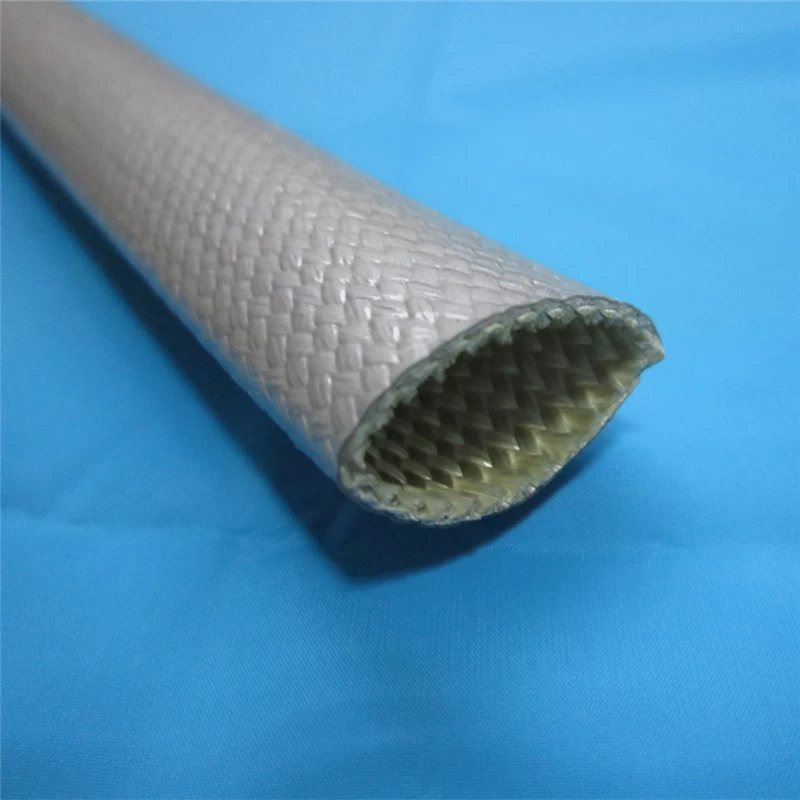

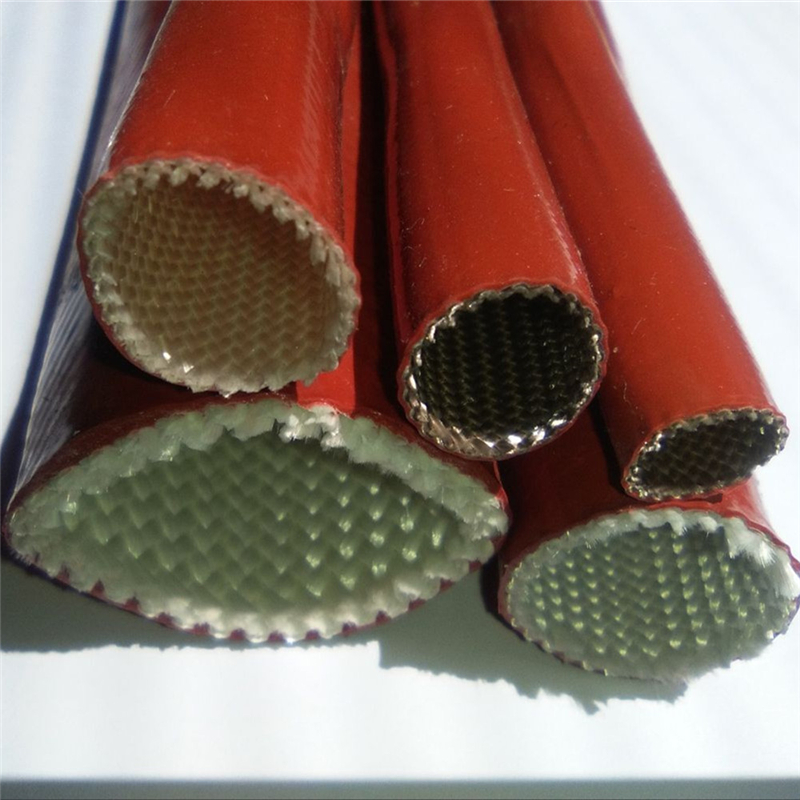

FGS-SC Silicone Rubber Coated Fiberglass Braided Sleeve, any color is ok. Used to protect transformer lead protection, motor coil leads, component isolation, and power supply wiring. Voltage 4KV.
Features
It is resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
Application
It provides excellent protection for industrial wires, cables, hoses (hydraulics), tube and pipes and also provides thermal insulation and personnel protection.
Specifications
|
DATASHEET
|
|
Part Number
|
Normal Inside diameter
|
Meter for spool
|
|
Inches
|
mm
|
Dash #
|
Meter
|
|
FGS-SC-6
|
1/4
|
6
|
-4
|
50
|
|
FGS-SC-8
|
5/16
|
8
|
-5
|
50
|
|
FGS-SC-10
|
3/8
|
10
|
-6
|
50
|
|
FGS-SC-11
|
7/16
|
11
|
-7
|
50
|
|
FGS-SC-13
|
1/2
|
13
|
-8
|
50
|
|
FGS-SC-16
|
5/8
|
16
|
-10
|
50
|
|
FGS-SC-19
|
3/4
|
19
|
-12
|
50
|
|
FGS-SC-22
|
7/8
|
22
|
-14
|
50
|
|
FGS-SC-25
|
1
|
25
|
-16
|
50
|
|
FGS-SC-29
|
1 1/8
|
29
|
-18
|
50
|
|
FGS-SC-32
|
1 1/4
|
32
|
-20
|
50
|
|
FGS-SC-35
|
1 3/8
|
35
|
-22
|
50
|
|
FGS-SC-38
|
1 1/2
|
38
|
-24
|
50
|
|
FGS-SC-41
|
1 5/8
|
41
|
-26
|
50
|
|
FGS-SC-44
|
1 3/4
|
44
|
-28
|
50
|
|
FGS-SC-48
|
1 7/8
|
48
|
-30
|
50
|
|
FGS-SC-51
|
2
|
51
|
-32
|
50
|
|
FGS-SC-57
|
2 1/4
|
57
|
36
|
50
|
|
FGS-SC-60
|
2 2/5
|
60
|
-38
|
50
|
|
FGS-SC-64
|
2 1/2
|
64
|
-40
|
50
|
|
FGS-SC-67
|
2 5/8
|
67
|
-42
|
50
|
|
FGS-SC-70
|
2 3/4
|
70
|
-44
|
50
|
|
FGS-SC-73
|
2 7/8
|
73
|
-46
|
50
|
|
FGS-SC-76
|
3
|
76
|
-48
|
50
|
|
FGS-SC-83
|
3 1/4
|
83
|
-52
|
50
|
|
FGS-SC-89
|
3 1/2
|
89
|
-56
|
50
|
|
FGS-SC-95
|
3 3/4
|
95
|
-60
|
50
|
|
FGS-SC-102
|
4
|
102
|
-64
|
50
|
|
FGS-SC-114
|
4 1/2
|
114
|
-72
|
50
|
|
FGS-SC-121
|
4 3/4
|
121
|
-76
|
50
|
|
FGS-SC-127
|
5
|
127
|
-80
|
50
|
|
FGS-SC-152
|
6
|
152
|
-96
|
50
|
|
Technical Datasheet
|
|
Material
|
Fiberglass, silicone rubber
|
|
Working temperature
|
-75℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+550℃
|
|
Standard Color
|
Red
|
|
MOQ
|
300 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness, length or packing upon request.
Part nymber will be followed "-1.0" for 1.0 mm thickness“-1.5” for 1.5 mm thickness, “-3” for 3 mm thickness
